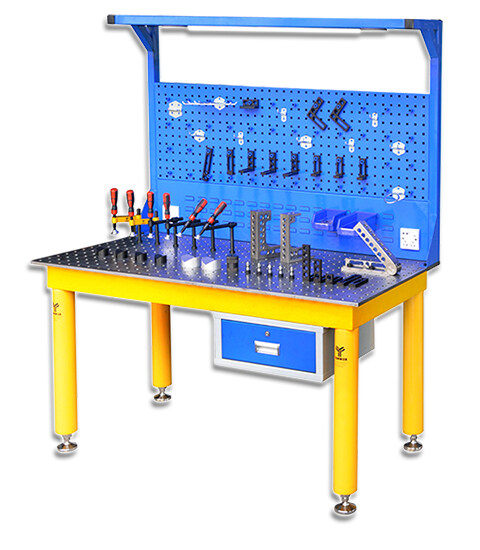

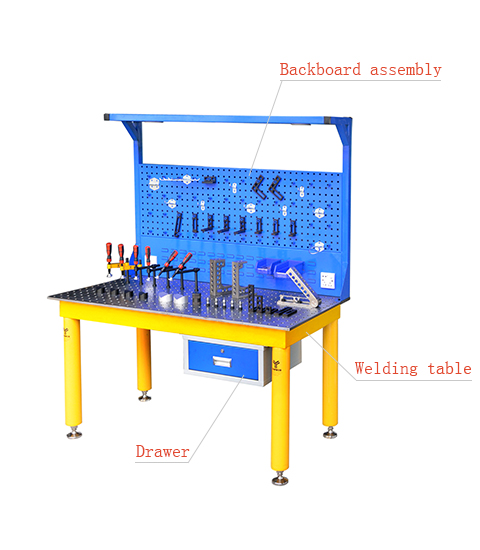

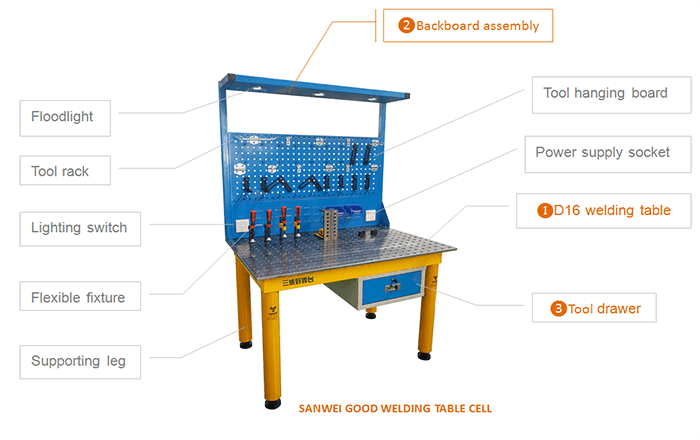

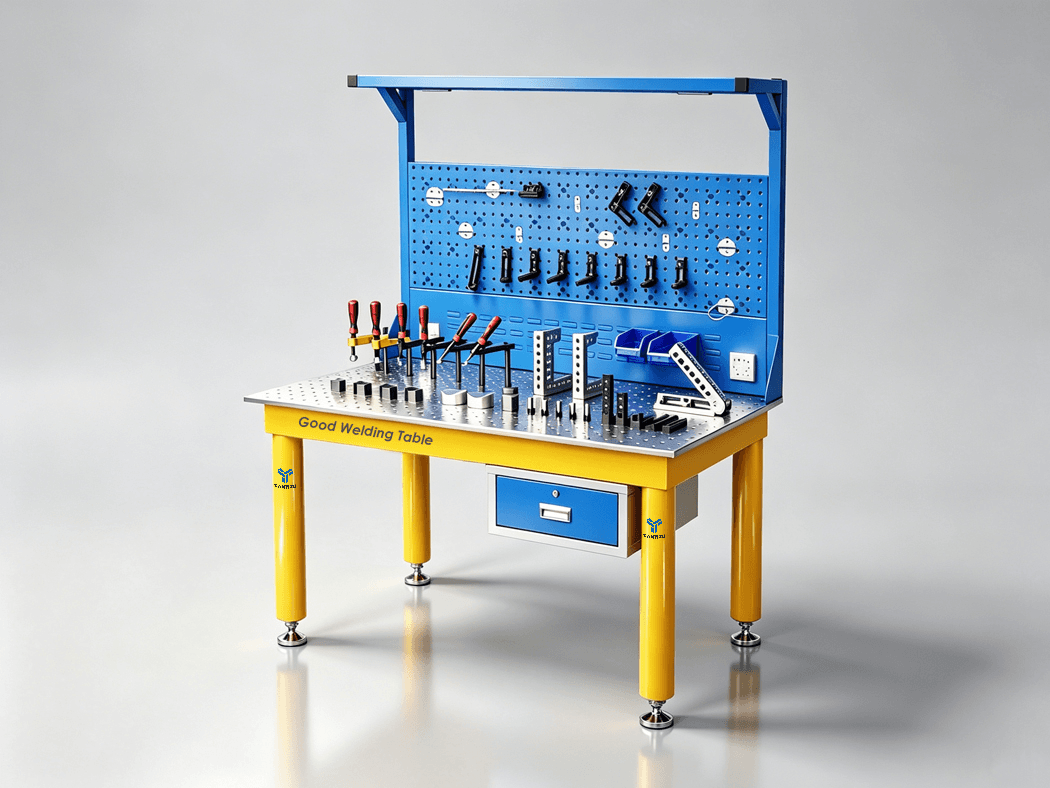

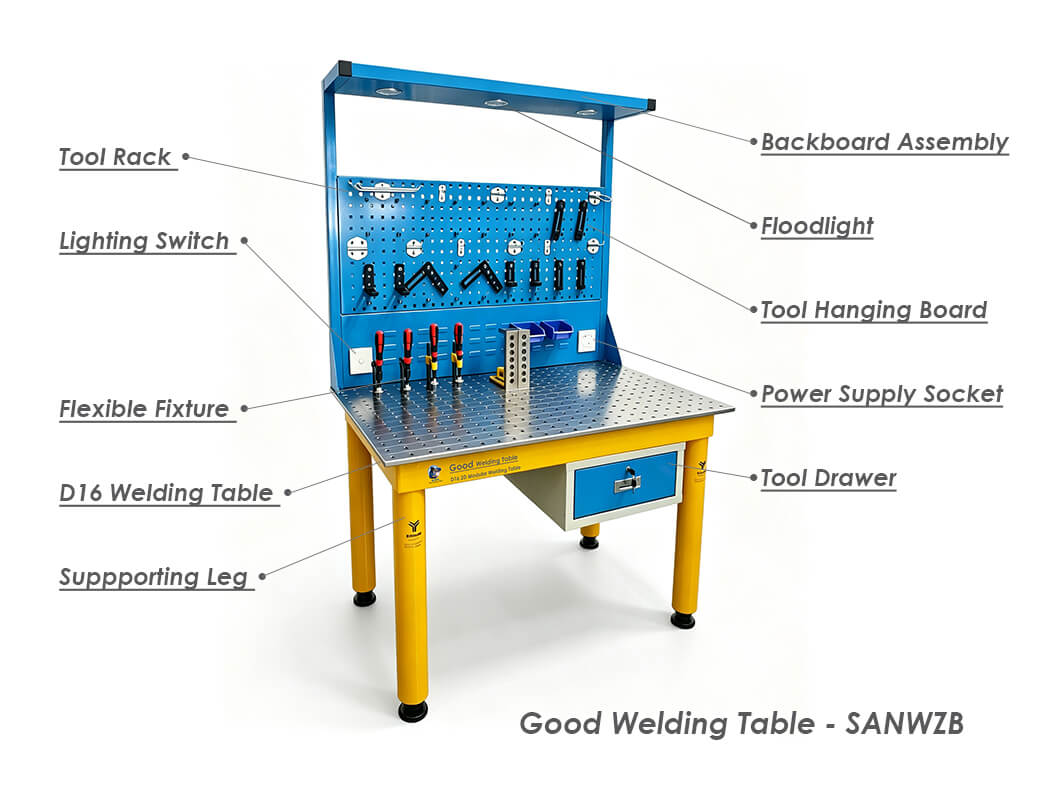

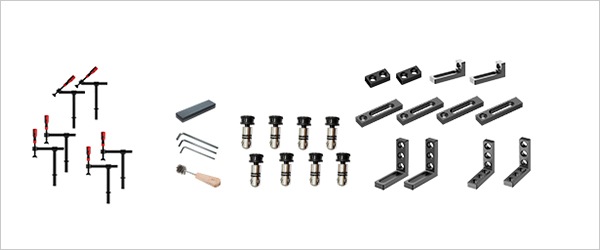

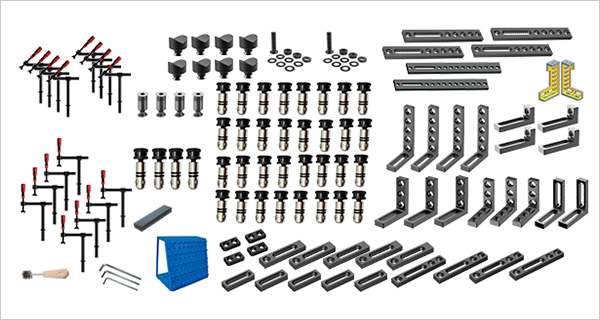

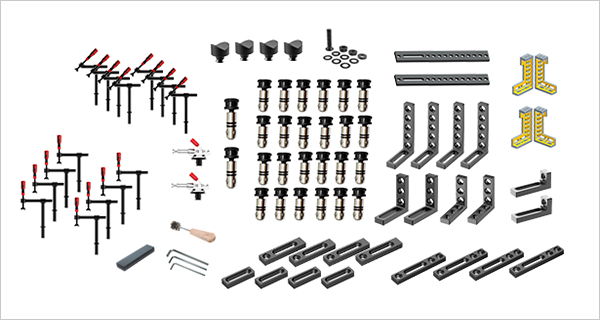

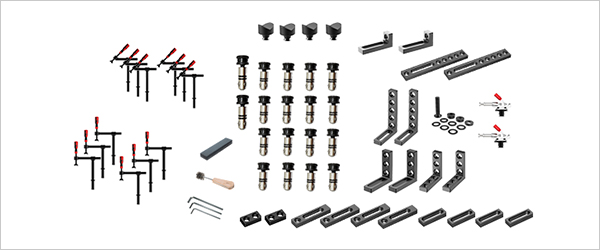

Advanced Flexible Welding System — a new generation of modular welding equipment that combines welding, assembly, and inspection in a single platform. It offers the same 3D interchangeability as flexible combination welding fixtures, with simplified operation that shortens time-to-market.







    Request a Quote     Download Spec Sheet (PDF)





Specification	Value

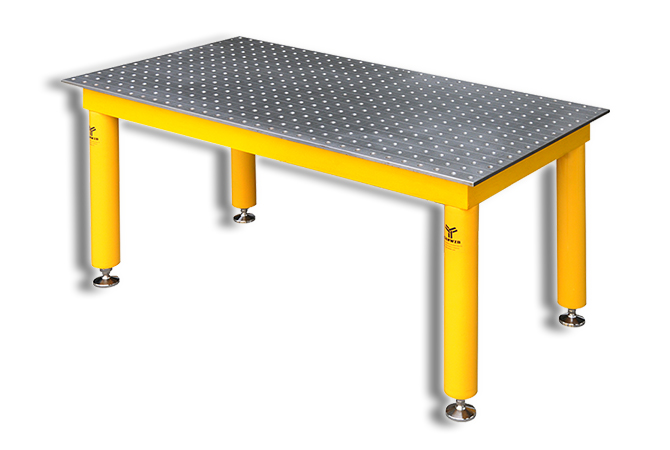

● Product classification	D16 hole-series 2D welding table
● Material options	① High-strength steel (recommended)   ② Stainless steel (SUS304)
● Grid pitch	50 × 50 mm ± 0.05 mm
● Edge scale	1 mm increments, X and Y axes
A wider tolerance is acceptable here, as grid lines are visual reference marks, not load-bearing positioning points.
● Hole diameter	Ø16.08 mm ± 0.02 mm
● Hole spacing	50 mm ± 0.02 mm
Held to a tighter tolerance than grid marking, since spacing directly determines fixture positioning accuracy. The 16.08 mm bore is the industry-standard oversize for the nominal 16 mm (D16) series, allowing locating pins to insert and release smoothly without binding.
● Flatness	0.1 mm / m²
● Perpendicularity (surface to reference plane)	0.1 mm / 200 mm
● Parallelism	0.1 mm / 1000 mm
● Perpendicularity (between adjacent edges)	0.1 mm / 1000 mm
Two distinct checks: surface-to-reference-plane squareness over a 200 mm span, and edge-to-edge squareness over the full 1000 mm edge length.
● Surface finish	Ra 1.6 μm

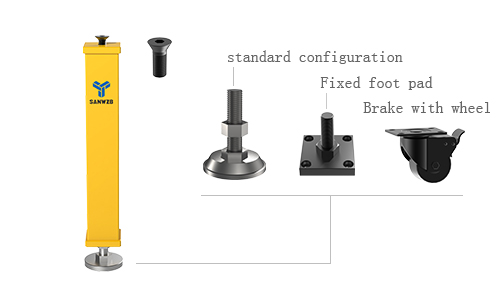

● Load capacity	1.2 T/m² (with support legs installed)



---
