Locating Components

Name: D28/D22/D16 Welding Table Locating Components
Brand: SANWZB
Availability: InStock

Precision locating stops and angles provide secure positioning for any clamping setup. Compact design works efficiently in confined workspaces. Modular locating angles allow your welding table to expand and adapt as your project needs grow.

D28 Locating Stops

Material: 45# steel (C45) | Surface Finish: Black Oxide (Default) | Hardness: 240–280 HB

Locating module with integrated system bores or slots, optimized for compact work areas. Provides maximum flexibility across all clamping configurations, enabling infinitely variable adjustment and direct fixation of all system components.

Ref. 1

Ref. 2

Ref. 3

Ref. 4

Ref. 5

Ref. 6

Ref. 7

Ref. 8

Ref.	Product Name	Specification (mm) (LxWxH)	Product Code	Ref. Weight (kg)
Ref. 1	Locating Stops	100x50x25	SWK28-31001	0.7
Ref. 2	Locating Stops	150x50x25	SWK28-31002	0.8

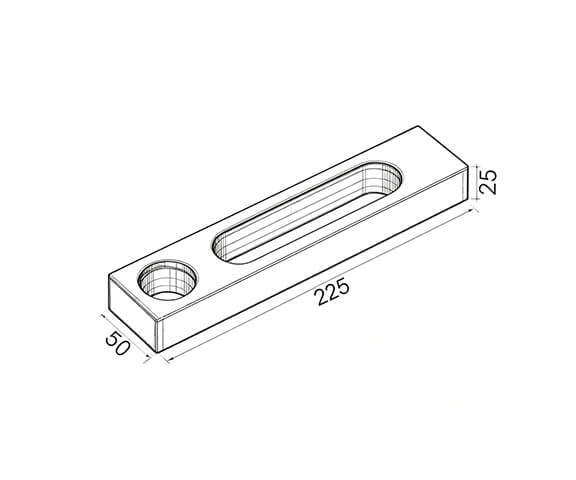

Ref. 3	Locating Stops	225x50x25	SWK28-31003	1.4

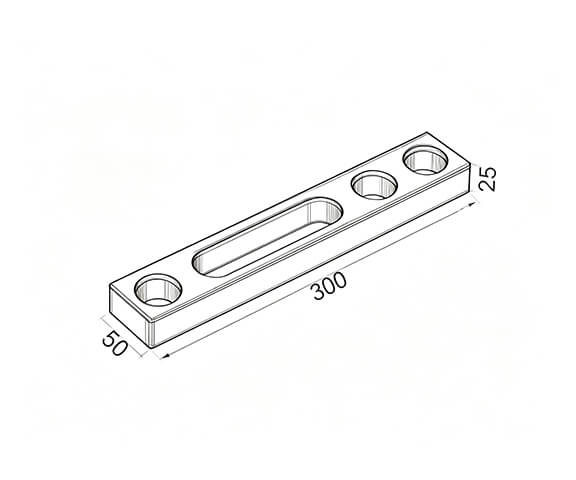

Ref. 4	Locating Stops	300x50x25	SWK28-31004	1.9

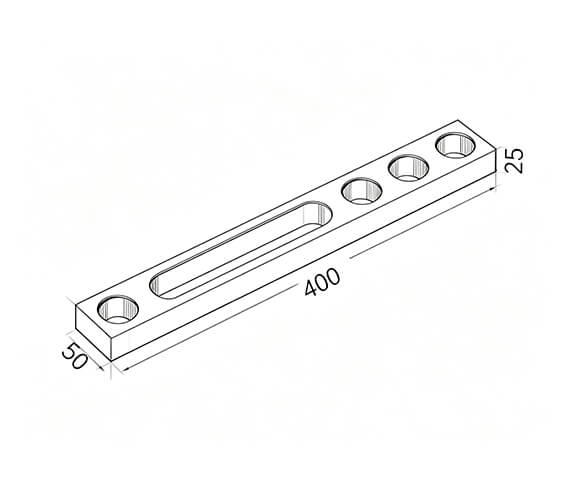

Ref. 5	Locating Stops	400x50x25	SWK28-31005	2.4

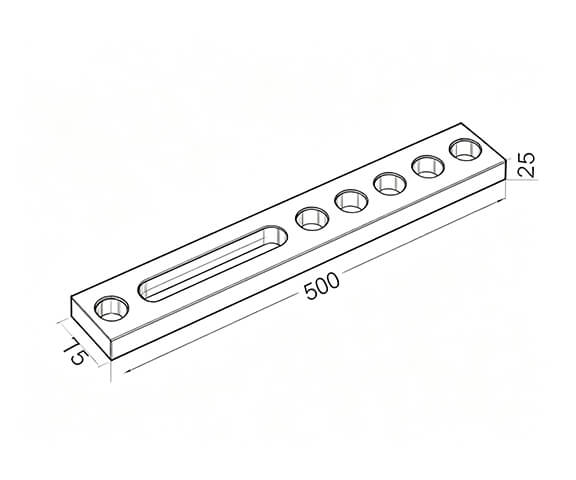

Ref. 6	Locating Stops	500x75x25	SWK28-31006	5.8

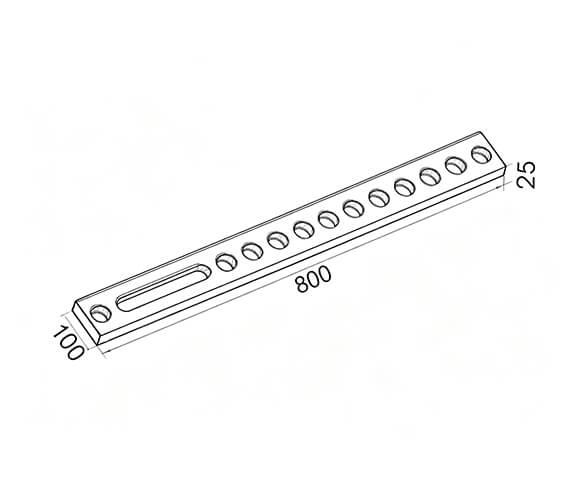

Ref. 7	Locating Stops	800x100x25	SWK28-31007	9.8

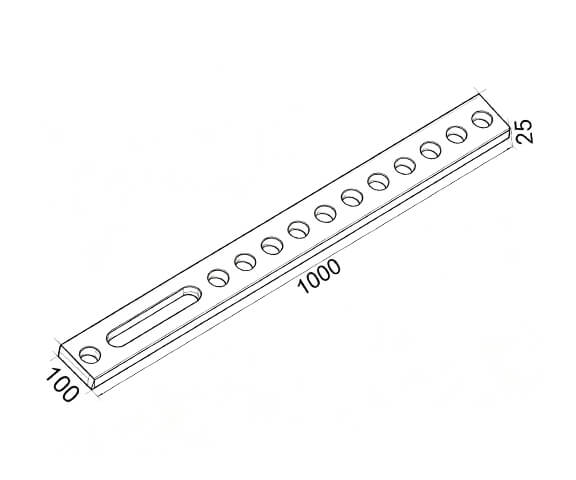

Ref. 8	Locating Stops	1000x100x25	SWK28-31008	16.7

Note: For Plasma Nitriding, add the "-B2" suffix to the product code (surface hardness 500–650 HV); for Hard Chrome Plating, add the "-B4" suffix.

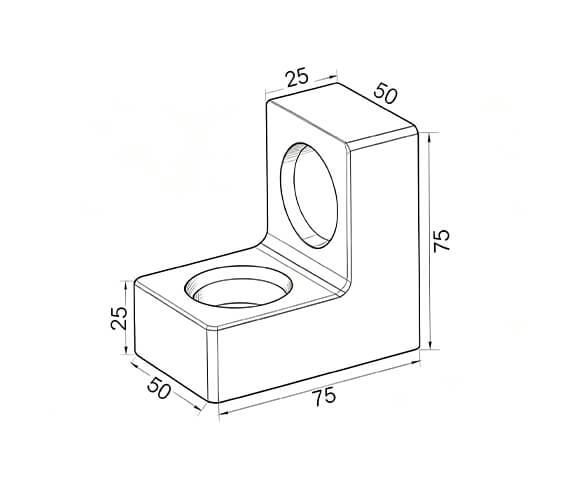

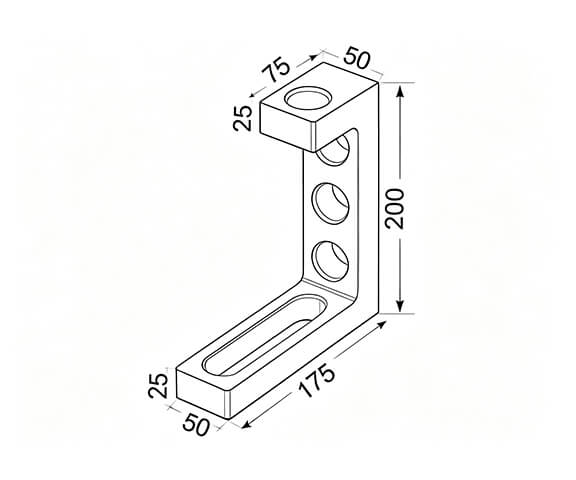

D28 Clamping and locating angle

Material: Q355B(S355J2) | Surface Finish: Black Oxide (Default) | Hardness: 180–220 HB

Precision locating or clamping angle for 90° workpiece fixturing. Combines fixed bore holes or elongated slots for infinitely variable adjustment or secure locking. Also functions as an extended work surface for small parts or nesting setups. Compatible with all system clamping bolts.

Ref. 1

Ref. 2

Ref. 3

Ref. 4

Ref. 5

Ref. 6

Ref. 7

Ref. 8

Ref. 9

Ref. 10

Ref.	Product Name	Specification (mm) (LxWxH)	Product Code	Ref. Weight (kg)
Ref. 1	Locating & Clamping Angle	75x50x75	SWK28-30001	1

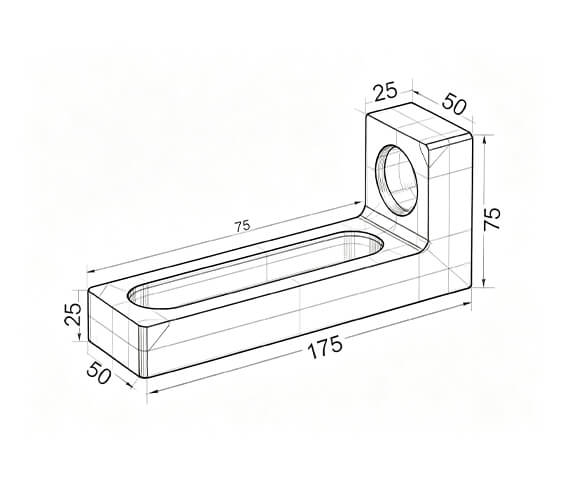

Ref. 2	Locating & Clamping Angle	175x50x75	SWK28-30002	1.4

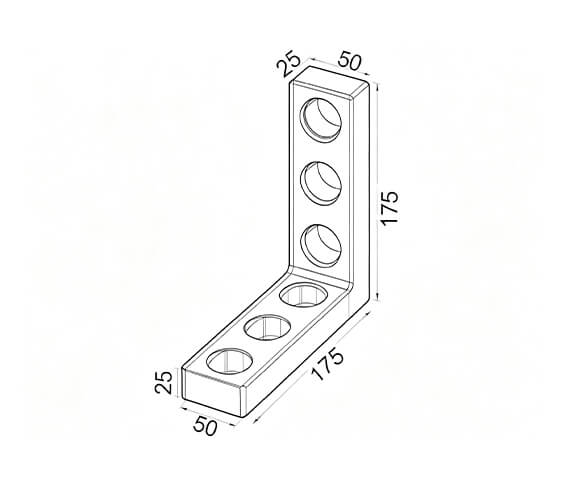

Ref. 3	Locating & Clamping Angle	175x50x175-KK	SWK28-30003	2.4
Ref. 4	Locating & Clamping Angle	175x50x175-CC	SWK28-30004	1.8

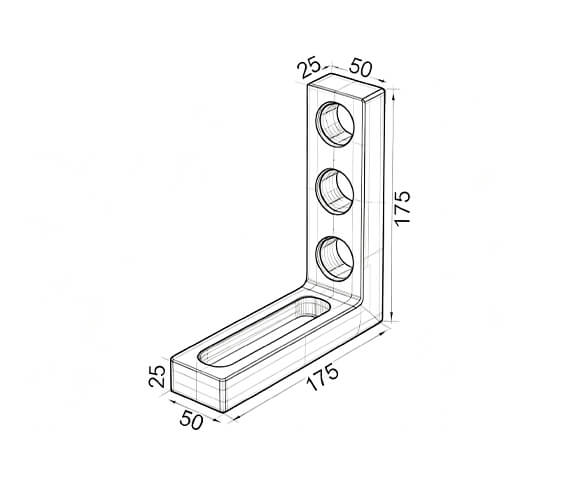

Ref. 5	Locating & Clamping Angle	175x50x175-KC	SWK28-30005	2.1
Ref. 6	Locating & Clamping Angle	175x50x275	SWK28-30006	2.8
Ref. 7	Locating & Clamping Angle	175x50x200	SWK28-30007	2.7

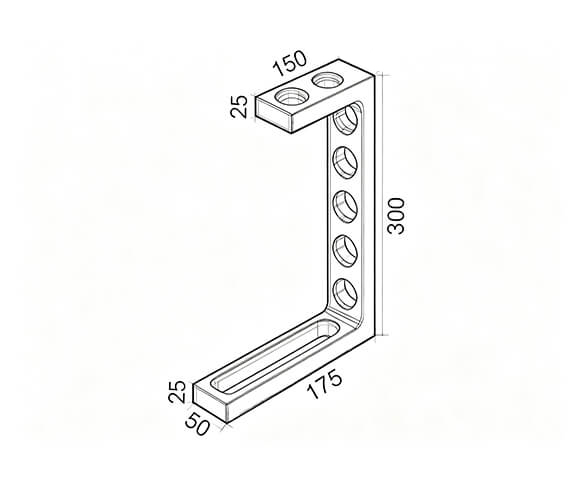

Ref. 8	Locating & Clamping Angle	175x50x300	SWK28-30008	2.9

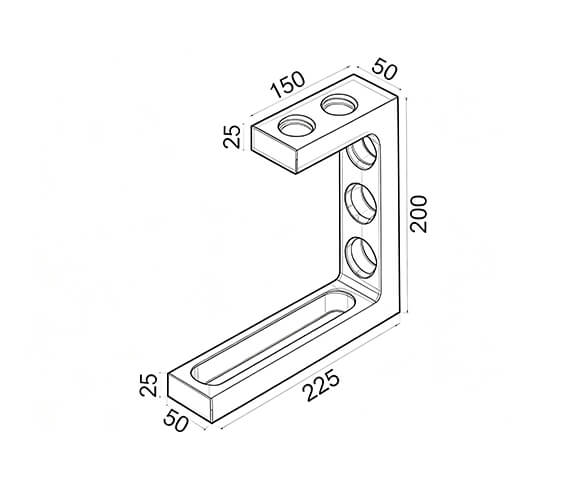

Ref. 9	Locating & Clamping Angle	225x50x200	SWK28-30009	6.3

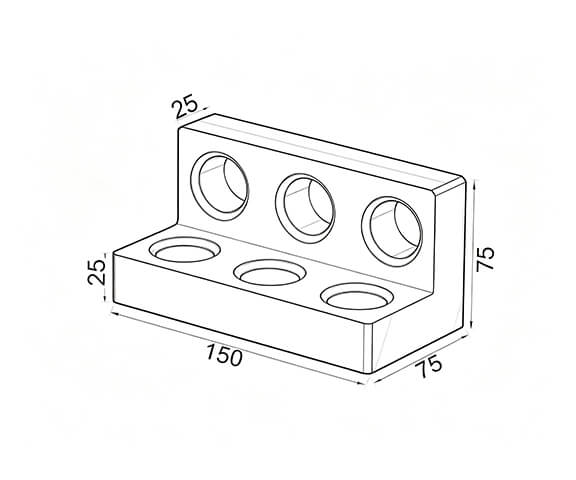

Ref. 10	Angle bracket	150x75x75	SWK28-30010	5.8

Note: For Plasma Nitriding, add the "-B2" suffix to the product code (surface hardness 500–650 HV); for Hard Chrome Plating, add the "-B4" suffix.

D28 Flat Stops

Material: Q355B(S355J2) | Surface Finish: Black Oxide (Default) | Hardness: 180–220 HB

This locating module combines system bores or slots with complete inner and outer 90° locating surfaces. Simultaneously locates two workpieces assembled at 90°. Delivers infinitely variable adjustment and direct fixation of all components.

Ref. 1

Ref. 2

Ref. 3

Ref. 4

Ref. 5

Ref.	Product Name	Specification (mm) (LxWxH)	Product Code	Ref. Weight (kg)

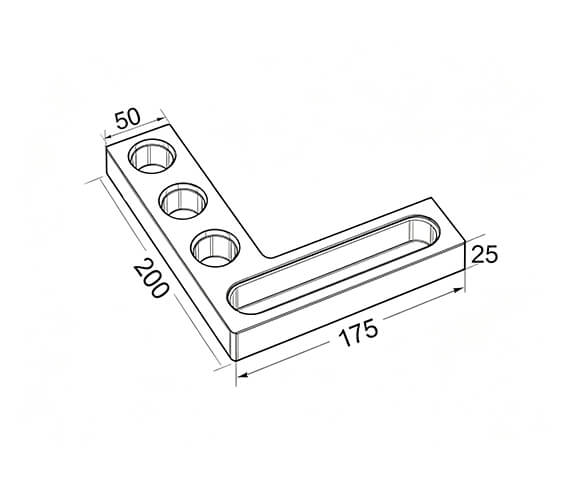

Ref. 1	Flat L-Stops	175x200x25	SWK28-32001	2

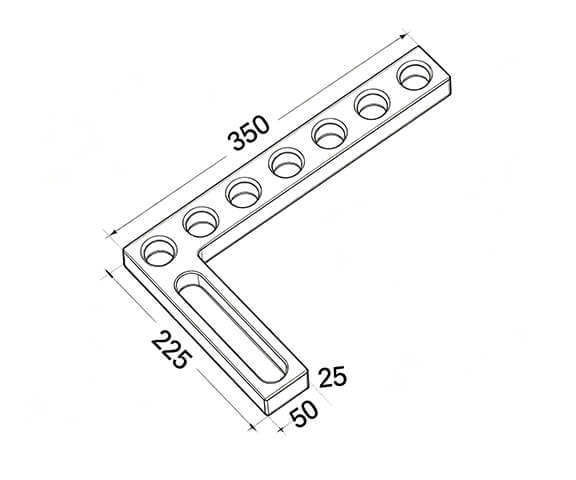

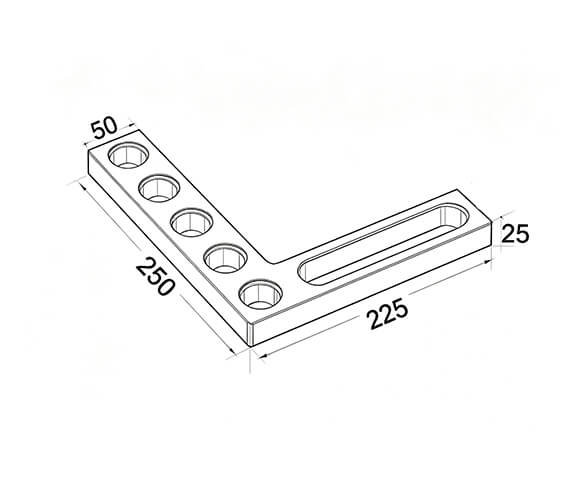

Ref. 2	Flat L-Stops	225x250x25	SWK28-32002	2.7
Ref. 3	Flat L-Stops	225x350x25	SWK28-32003	3.2

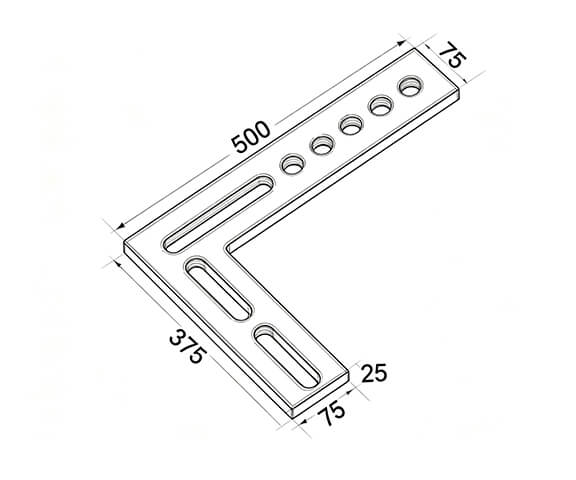

Ref. 4	Flat L-Stops	375x500x25	SWK28-32004	12.3

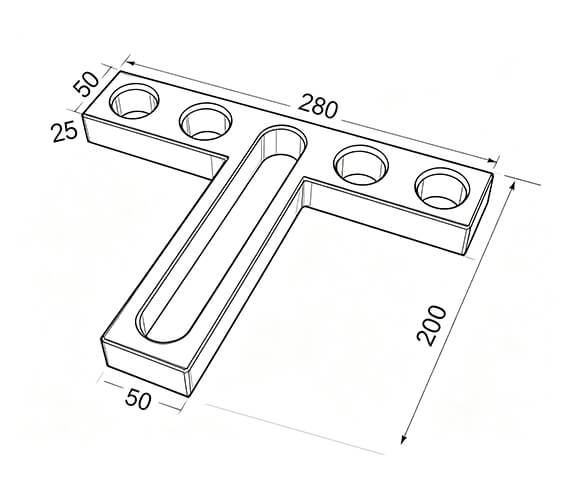

Ref. 5	Flat T-Stops	250x200x25	SWK28-32005	2.5

Note: For Plasma Nitriding, add the "-B2" suffix to the product code (surface hardness 500–650 HV); for Hard Chrome Plating, add the "-B4" suffix.

D28 V-block locations

Material: See Description | Surface Finish: Black Oxide (Default)

V-block locations designed for supporting and positioning round tubes and cylindrical bars. Delivers precise fixturing for cylindrical workpieces in compact welding and assembly setups. Compatible with all system clamping bolts and locating components.

Ref. 1

Ref. 2

Ref. 3

Ref.	Product Name	Specification (mm)	Product Code	Ref. Weight (kg)	Description

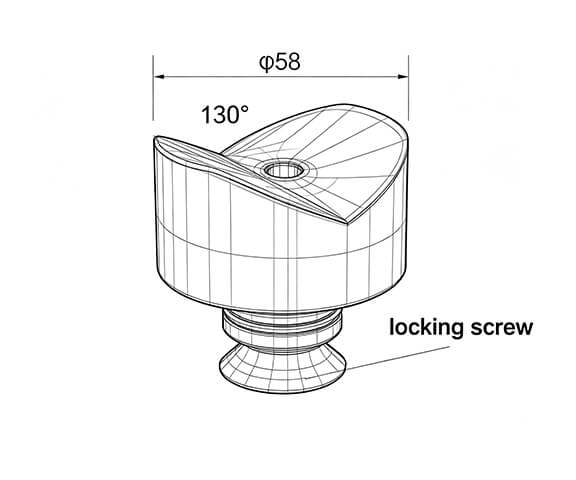

Ref. 1	V-block locations	Φ58/130° steel	SWK28-33001	0.7	Hardness: 240–280 HB
Ref. 1	V-block locations	Φ58/130° Al	SWK28-33101	0.3
Ref. 2	V-block locations	Φ80/130° steel	SWK28-33002	1.5	Hardness: 240–280 HB
Ref. 2	V-block locations	Φ80/130° Al	SWK28-33102	0.5
Ref. 3	V-block locations	Φ110/130° steel	SWK28-33003	2	Hardness: 240–280 HB
Ref. 3	V-block locations	Φ110/130° Al	SWK28-33103	1

Note: For Plasma Nitriding, add the "-B2" suffix to the product code (surface hardness 500–650 HV); for Hard Chrome Plating, add the "-B4" suffix.

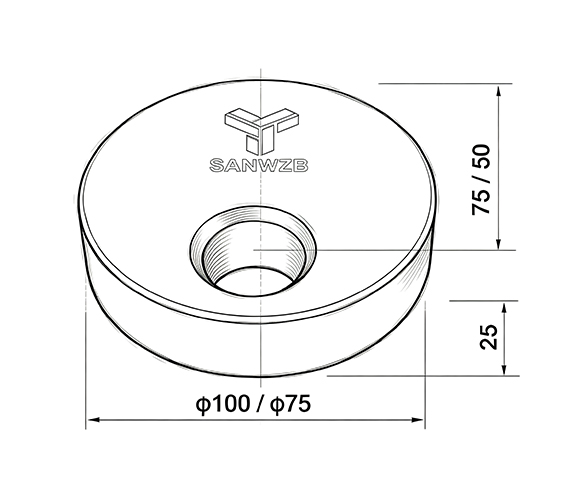

Eccentric Locating Disk

Material: 45# steel (C45) | Surface Finish: Black Oxide (Default) | Hardness: 240–280 HB

Locating disk designed for fine adjustment and small-distance workpiece positioning. Fixed with clamping bolts or countersunk rapid bolts, enabling infinitely variable adjustment through rotation. Ideal for precise alignment and fixturing in compact work areas.

Ref. 1

Ref.	Product Name	Specification (mm)	Product Code	Ref. Weight (kg)
Ref. 1	D28 Eccentric Locating Disk	Φ50 x 75x25	SWK28-34001	0.7
Ref. 1	D28 Eccentric Locating Disk	Φ75 x 100x25	SWK28-34002	1.4
Ref. 1	D22 Eccentric Locating Disk	Φ50 x 75x18	SWK22-34001	-
Ref. 1	D22 Eccentric Locating Disk	Φ75 x 100x18	SWK22-34002	-
Ref. 1	D16 Eccentric Locating Disk	Φ25 x 50x12	SWK16-34001	-
Ref. 1	D16 Eccentric Locating Disk	Φ60 x 75x12	SWK16-34002	-

Note: For Plasma Nitriding, add the "-B2" suffix to the product code (surface hardness 500–650 HV); for Hard Chrome Plating, add the "-B4" suffix.

Adapter plate

Material: 45# steel (C45) | Surface Finish: Black Oxide (Default) | Hardness: 240–280 HB

Adapter plate connects the 3D system to individual components. Weld or bolt onto custom workpieces to extend fixturing flexibility for specialized applications.

Ref. 1

Ref.	Product Name	Specification (mm) (LxWxH)	Product Code	Ref. Weight (kg)
Ref. 1	D28 Adapter plate	150x150x25	SWK28-36001	3.3
Ref. 1	D22 Adapter plate	150x150x18	SWK22-36001	2.9
Ref. 1	D16 Adapter plate	75x75x12	SWK16-36001	0.5

Note: For Plasma Nitriding, add the "-B2" suffix to the product code (surface hardness 500–650 HV); for Hard Chrome Plating, add the "-B4" suffix.

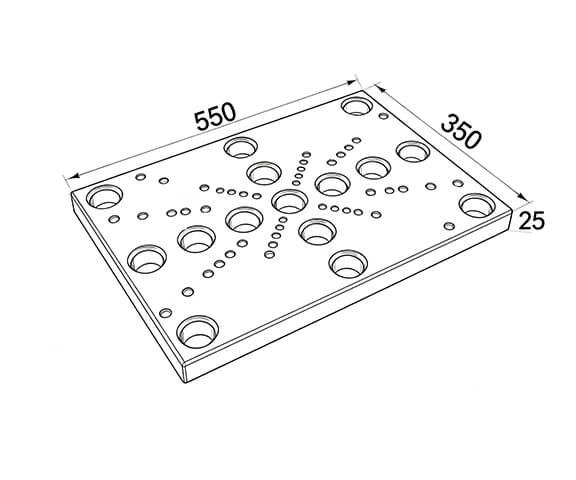

Flanges (Including bolts)

Material: 45# steel (C45) | Surface Finish: Black Oxide (Default) | Hardness: 240–280 HB

Flanges designed for pipe flange fixturing. Quickly and accurately positioned on the bolt hole circle, secured with quick-lock pins. Mounting bolts included in delivery.

Ref. 1

Ref.	Product Name	Specification (mm) (LxWxH)	Product Code	Ref. Weight (kg)

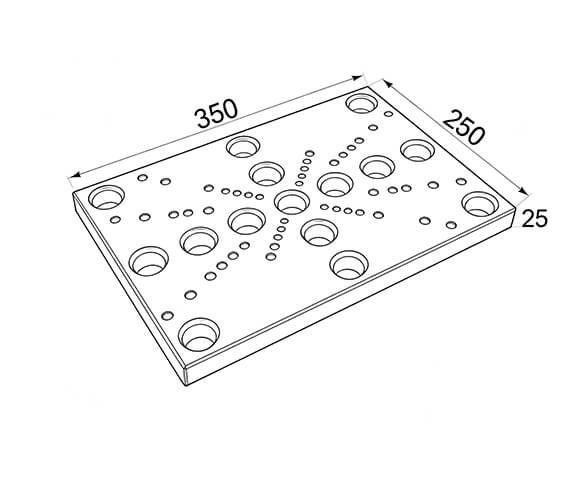

Ref. 1	D28 Flanges (Including bolts)	350x250x25	SWK28-37001	12
Ref. 1	D28 Flanges (Including bolts)	550x350x25	SWK28-37002	30
Ref. 1	D22 Flanges (Including bolts)	350x250x25	SWK22-37001	-
Ref. 1	D22 Flanges (Including bolts)	550x350x25	SWK22-37002	-

Note: For Plasma Nitriding, add the "-B2" suffix to the product code (surface hardness 500–650 HV); for Hard Chrome Plating, add the "-B4" suffix.

Adjustable Angle Bkt(L/R)

Material: Q355B(S355J2) | Surface Finish: Black Oxide (Default) | Hardness: 180–220 HB

Adjustable angle bracket used as a stop or for clamping angled components. Freely adjustable angle with 15° precision scaling for tight fit. Also functions as a 90° stop for versatile fixturing solutions.

Ref. 1

Ref. 2

Ref.	Product Name	Specification (mm) (LxWxH)	Product Code	Ref. Weight (kg)	Description
Ref. 1	D28 Adjustable Angle Bkt	200x200x75-L	SWK28-35001	7	Finished Plate Thickness: 23–26 mm
Ref. 2	D28 Adjustable Angle Bkt	200x200x75-R	SWK28-35002	7	Finished Plate Thickness: 23–26 mm
Ref. 1	D22 Adjustable Angle Bkt	200x200x50-L	SWK22-35001	-	Finished Plate Thickness: 17–19 mm
Ref. 2	D22 Adjustable Angle Bkt	200x200x50-R	SWK22-35002	-	Finished Plate Thickness: 17–19 mm
Ref. 1	D16 Adjustable Angle Bkt	100x100x50-L	SWK16-35001	3.3	Finished Plate Thickness: 11–13 mm
Ref. 2	D16 Adjustable Angle Bkt	100x100x50-R	SWK16-35002	3.3	Finished Plate Thickness: 11–13 mm

Note: For Plasma Nitriding, add the "-B2" suffix to the product code (surface hardness 500–650 HV); for Hard Chrome Plating, add the "-B4" suffix.

General Technical Specifications

Dim. tolerance: L±0.1×W±0.1×H±0.1 Grid hole: D10 tolerance (per ISO 286) Hole pitch: ±0.05 mm ◇ Flatness: 0.1 mm/m ∥ Parallelism: 0.1 mm/m ⊥ Squareness: 0.1/200

Need Help Choosing the Right Locating Components?

Send us your fixture setup requirements — our engineering team will recommend the right locating components for your application.

Online Message Email Us

D22 Series Locating Components – Dimensions Ordering: Product Name + Specification + Code

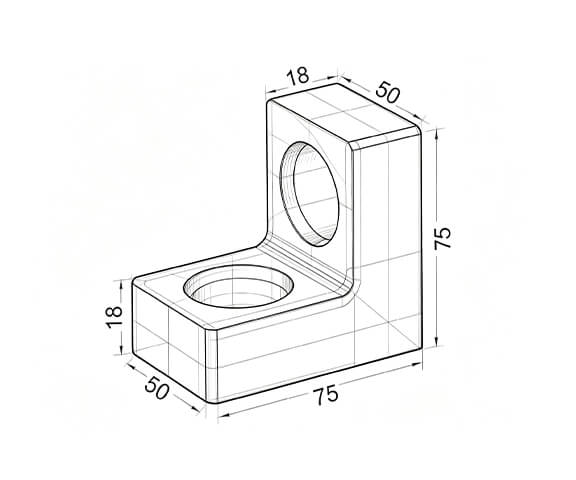

Clamping and Locating Angle

Specs: 75x50x75

Code: SWK22-30001

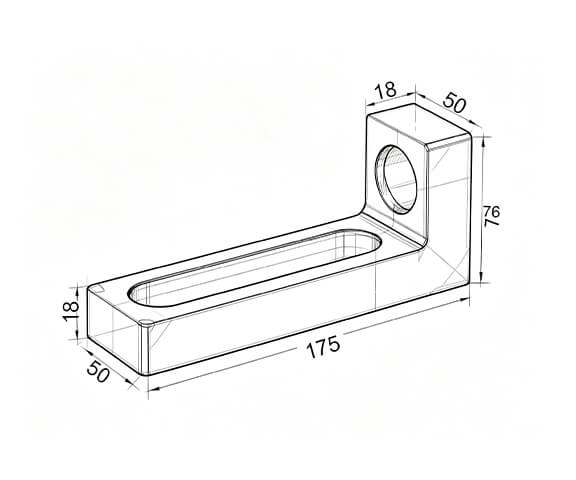

Clamping and Locating Angle

Specs: 175x50x75

Code: SWK22-30002

Clamping and Locating Angle

Specs: 175x50x175-KK

Code: SWK22-30003

Clamping and Locating Angle

Specs: 175x50x175-CC

Code: SWK22-30004

Clamping and Locating Angle

Specs: 175x50x175-KC

Code: SWK22-30005

Clamping and Locating Angle

Specs: 175x50x275

Code: SWK22-30006

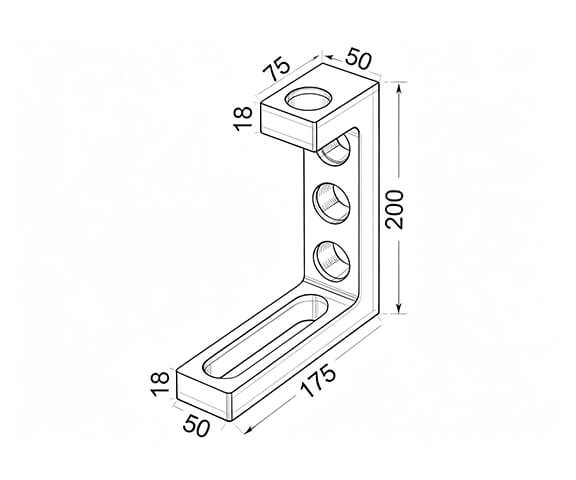

Clamping and Locating Angle

Specs: 175x50x200

Code: SWK22-30007

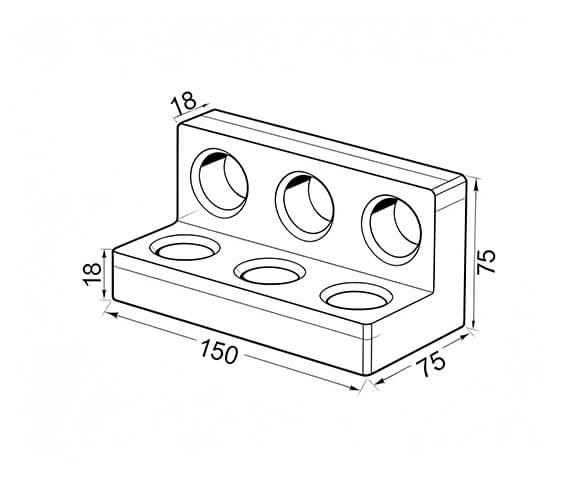

Angle bracket

Specs: 150x75x75

Code: SWK22-30008

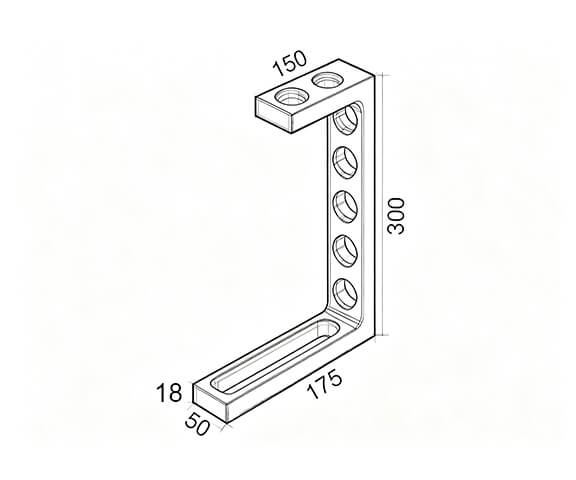

Clamping and Locating Angle

Specs: 175x50x300

Code: SWK22-30009

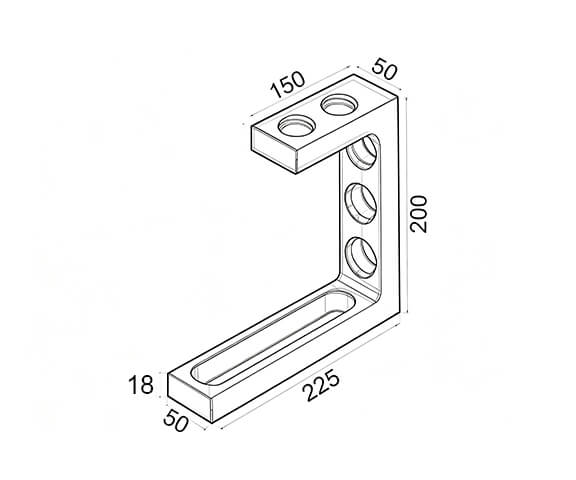

Clamping and Locating Angle

Specs: 225x50x200

Code: SWK22-30010

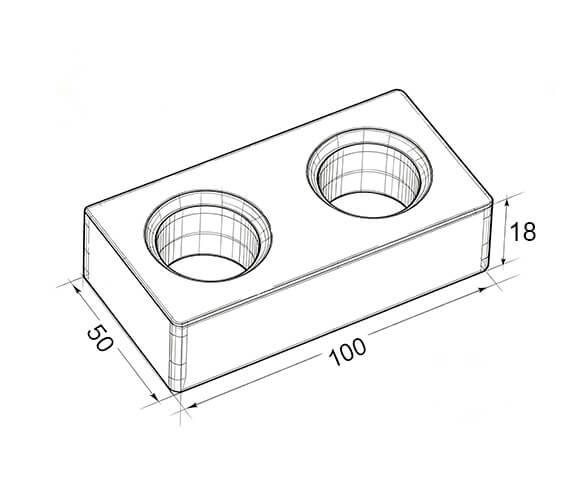

Stops

Specs: 100x50x18

Code: SWK22-31001

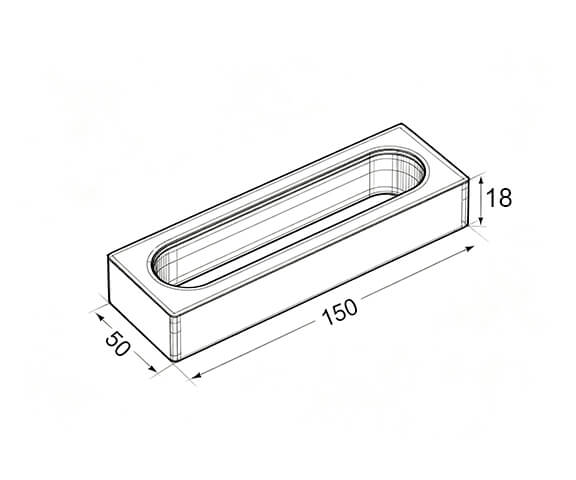

Stops

Spec: 150x50x18

Code: SWK22-31002

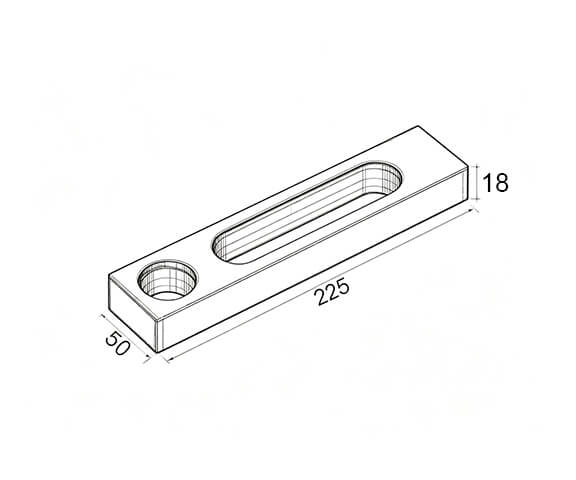

Stops

Specs: 225x50x18

Code: SWK22-31003

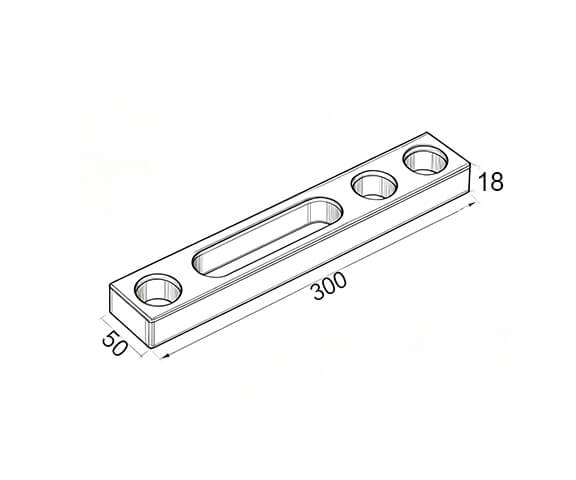

Stops

Specs: 300x50x18

Code: SWK22-31004

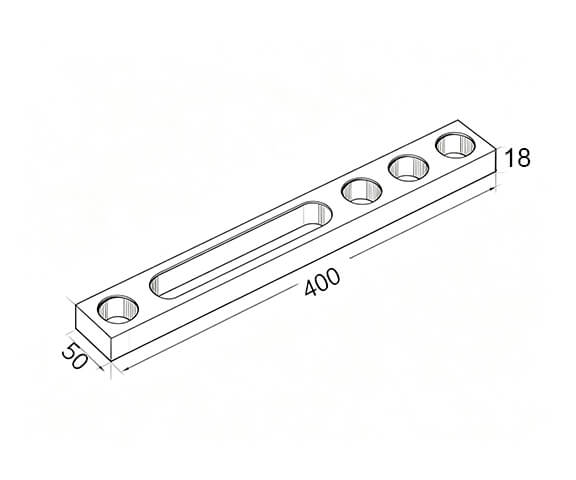

Stops

Specs: 400x50x18

Code: SWK22-31005

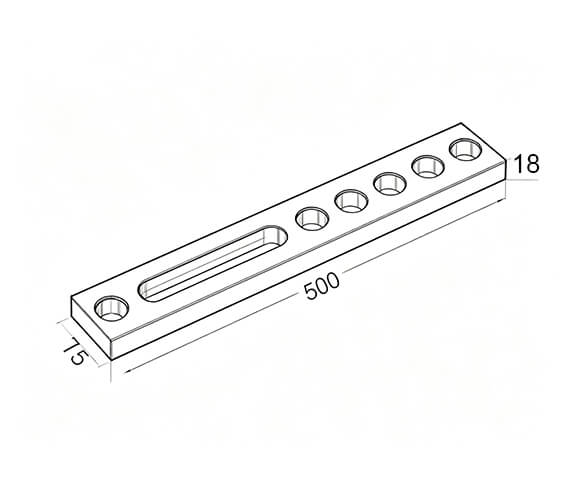

Stops

Specs: 500x75x18

Code: SWK22-31006

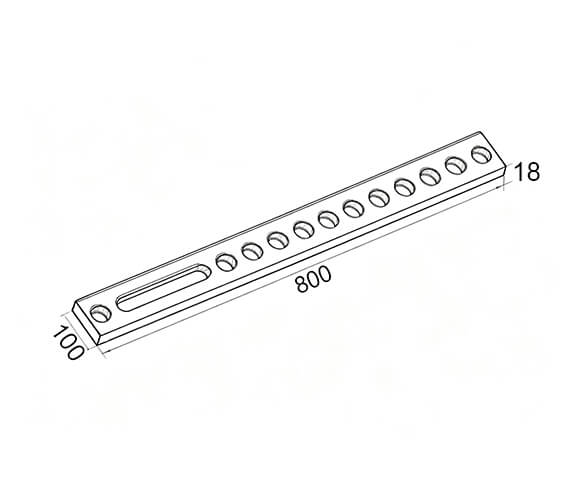

Stops

Specs: 800x100x18

Code: SWK22-31007

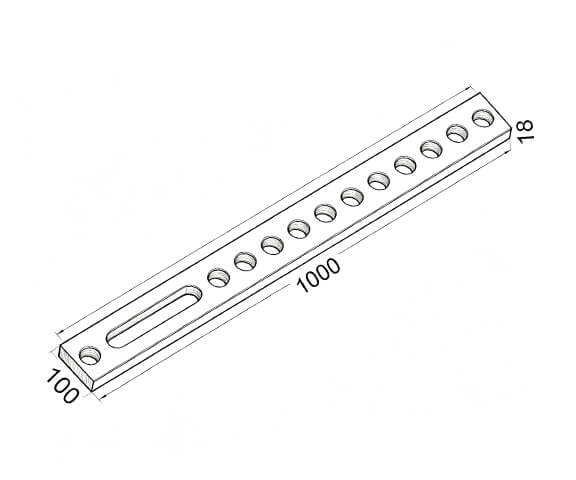

Stops

Specs: 1000x100x18

Code: SWK22-31008

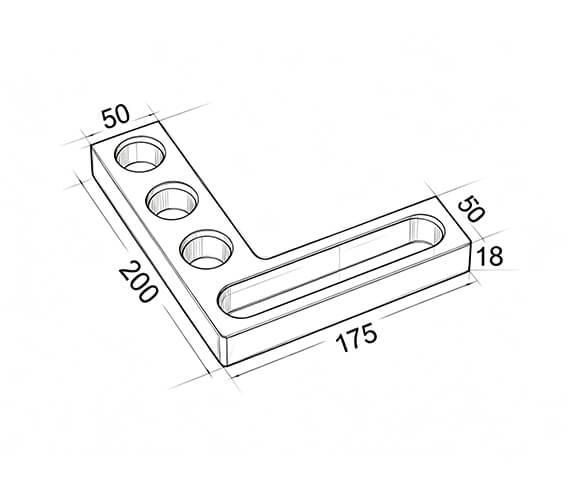

L‑Stops

Specs: 175x200x18

Code: SWK22-32001

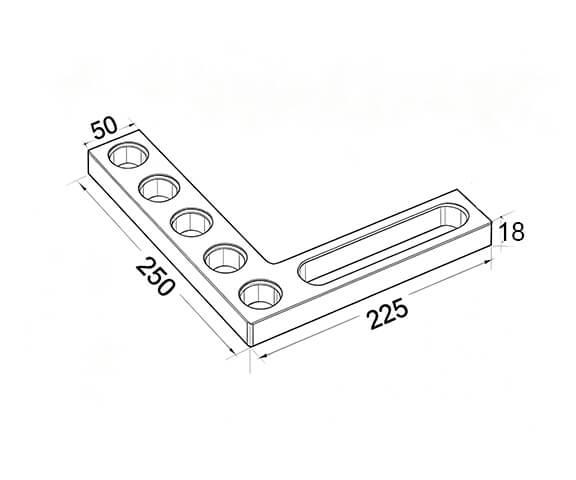

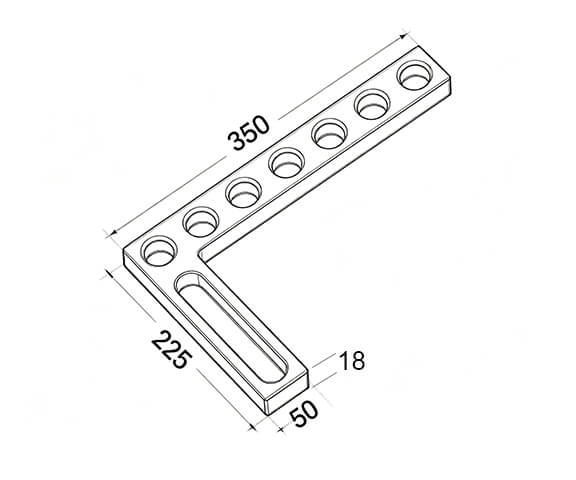

L‑Stops

Specs: 225x250x18

Code: SWK22-32002

L‑Stops

Specs: 225x350x18

Code: SWK22-32003

L‑Stops

Specs: 375x500x18

Code: SWK22-32004

T‑Stops

Specs: 250x200x18

Code: SWK22-32005

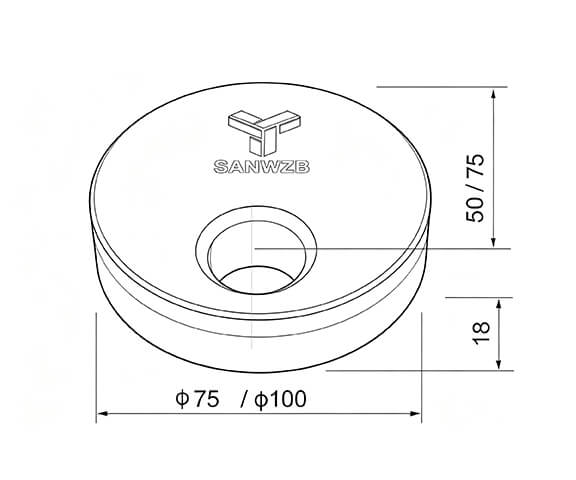

Locating Disk

Specs: 50xφ75x18 / 75xφ100x18

Code: SWK22‑34001 / SWK22‑34002

V‑block locations

Specs: φ58/130°Steel / Al-alloy

Code: SWK22‑33001 / SWK22‑33101

V‑block locations

Specs: φ80/130°Steel / Al-alloy

Code: SWK22‑33002 / SWK22‑33102

V‑block locations

Specs: φ110/130°Steel / Al-alloy

Code: SWK22‑33003 / SWK22‑33103

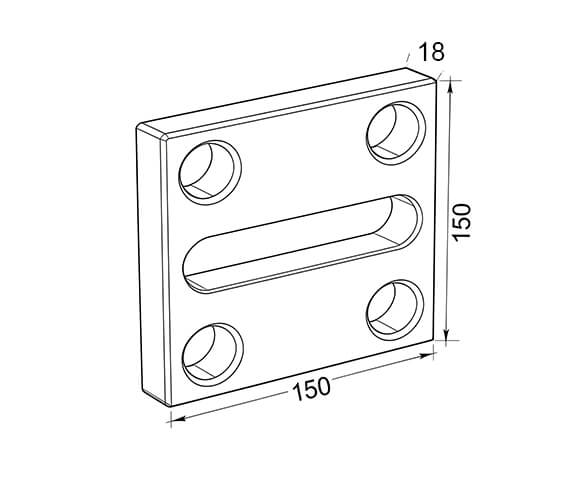

Adapter plate

Specs: 150x150x18

Code: SWK22‑36001

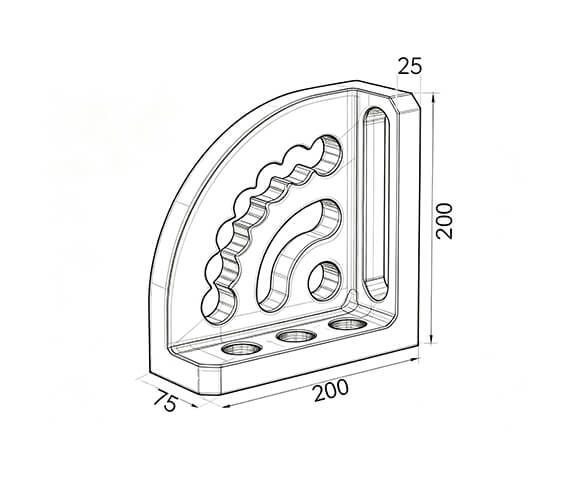

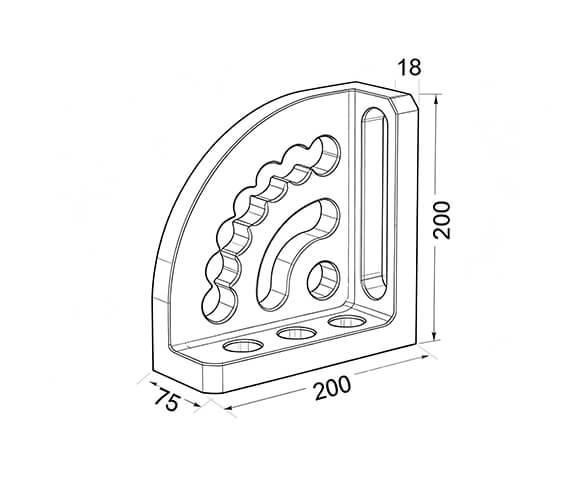

Adjustable Angle bracket(L)

Specs: 200x200x75

Code: SWK22‑35001

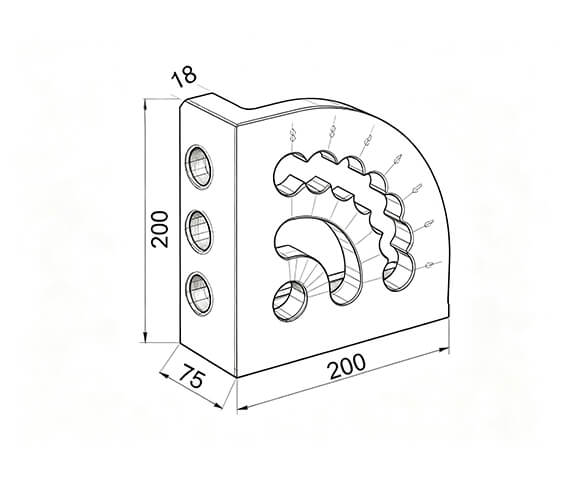

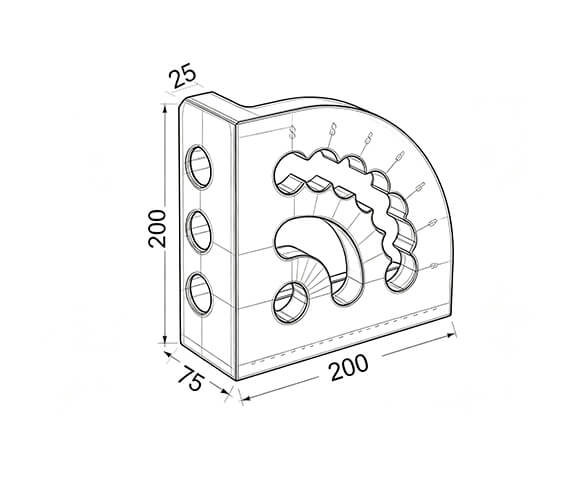

Adjustable Angle bracket(R)

Specs: 200x200x75

Code: SWK22‑35002

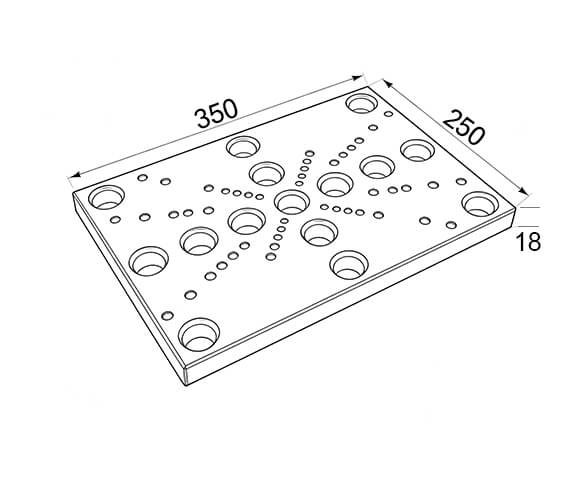

Flanges(Including bolts)

Specs: 350x250x18

Code: SWK22‑37001

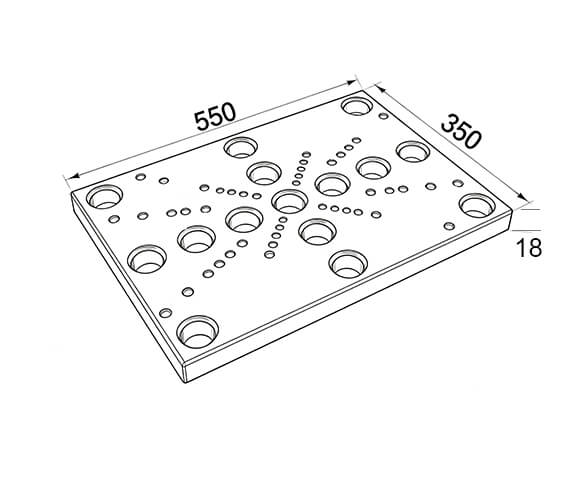

Flanges(Including bolts)

Specs: 550x350x18

Code: SWK22‑37002

Note: For steel‑based components, the default surface finish is black oxide. Add suffix ‑B2 to the part number for plasma nitriding,or suffix ‑B4 for hard chrome plating. For aluminum‑alloy parts, the default surface finish is anodizing.

Ref.	Product Name	Specification (mm) (LxWxH)	Product Code	Ref. Weight (kg)
Ref. 1	Locating Stops	100x50x18	SWK22-31001	-
Ref. 2	Locating Stops	150x50x18	SWK22-31002	-
Ref. 3	Locating Stops	225x50x18	SWK22-31003	-
Ref. 4	Locating Stops	300x50x18	SWK22-31004	-
Ref. 5	Locating Stops	400x50x18	SWK22-31005	-
Ref. 6	Locating Stops	500x75x18	SWK22-31006	-
Ref. 7	Locating Stops	800x100x18	SWK22-31007	-
Ref. 8	Locating Stops	1000x100x18	SWK22-31008	-

Ref.	Product Name	Specification (mm) (LxWxH)	Product Code	Ref. Weight (kg)
Ref. 1	Locating Stops	55x30x12	SWK16-31001	0.2
Ref. 2	Locating Stops	90x30x12	SWK16-31002	0.3
Ref. 3	Locating Stops	115x30x12	SWK16-31003	0.4
Ref. 4	Locating Stops	155x30x12	SWK16-31004	0.4
Ref. 5	Locating Stops	190x30x12	SWK16-31005	0.5
Ref. 6	Locating Stops	240x50x12	SWK16-31006	1.1
Ref. 7	Locating Stops	300x50x12	SWK16-31007	1.4
Ref. 8	Locating Stops	400x50x12	SWK16-31008	1.9

Ref.	Product Name	Specification (mm) (LxWxH)	Product Code	Ref. Weight (kg)

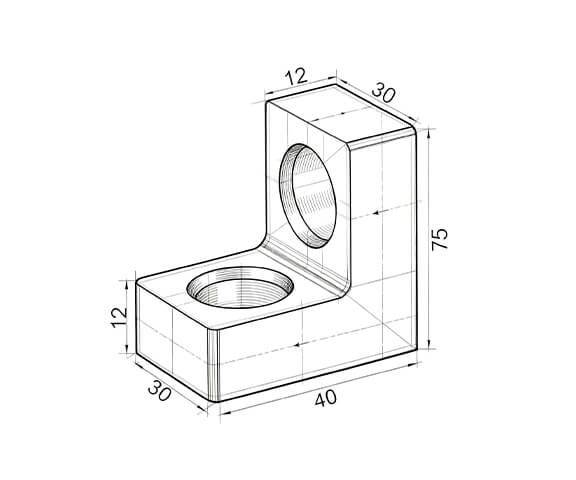

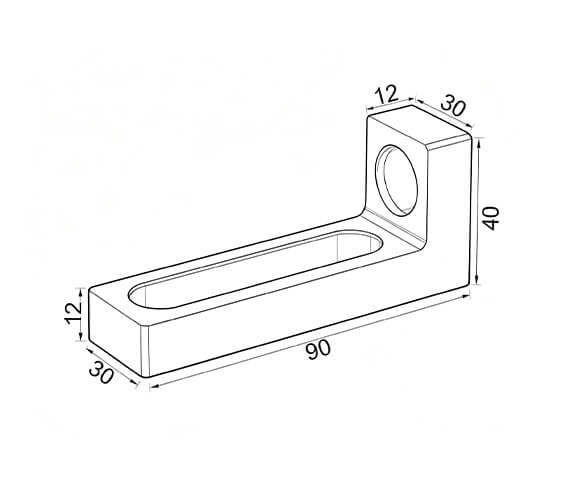

Ref. 1	Locating & Clamping Angle	40x30x40	SWK16-30001	-
Ref. 2	Locating & Clamping Angle	90x30x40	SWK16-30002	-
Ref. 3	Locating & Clamping Angle	90x30x90-KK	SWK16-30003	-
Ref. 4	Locating & Clamping Angle	90x30x90-CC	SWK16-30004	-

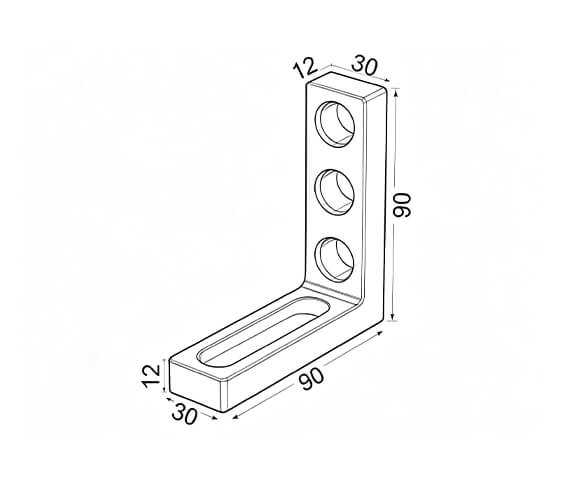

Ref. 5	Locating & Clamping Angle	90x30x90-KC	SWK16-30005	-
Ref. 6	Locating & Clamping Angle	90x30x140	SWK16-30006	-

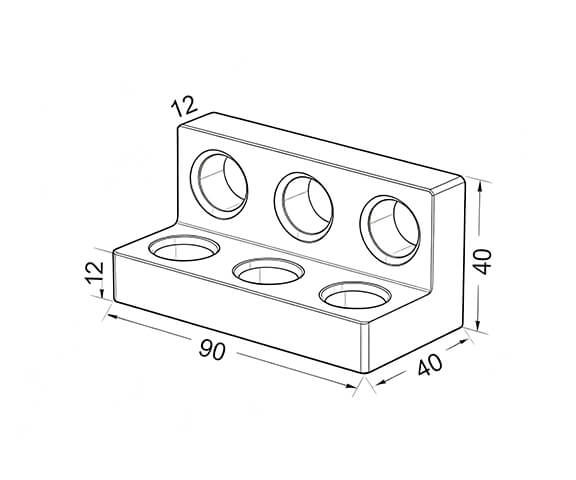

Ref. 8	Angle bracket	90x40x40	SWK16-30007	-

Ref.	Product Name	Specification (mm) (LxWxH)	Product Code	Ref. Weight (kg)
Ref. 1	Flat L-Stops	175x200x18	SWK22-32001	-
Ref. 2	Flat L-Stops	225x180x18	SWK22-32002	-
Ref. 3	Flat L-Stops	225x350x18	SWK22-32003	-
Ref. 4	Flat L-Stops	375x500x18	SWK22-32004	-
Ref. 5	Flat T-Stops	250x200x18	SWK22-32005	-

Ref.	Product Name	Specification (mm) (LxWxH)	Product Code	Ref. Weight (kg)
Ref. 1	Flat L-Stops	105x105x12	SWK16-32001	0.8
Ref. 2	Flat L-Stops	130x130x12	SWK16-32002	1
Ref. 3	Flat L-Stops	155x180x12	SWK16-32003	1.3
Ref. 4	Flat L-Stops	200x275x12	SWK16-32004	2.4

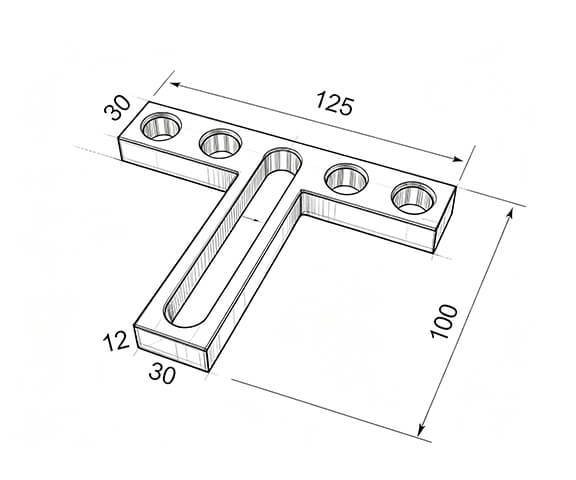

Ref. 5	Flat T-Stops	125x100x30	SWK16-32005	0.9

Ref.	Product Name	Specification (mm)	Product Code	Ref. Weight (kg)	Description
Ref. 1	V-block locations	Φ48/130° steel	SWK16-33001	-	Hardness: 240–280 HB
Ref. 1	V-block locations	Φ48/130° Al	SWK16-33101	-
Ref. 2	V-block locations	Φ65/130° steel	SWK16-33002	-	Hardness: 240–280 HB
Ref. 2	V-block locations	Φ65/130° Al	SWK16-33102	-
Ref. 3	V-block locations	Φ80/130° steel	SWK16-33003	-	Hardness: 240–280 HB
Ref. 3	V-block locations	Φ80/130° Al	SWK16-33103	-
