Support Angles

Name: Modular Welding Table Support Angles (D28/D22/D16)
Brand: SANWZB
Availability: InStock

Support angles provide rigid 90° side positioning and horizontal support. The curved slot design holds workpieces at any angle while boosting stability by 40%. 50 mm grid holes ensure full compatibility with other modular components.

Product Types: D28 Locating Angle | D22 Locating Angle | D16 Locating Angle | Angle Apparatus | Corner Module

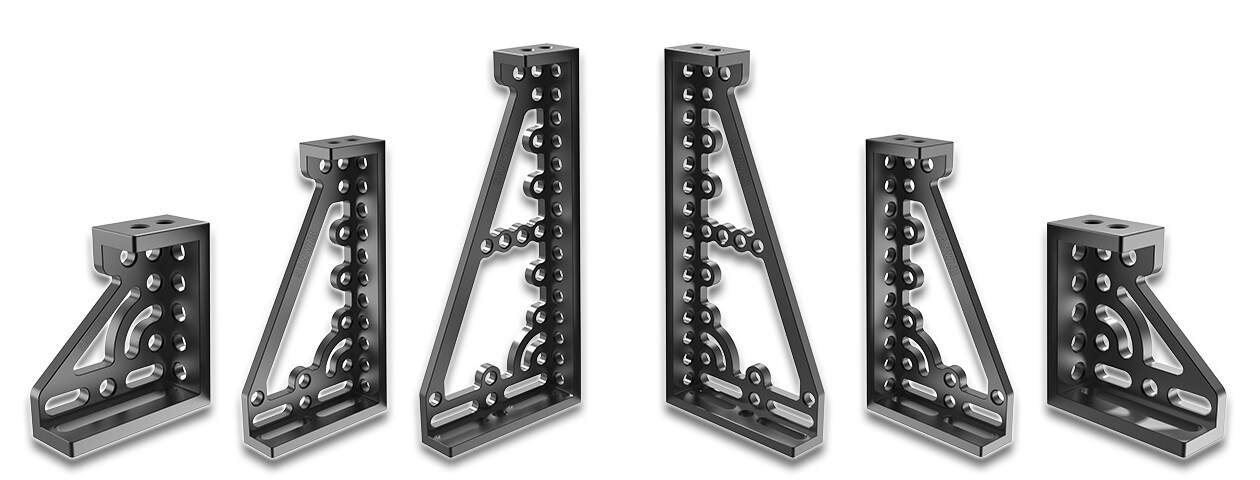

D28 Locating Angle

Material: Q355B(S355J2) | Surface Finish: Black Oxide (Default) | Hardness: 180–220 HB

Heavy-duty D28 series locating angle: three-sided full clamping with integrated system holes; oval slots allow stepless, continuous adjustment and locking for maximum positioning flexibility. Finished Plate Thickness: 23–26 mm

Ref. 1

Ref. 2

Ref. 3

Ref.	Product Name	Specification (mm)	Product Code	Ref. Weight (kg)
Ref.1	300 locating angle (L)	275x100x300-L	SWK28-22101	13.7
Ref.1	300 locating angle (R)	275x100x300-R	SWK28-22102	13.7
Ref.2	600 locating angle (L)	325x100x600-L	SWK28-22103	23.7
Ref.2	600 locating angle (R)	325x100x600-R	SWK28-22104	23.7
Ref.3	800 locating angle (L)	375x100x800-L	SWK28-22105	31.6
Ref.3	800 locating angle (R)	375x100x800-R	SWK28-22106	31.6
Ref.3	1200 locating angle (L)	375x100x1200-L	SWK28-22107	61.9
Ref.3	1200 locating angle (R)	375x100x1200-R	SWK28-22108	61.9

Note: For Plasma Nitriding, add the "-B2" suffix to the product code (surface hardness 500–650 HV); for Hard Chrome Plating, add the "-B4" suffix.

D22 Locating Angle

Material: Q355B(S355J2) | Surface Finish: Black Oxide (Default) | Hardness: 180–220 HB

Medium-duty D22 series locating angle: three-sided full clamping with integrated system holes; oval slots allow stepless, continuous adjustment and locking for maximum positioning flexibility. Finished Plate Thickness: 17–19 mm

Ref. 1

Ref. 2

Ref. 3

Ref.	Product Name	Specification (mm)	Product Code	Ref. Weight (kg)
Ref.1	300 locating angle (L)	275x100x300-L	SWK22-22101	11.6
Ref.1	300 locating angle (R)	275x100x300-R	SWK22-22102	11.6
Ref.2	600 locating angle (L)	325x100x600-L	SWK22-22103	20
Ref.2	600 locating angle (R)	325x100x600-R	SWK22-22104	20
Ref.3	800 locating angle (L)	375x100x800-L	SWK22-22105	28.8
Ref.3	800 locating angle (R)	375x100x800-R	SWK22-22106	28.8

Note: For Plasma Nitriding, add the "-B2" suffix to the product code (surface hardness 500–650 HV); for Hard Chrome Plating, add the "-B4" suffix.

D16 Locating Angle

Material: Q355B(S355J2) | Surface Finish: Black Oxide (Default) | Hardness: 180–220 HB

Light-duty D16 series locating angle: three-sided full clamping with integrated system holes; oval slots allow stepless, continuous adjustment and locking for maximum positioning flexibility. Finished Plate Thickness: 11–13 mm

Ref. 1

Ref. 2

Ref. 3

Ref.	Product Name	Specification (mm)	Product Code	Ref. Weight (kg)
Ref.1	200 locating angle (L)	150x50x200-L	SWK16-22101	7.4
Ref.1	200 locating angle (R)	150x50x200-R	SWK16-22102	7.4
Ref.2	400 locating angle (L)	200x50x400-L	SWK16-22103	18.1
Ref.2	400 locating angle (R)	200x50x400-R	SWK16-22104	18.1
Ref.3	600 locating angle (L)	200x50x600-L	SWK16-22105	27.2
Ref.3	600 locating angle (R)	200x50x600-R	SWK16-22106	27.2

Note: For Plasma Nitriding, add the "-B2" suffix to the product code (surface hardness 500–650 HV); for Hard Chrome Plating, add the "-B4" suffix.

Angle Apparatus

Material: Q355B(S355J2) | Surface Finish: Black Oxide (Default) | Hardness: 180–220 HB

Precision angle adjustment from 0° to 225° with a graduated scale, primarily for accurate angular positioning and alignment of workpieces.

Ref. 1

No.	Product Name	Specification (mm)	Product Code	Ref. Weight (kg)	Description
1	D28 Angle Apparatus	475x100x100	SWK28-70001	49.3	Finished Plate Thickness: 23–26 mm
2	D22 Angle Apparatus	475x100x100	SWK22-70001	32	Finished Plate Thickness: 17–19 mm
3	D16 Angle Apparatus	250x50x50	SWK16-70001	8.3	Finished Plate Thickness: 11–13 mm

Note: For Plasma Nitriding, add the "-B2" suffix to the product code (surface hardness 500–650 HV); for Hard Chrome Plating, add the "-B4" suffix.

Corner Module

Material: Q355B(S355J2) | Surface Finish: Black Oxide (Default) | Hardness: 180–220 HB

Right-angle expansion on adjacent sides of the welding table, flexible for use as V-block, support, stop and more.

Ref. 1

No.	Product Name	Specification (mm)	Product Code	Ref. Weight (kg)	Description
1	D28 Corner module	200x200x175	SWK28-23001	15.7	Finished Plate Thickness: 23–26 mm
2	D22 Corner module	200x200x175	SWK22-23001	15.7	Finished Plate Thickness: 17–19 mm
3	D16 Corner module	100x100x75	SWK16-23001	4.7	Finished Plate Thickness: 11–13 mm

Note: For Plasma Nitriding, add the "-B2" suffix to the product code (surface hardness 500–650 HV); for Hard Chrome Plating, add the "-B4" suffix.

General Technical Specifications

Dim. tolerance: L±0.1×W±0.1×H±0.1 Grid hole: D10 tolerance (per ISO 286) Hole pitch: ±0.05 mm ◇ Flatness: 0.1 mm/m ∥ Parallelism: 0.1 mm/m ⊥ Squareness: 0.1/200

Need Help Choosing the Right Support Angles?

Send us your fixture setup requirements — our engineering team will recommend the right support angles for your application.

Online Message Email Us

▲


Locating Angle (D28)	Locating Angle (D22)	Locating Angle (D16)	Corner Module	Angle Apparatus
Continuous adjustment and locking,Three full clamping sides with system bores,With oblong holes for continuous adjustment.	Continuous adjustment and locking,Three full clamping sides with system bores,With oblong holes for continuous adjustment.	Continuous adjustment and locking,Three full clamping sides with system bores,With oblong holes for continuous adjustment.	Diagonal table expansion, flexible in application as V-block, support, stop and more.	Continuously adjustable from 0° to 225° with precision scaling.

Ref.	Product Name	Specification (mm)	Product Code	Ref. Weight (kg)
Ref.1	300 Stop & Clamping Angle G (L)	—	SWK28-22109	—
Ref.1	300 Stop & Clamping Angle G (R)	—	SWK28-22110	—
Ref.2	500 Stop & Clamping Angle G (L)	—	SWK28-22111	—
Ref.2	500 Stop & Clamping Angle G (R)	—	SWK28-22112	—
Ref.3	750 Stop & Clamping Angle G (L)	—	SWK28-22113	—
Ref.3	750 Stop & Clamping Angle G (R)	—	SWK28-22114	—
Ref.4	400 Stop & Clamping Angle GK (L)	—	SWK28-22115	—
Ref.4	400 Stop & Clamping Angle GK (R)	—	SWK28-22116	—
Ref.5	600 Stop & Clamping Angle GK (L)	—	SWK28-22117	—
Ref.5	600 Stop & Clamping Angle GK (R)	—	SWK28-22118	—
Ref.6	800 Stop & Clamping Angle GK (L)	—	SWK28-22119	—
Ref.6	800 Stop & Clamping Angle GK (R)	—	SWK28-22120	—
Ref.7	500 Flat Stop & Clamping Angle GK (L)	—	SWK28-22121	—
Ref.7	500 Flat Stop & Clamping Angle GK (R)	—	SWK28-22122	—
