Table Support Legs & Mounting Systems

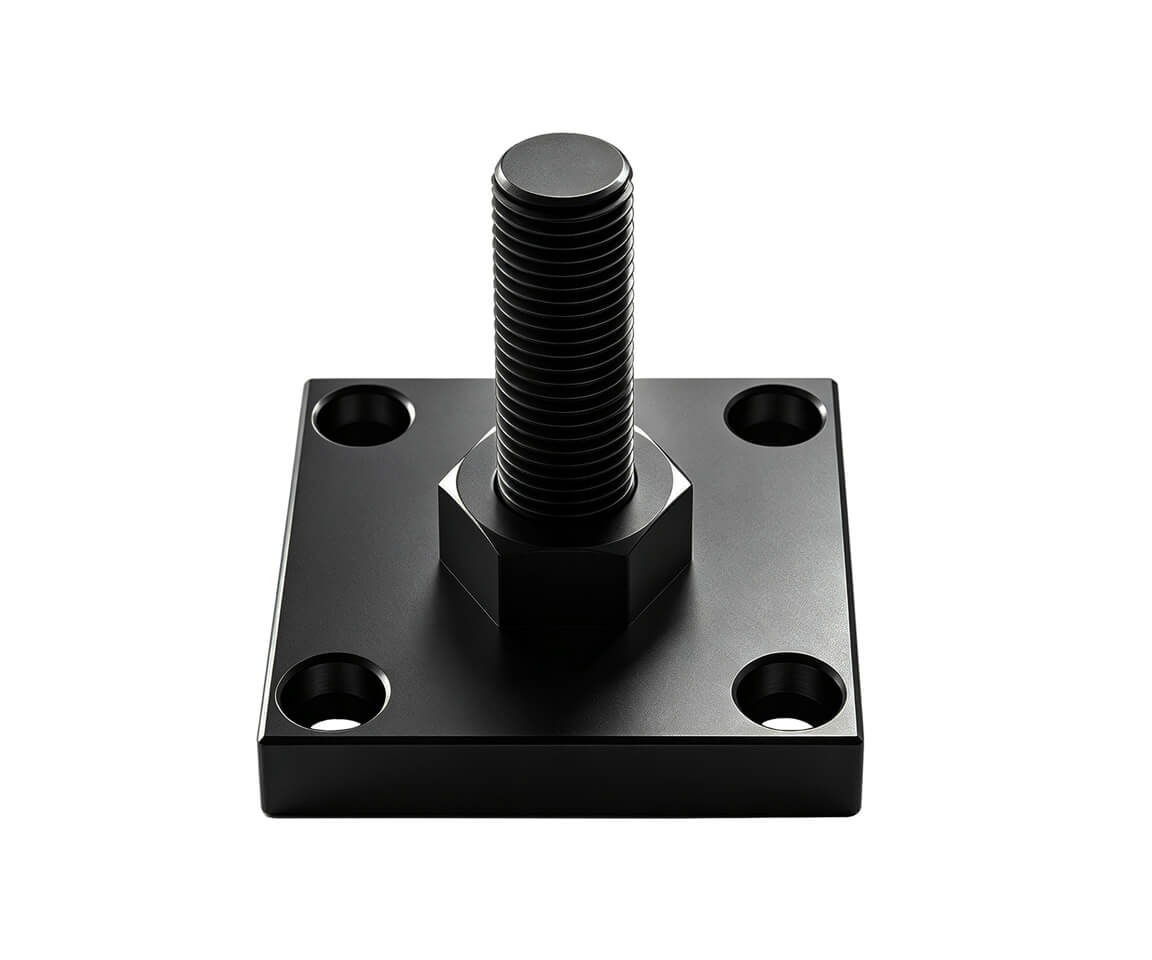

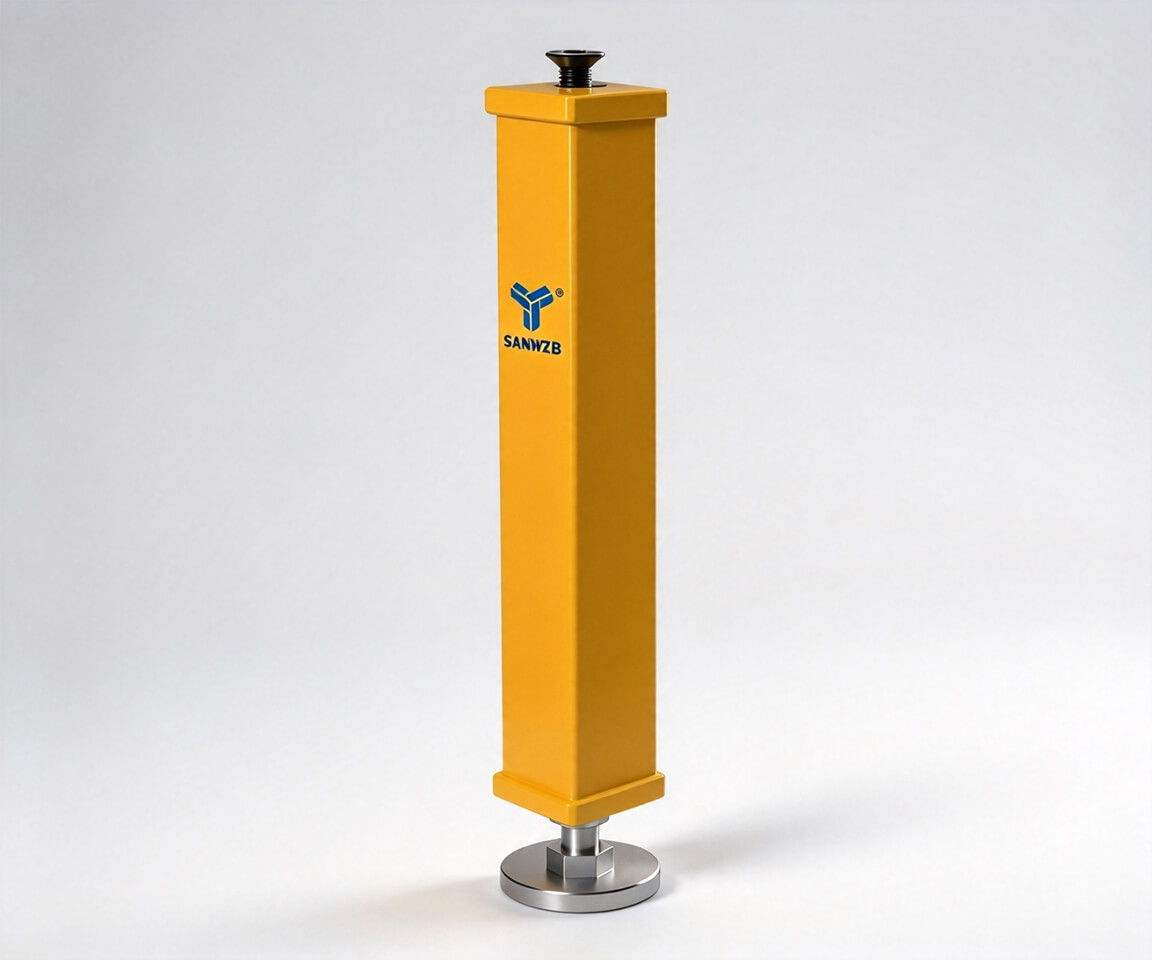

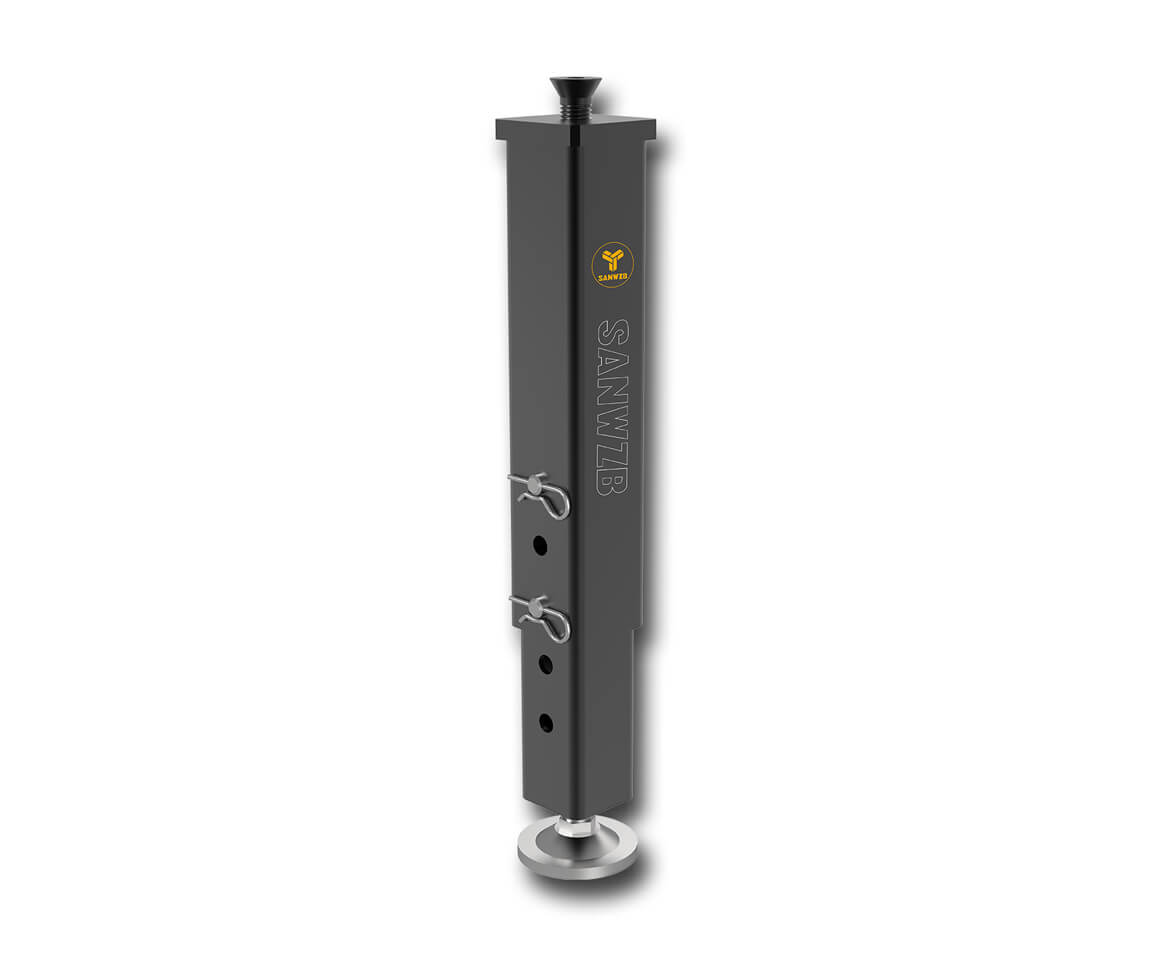

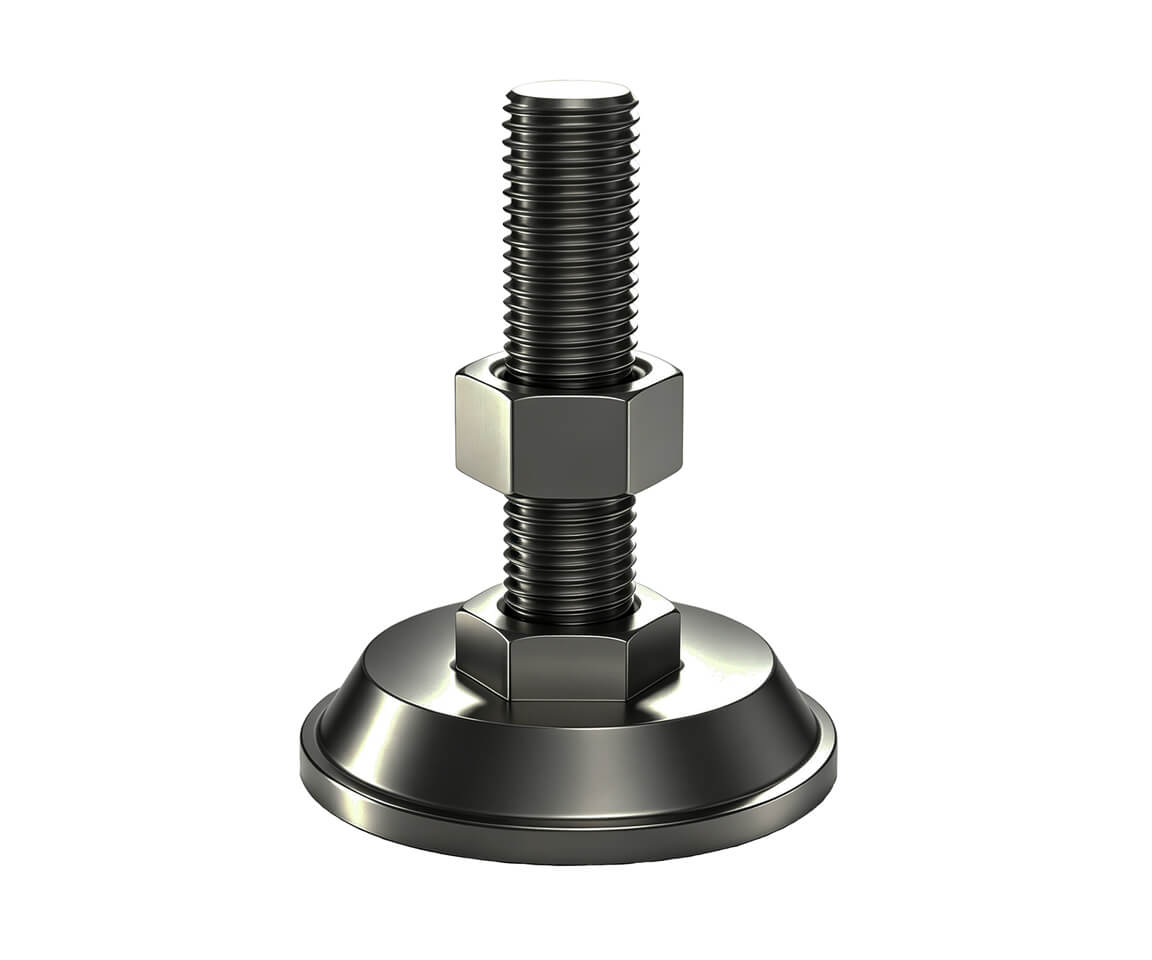

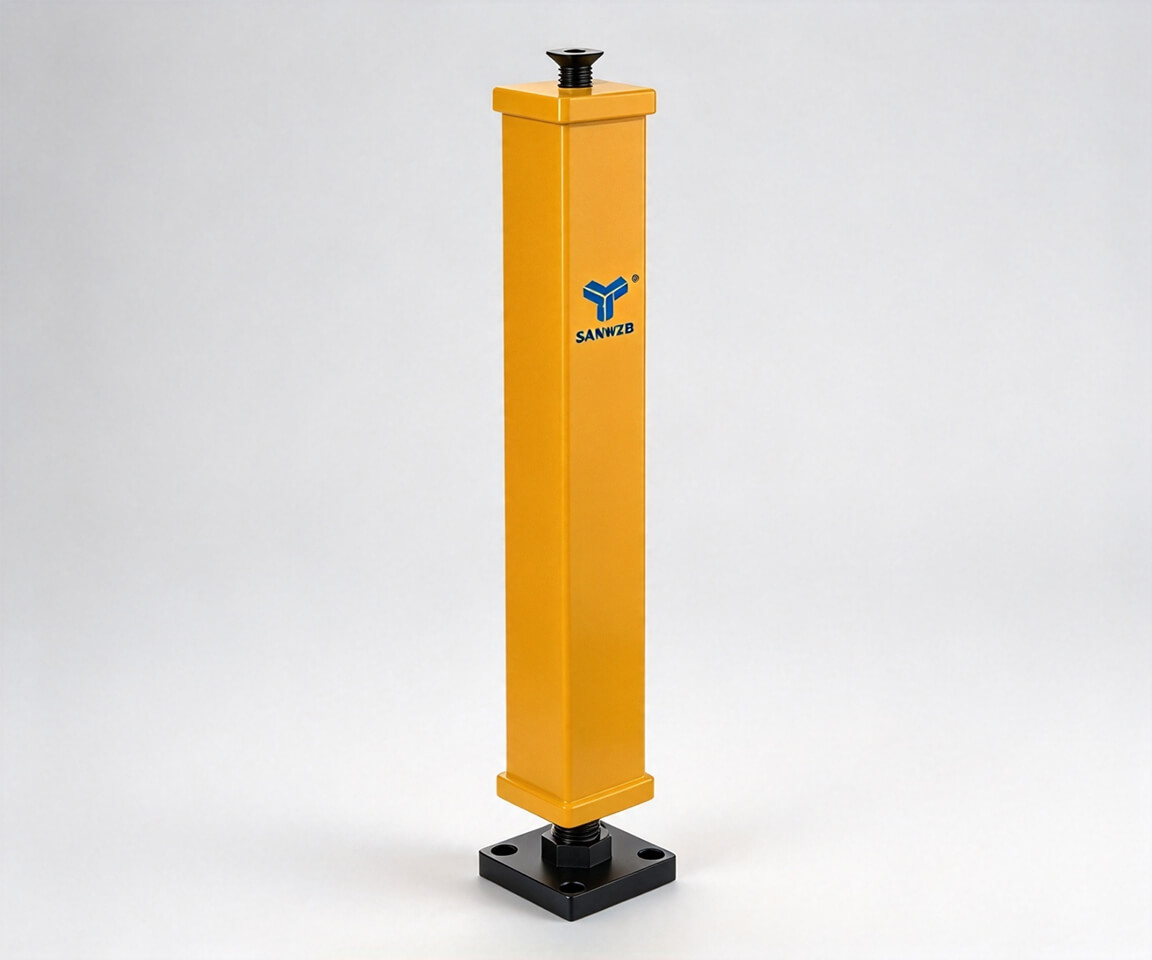

Nine leg configurations plus three foot-pad accessories — fixed, telescoping, mobile, or hydraulic — to match your load, floor conditions, and how the table gets used.

Choose the Right Base for Your Table

Every welding job puts different demands on a table's base: dead weight, floor conditions, and how often the table needs to move. SANWZB builds five leg families around that reality, from fine-adjustable standard feet to heavy-duty mobile casters, so you can spec the right base once and get it right.

Holding Frame

Baked Paint Finish

D28 Series		D22 Series		D16 Series
Dimensions	Product Code	Dimensions	Product Code	Dimensions	Product Code
1500×1000×400	SWK28-71301	1500×1000×400	SWK22-71301	1500×1000×100	SWK16-71301
1500×1500×400	SWK28-71302	1500×1500×400	SWK22-71302	1500×1500×100	SWK16-71302
2000×1000×400	SWK28-71303	2000×1000×400	SWK22-71303	2000×1000×100	SWK16-71303
2400×1200×400	SWK28-71304	2400×1200×400	SWK22-71304	2400×1200×100	SWK16-71304
3000×1500×400	SWK28-71305	3000×1500×400	SWK22-71305	3000×1500×400	SWK16-71305
4000×2000×400	SWK28-71306	4000×2000×400	SWK22-71306
3000×2000×400	SWK28-71307	3000×2000×400	SWK22-71307

◆ Ordering Remark: Product Name + Product Code + Specification + Quantities

Heavy Load Solution

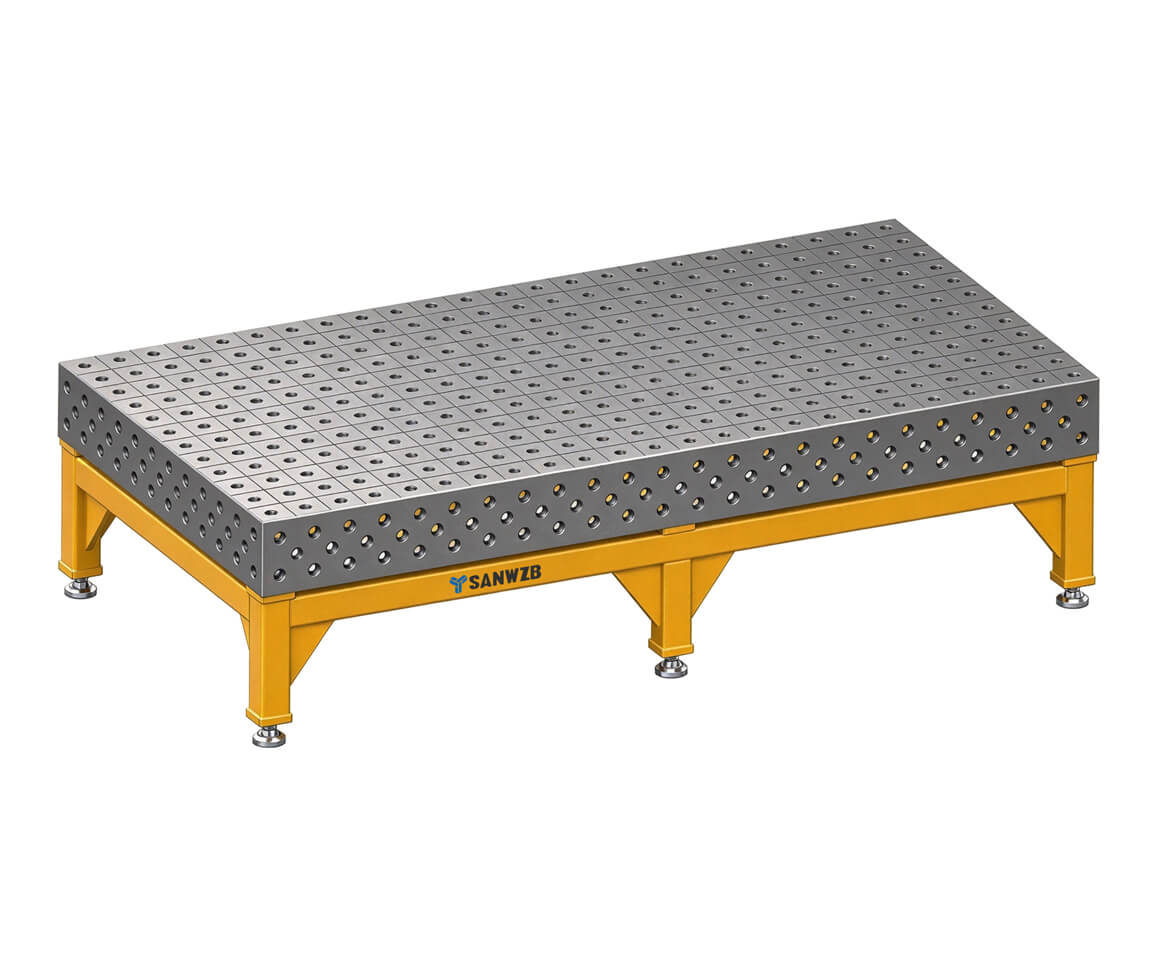

Holding Frame

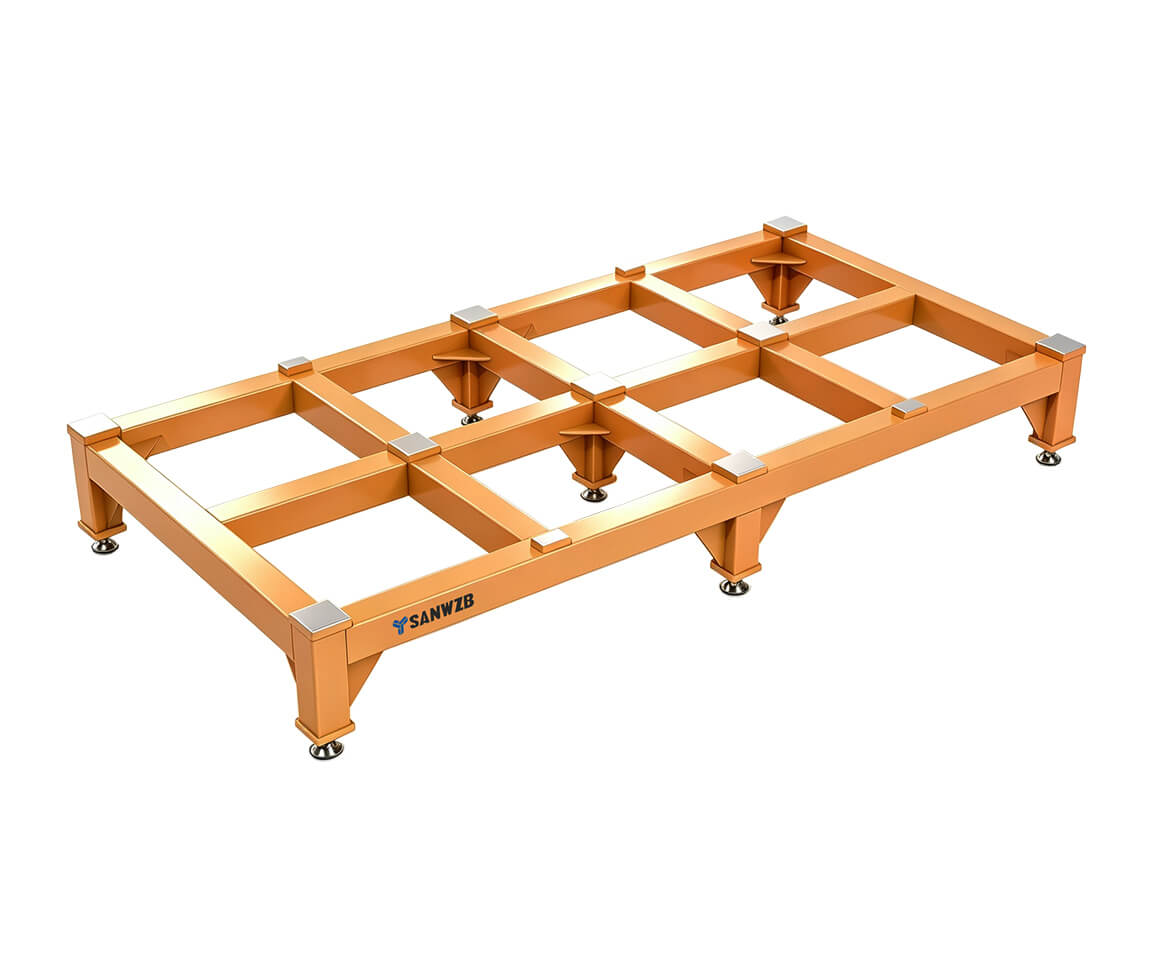

A heavier frame for heavier work. The Holding Frame is built to distribute load evenly under large or high-tonnage tables, so precision holds up under repeated daily use. Its rigid steel structure prevents sagging or flexing, keeping large structural weldments — such as steel frames, heavy machinery components, and bridge sections — dimensionally accurate through long production runs. Ideal for shops running high-capacity tables on heavy-duty fabrication work, where the table stays flat and true shift after shift.

Rail Installation Solution

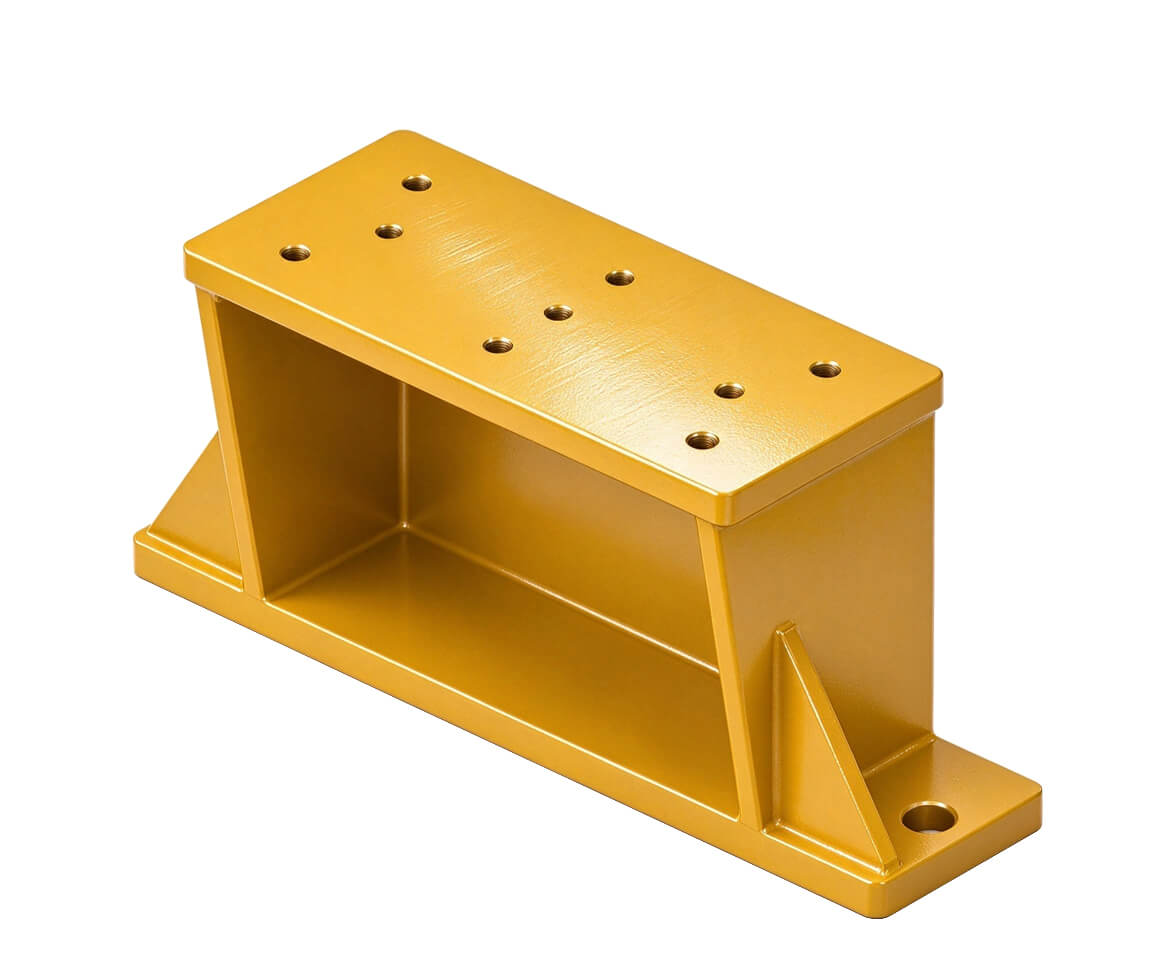

Support Module

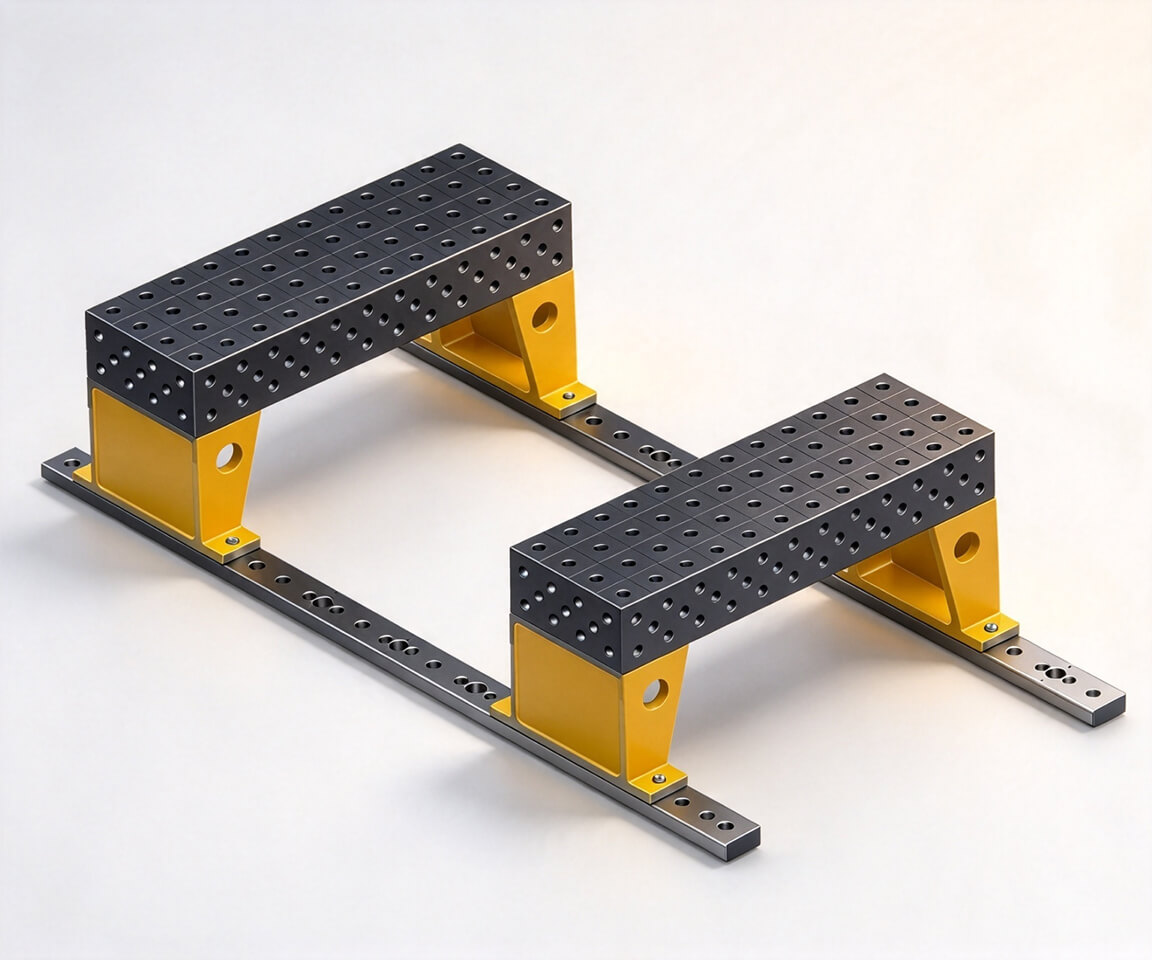

The Support Module bolts onto a precision rail system, letting you build tables as long as the job requires — without losing alignment along the run. Standard modules keep long welding lines straight for precision work on extended parts, such as frame rails, long structural tubes, and multi-station fabrication lines. Because the modules bolt together on the rail, you can add or reposition sections as your layout grows, all while maintaining tight linear accuracy across the entire work area.

Free Lifting Solution

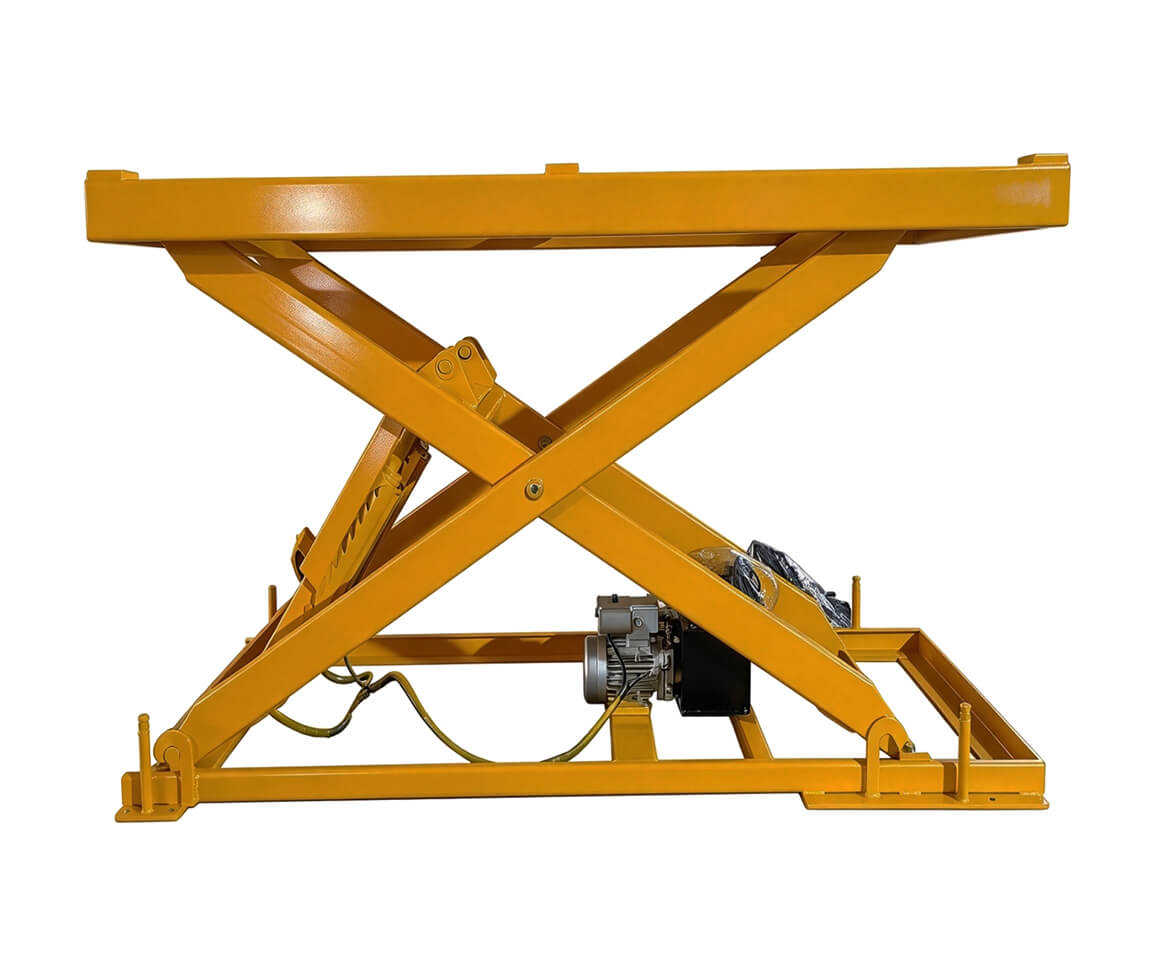

Hydraulic Scissor Lifting Frame

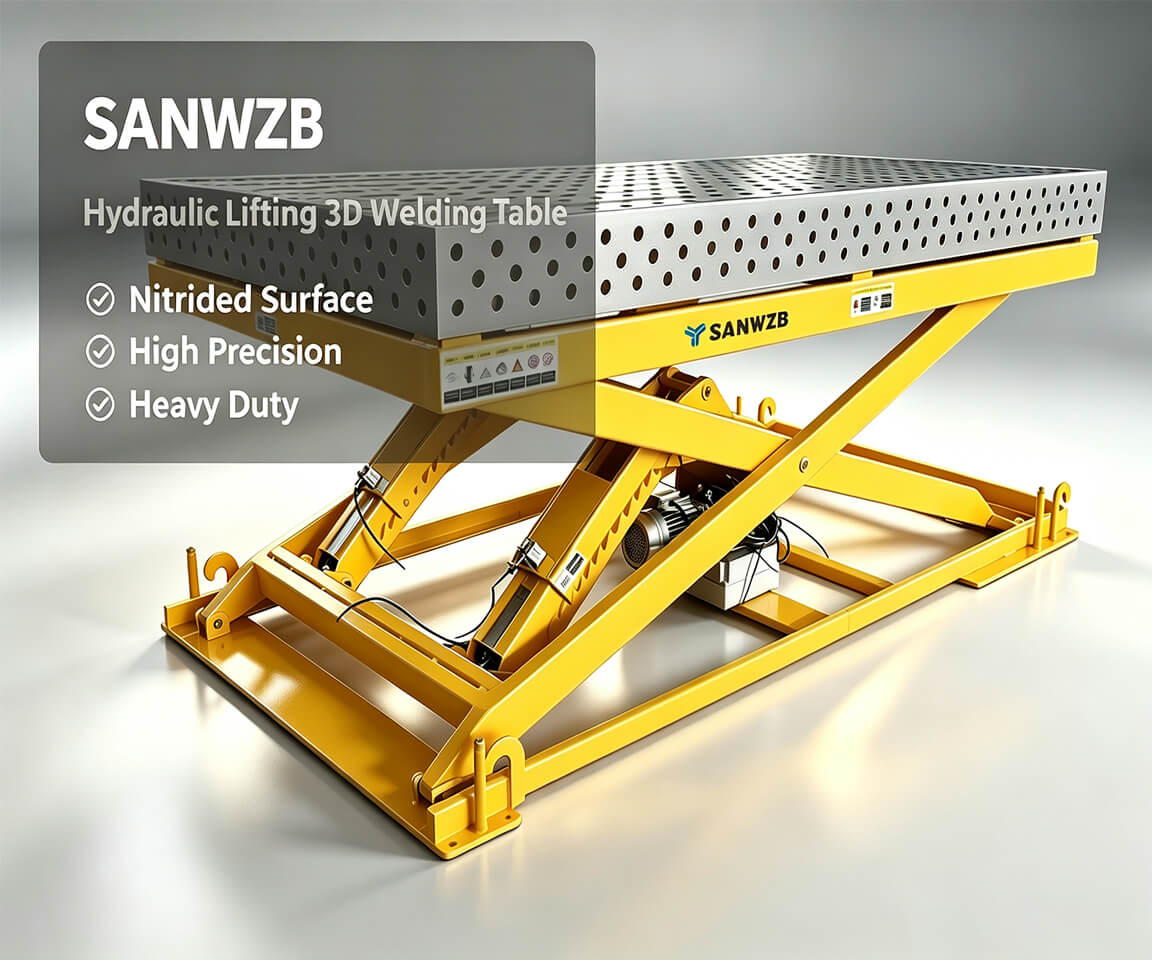

The Hydraulic Scissor Lifting Frame delivers powered height adjustment for shops that reposition the table throughout the day — smooth scissor-lift travel across the full range, no manual cranking. Reinforced square-tube construction with a dual-rack anti-slip design and industrial-grade hydraulics provides stable, precise height changes shift after shift. Built for tables that get repositioned often — whether adjusting to operator height, switching between welding and assembly stations, or moving between different job setups.

Support Leg Height Calculation

3D Table Support Leg Height Marking Drawing

2D Table Support Leg Height Marking Drawing

How to Read the Part Number

Part Code Key:×+

	Square Tube Symbol
	Square Tube Size
	Support Foot Main Body Length
	Foot Pad or Caster Height

Support Leg Heighth = H − h1 − h2

Worked Example

If the total height of the D28 3D table is 750 mm (29.5 in), Support Leg Height = 750 − 200 − 50 = 500 mm (19.7 in), product code SWK28-71004.
