Clamps

Versatile clamping systems for every welding fixture setup. From screw clamps with 180° adjustable positioning to toggle clamps, thread bushing clamps and clamping bridges — our modular clamp line adapts to any workpiece geometry and clamping situation. Fast, ergonomic one-hand operation ensures secure hold in demanding fabrication environments.

Welding Station
Clamping Detail
Robot Welding
Heavy Duty

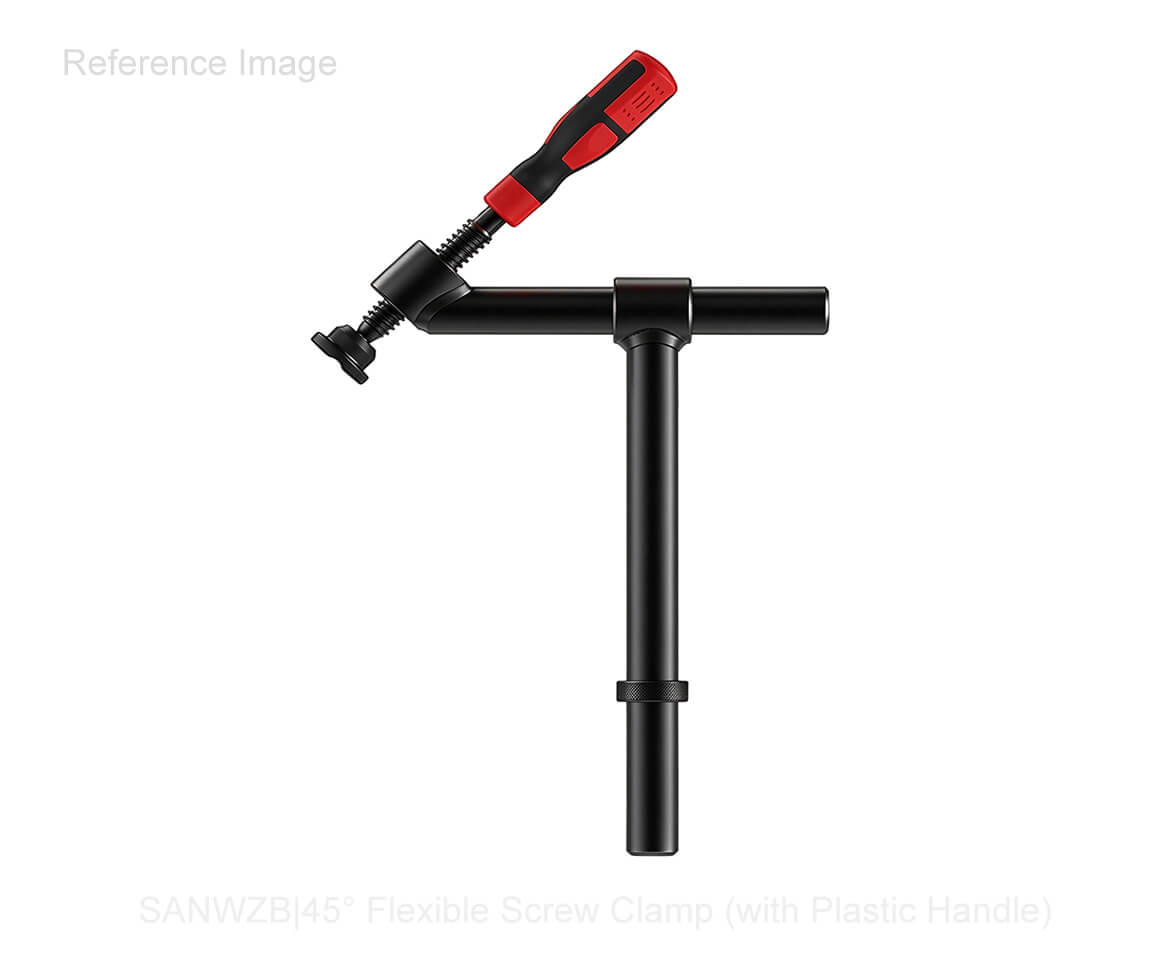

45° Flexible Screw Clamp With Plastic Handle

D28 45° Flexible Screw Clamp

Material: Q235B(S235JR) Steel Tube | Surface Finish: See Description
Fast, powerful and accurate clamping at 45° angles for a wide range of workpieces. The vertical tube includes a stop ring for quick height pre-positioning, and contact pads are interchangeable (e.g. stainless steel). The extendable arm enables free-position clamping.
45° Flexible Screw Clamp With Plastic Handle Ref.1
Ref. 1

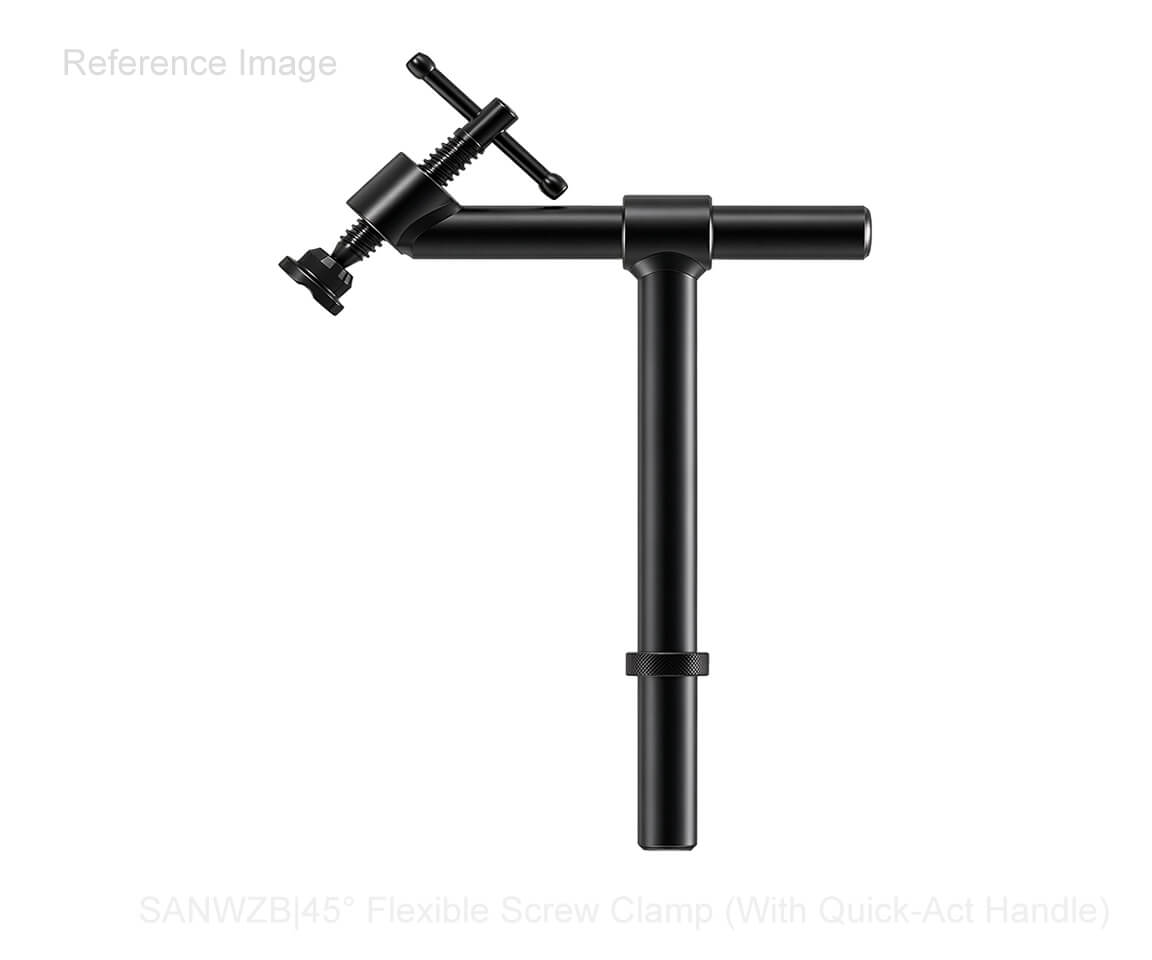

45° Flexible Screw Clamp With Quick-Act Handle Ref.2
Ref. 2

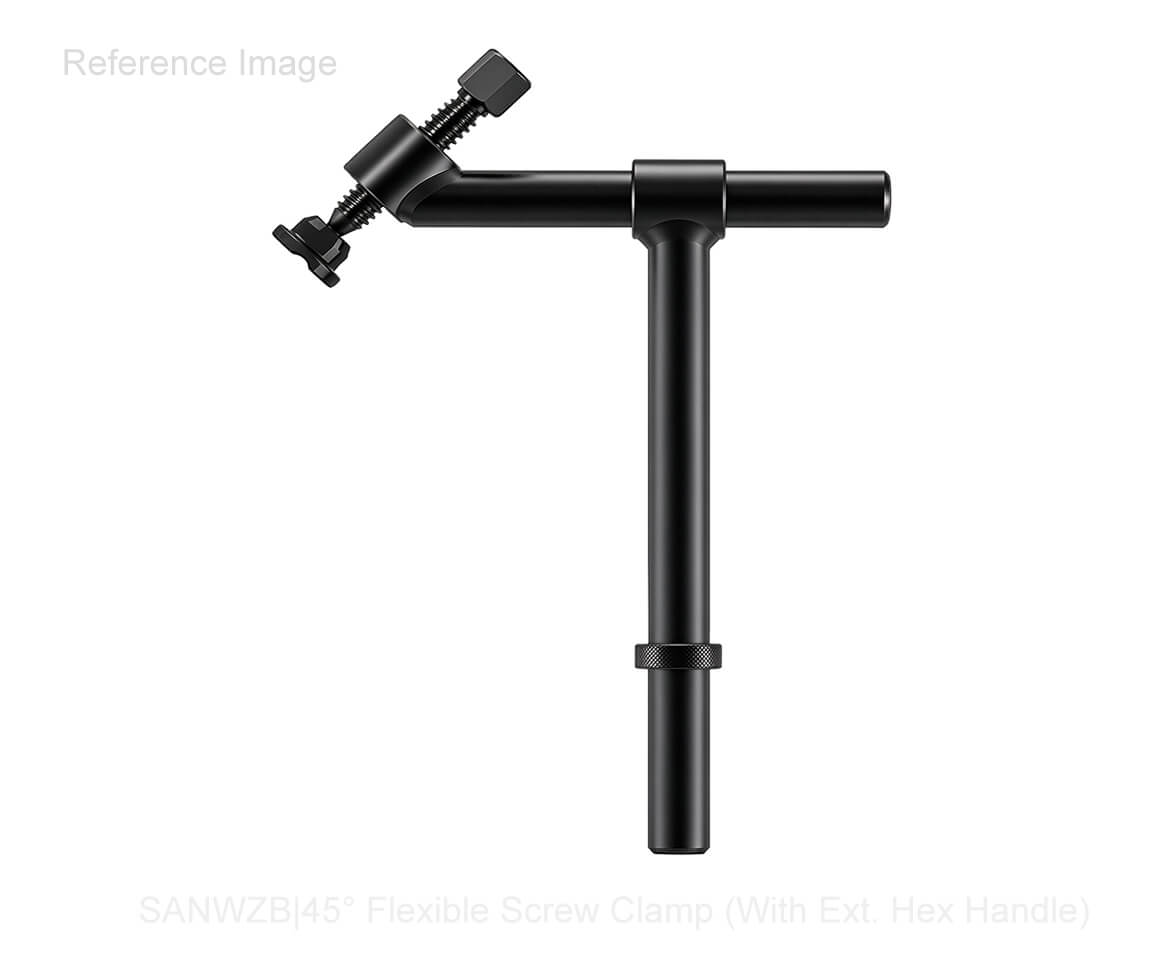

45° Flexible Screw Clamp With Ext. Hex Handle Ref.3
Ref. 3
4:3 Image
Ref. 4
4:3 Image
Ref. 5
4:3 Image
Ref. 6
4:3 Image
Ref. 7
Ref. Product Name Specification (mm) Product Code Ref. Weight (kg) Description
Ref. 145° Flexible Screw Clamp (With Plastic Handle)220x220SWK28-520012.3
220x320SWK28-520022.4
Ref. 245° Flexible Screw Clamp (With Quick-Act Handle)220x220SWK28-521012.3
220x320SWK28-521022.4
Ref. 345° Flexible Screw Clamp (With Ext. Hex Handle)220x220SWK28-522012.3
220x320SWK28-522022.4
Ref. Product Name Specification (mm) Product Code Ref. Weight (kg) Description
Ref. 145° Flexible Screw Clamp (With Plastic Handle)220x220SWK22-52001-
220x320SWK22-52002-
Ref. 245° Flexible Screw Clamp (With Quick-Act Handle)220x220SWK22-52101-
220x320SWK22-52102-
Ref. 345° Flexible Screw Clamp (With Ext. Hex Handle)220x220SWK22-52201-
220x320SWK22-52202-
Ref. Product Name Specification (mm) Product Code Ref. Weight (kg) Description
Ref. 145° Flexible Screw Clamp (With Plastic Handle)160x200SWK16-52001-
Ref. 245° Flexible Screw Clamp (With Quick-Act Handle)160x200SWK16-52101-
Ref. 345° Flexible Screw Clamp (With Ext. Hex Handle)160x200SWK16-52201-

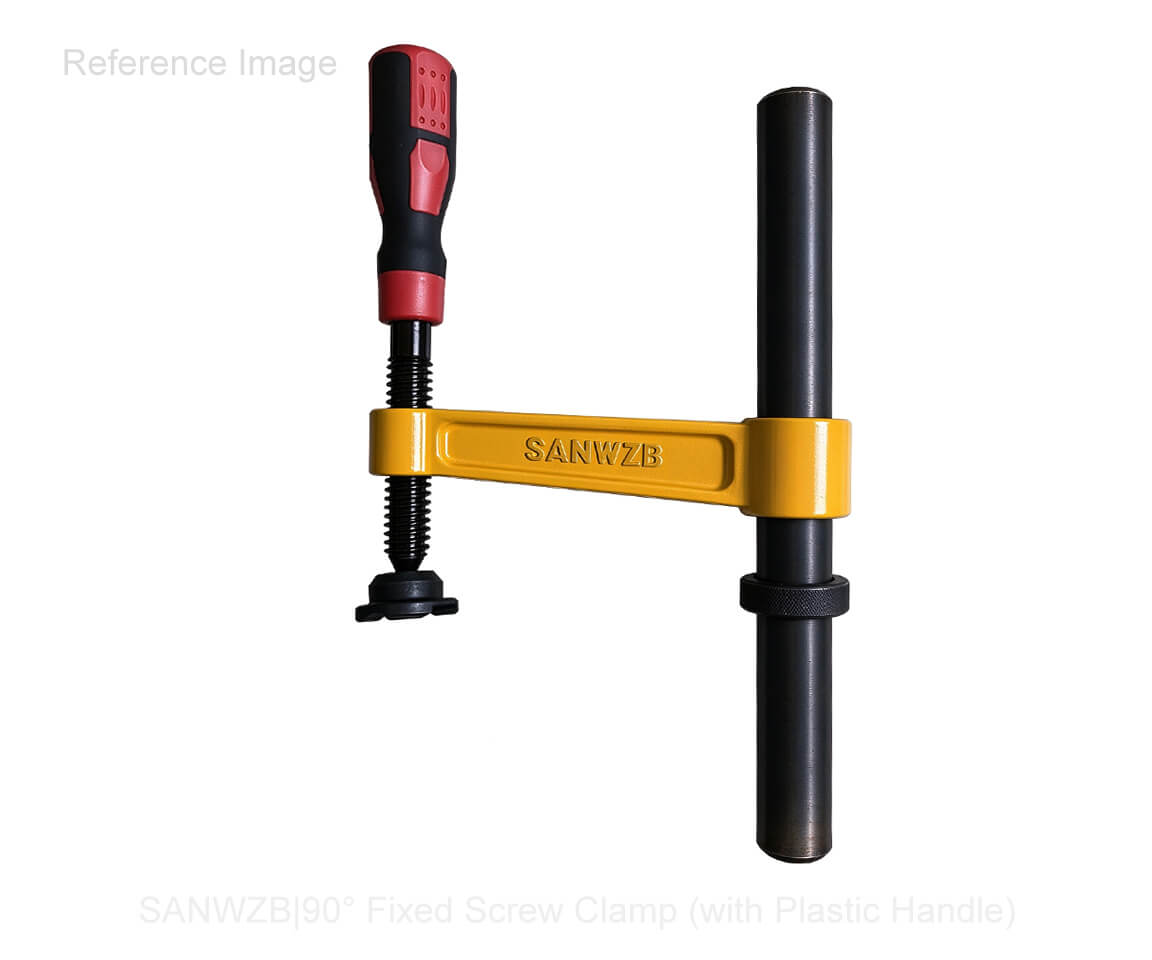

90° Fixed Screw Clamp (with Plastic Handle)

D28 90° Screw Clamp

Material: Q235B(S235JR) Steel Tube | Surface Finish: See Description
Fast, powerful and accurate clamping at 90° angles for a wide range of workpieces. The vertical tube includes a stop ring for quick height pre-positioning, and contact pads are interchangeable (e.g. stainless steel). The fixed arm accommodates a clamping bridge for multi-point clamping.
90° Fixed Screw Clamp With Plastic Handle Ref.1
Ref. 1

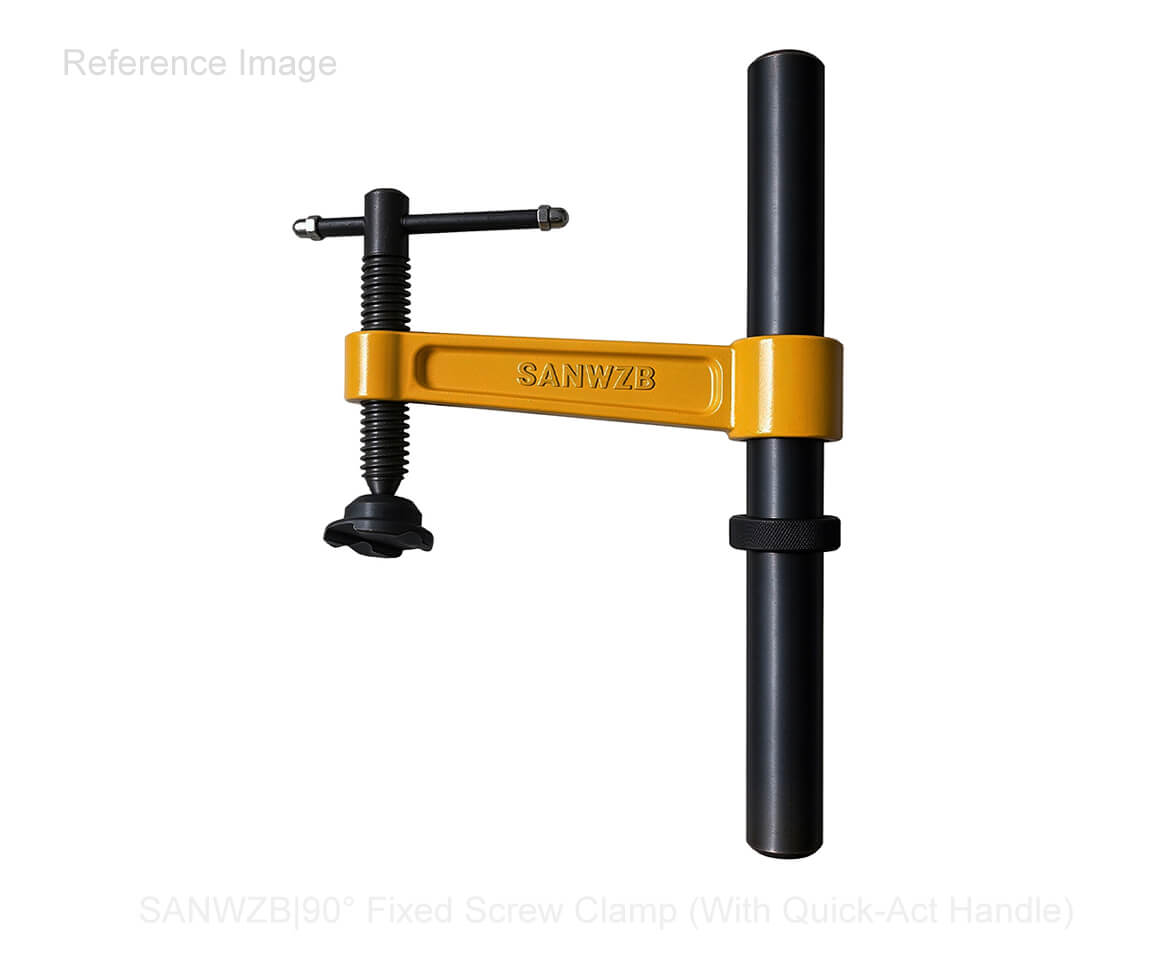

90° Fixed Screw Clamp With Quick-Act Handle Ref.2
Ref. 2

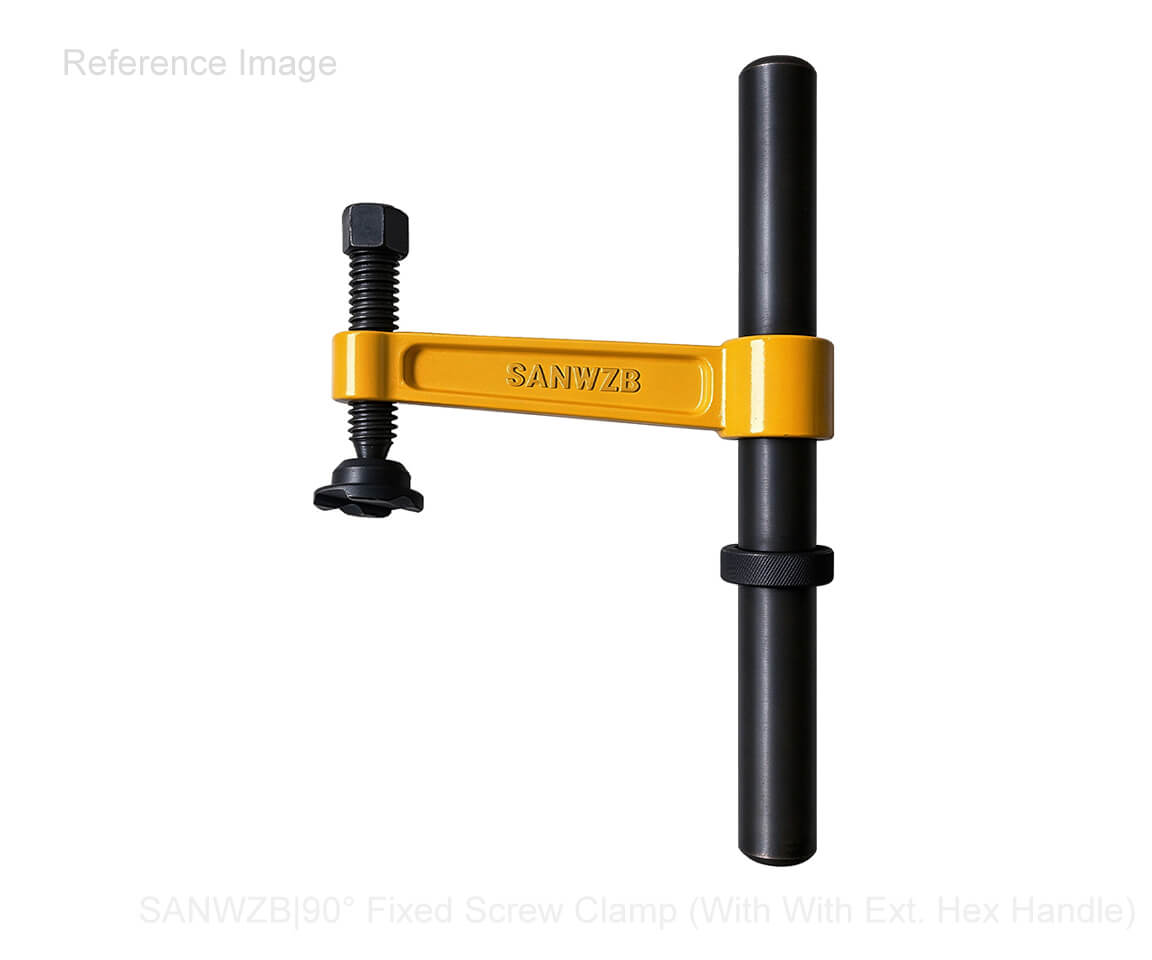

90° Fixed Screw Clamp With Ext. Hex Handle Ref.3
Ref. 3

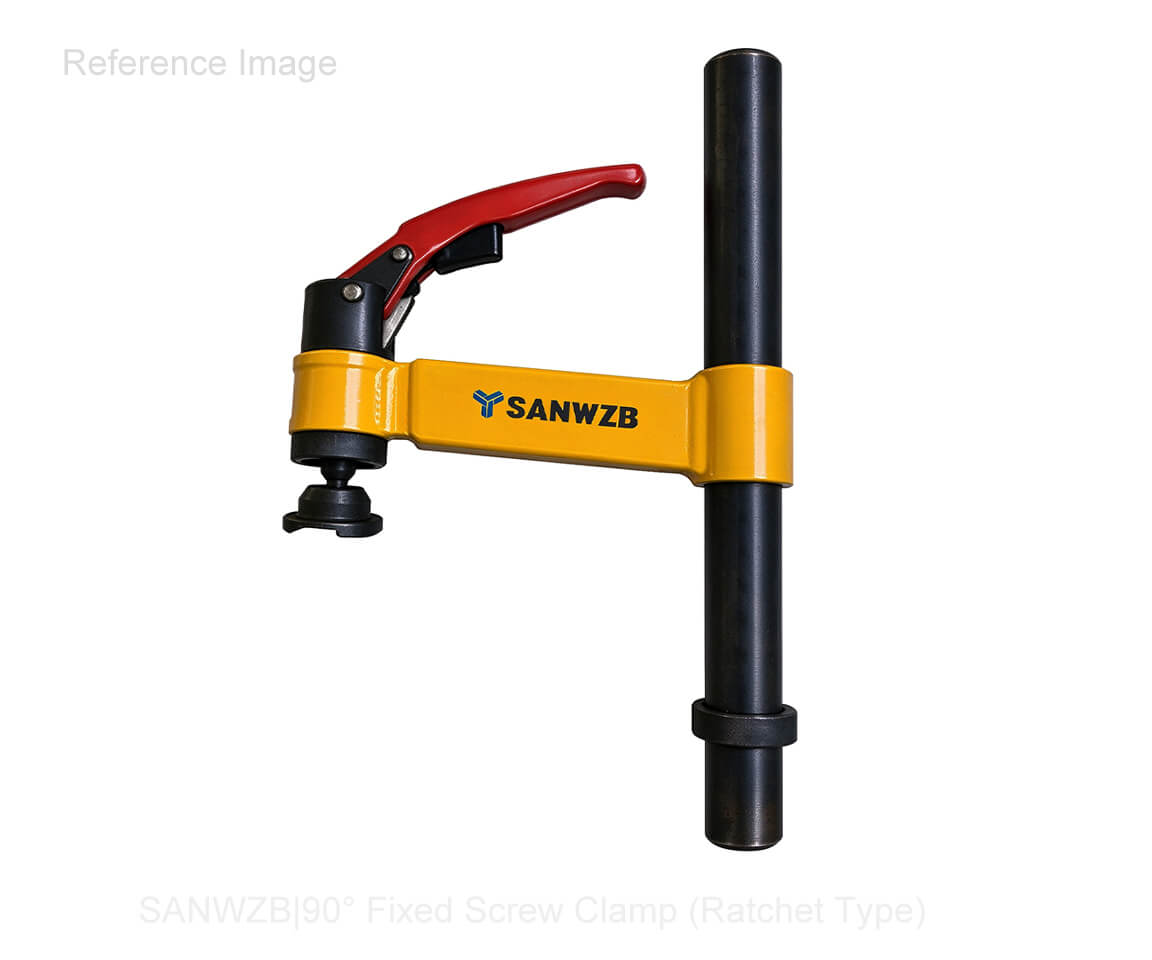

90° Fixed Screw Clamp Ratchet Type Ref.4
Ref. 4

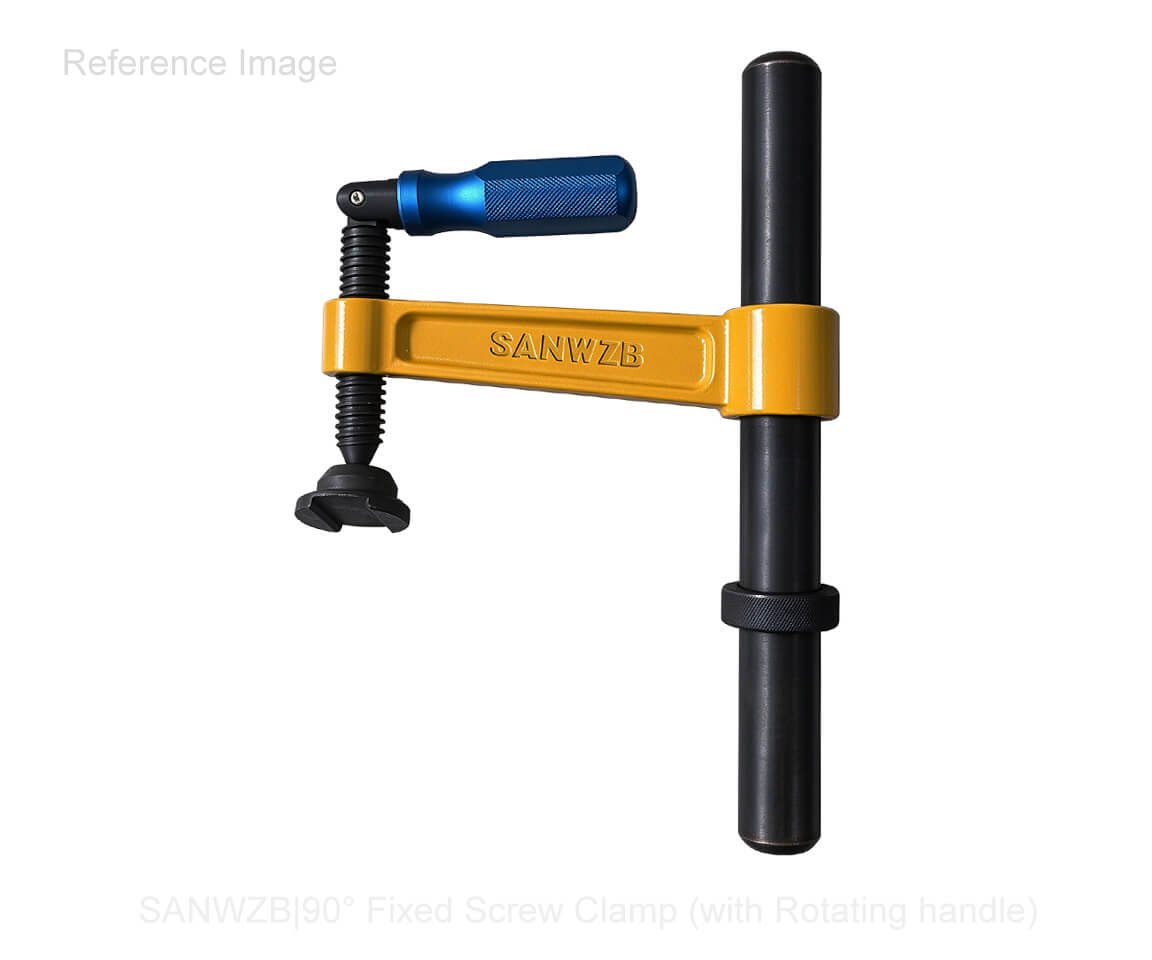

90° Fixed Screw Clamp With Rotating Handle Ref.5
Ref. 5

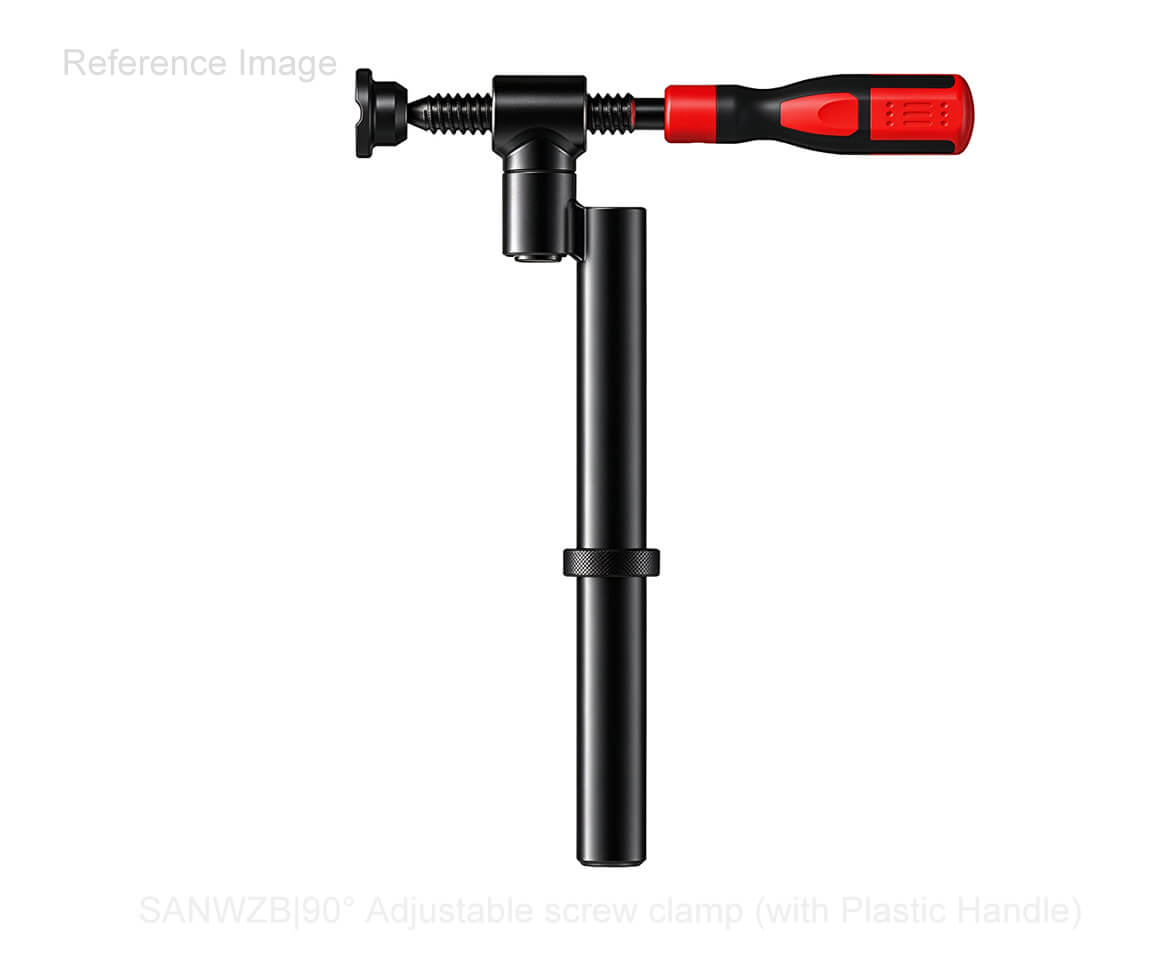

90° Adjustable Screw Clamp With Plastic Handle Ref.6
Ref. 6
Ref. Product Name Specification (mm) Product Code Ref. Weight (kg) Description
Ref. 190° Fixed Screw Clamp (With Plastic Handle)150x320SWK28-500012.3
200x320SWK28-500022.4
Ref. 290° Fixed Screw Clamp (With Quick-Act Handle)150x320SWK28-501012.3
200x320SWK28-501022.4
Ref. 390° Fixed Screw Clamp (With Ext. Hex Handle)150x320SWK28-502012.3
200x320SWK28-502022.3
Ref. 490° Fixed Screw Clamp (Ratchet Type)150x320SWK28-503012.3
200x320SWK28-503022.4
Ref. 590° Fixed Screw Clamp (With Rotating Handle)150x320SWK28-504012.4
200x320SWK28-504022.4
Ref. 690° Adjustable Screw Clamp (With Plastic Handle)100x320SWK28-530011.6
Ref. Product Name Specification (mm) Product Code Ref. Weight (kg) Description
Ref. 190° Fixed Screw Clamp (With Plastic Handle)150x320SWK22-50001-
200x320SWK22-50002-
Ref. 290° Fixed Screw Clamp (With Quick-Act Handle)150x320SWK22-50101-
200x320SWK22-50102-
Ref. 390° Fixed Screw Clamp (With Ext. Hex Handle)150x320SWK22-50201-
200x320SWK22-50202-
Ref. 490° Fixed Screw Clamp (Ratchet Type)150x320SWK22-50301-
200x320SWK22-50302-
Ref. 590° Fixed Screw Clamp (With Rotating Handle)150x320SWK22-50401-
200x320SWK22-50402-
Ref. 690° Adjustable Screw Clamp (With Plastic Handle)100x320SWK22-53001-
Ref. Product Name Specification (mm) Product Code Ref. Weight (kg) Description
Ref. 190° Fixed Screw Clamp (With Plastic Handle)120x200SWK16-50001-
Ref. 290° Fixed Screw Clamp (With Quick-Act Handle)120x200SWK16-50101-
Ref. 390° Fixed Screw Clamp (With Ext. Hex Handle)120x200SWK16-50201-
Ref. 690° Adjustable Screw Clamp (With Plastic Handle)100x200SWK16-53001-
180° Flexible Screw Clamp With Plastic Handle

D28 180° Flexible Screw Clamp

Material: Q235B(S235JR) Steel Tube | Surface Finish: See Description
Fast, powerful and accurate clamping at 180° free-position angles for a wide range of workpieces. The vertical tube includes a stop ring for quick height pre-positioning, and contact pads are interchangeable (e.g. stainless steel). The fixed arm accommodates a clamping bridge for multi-point clamping.

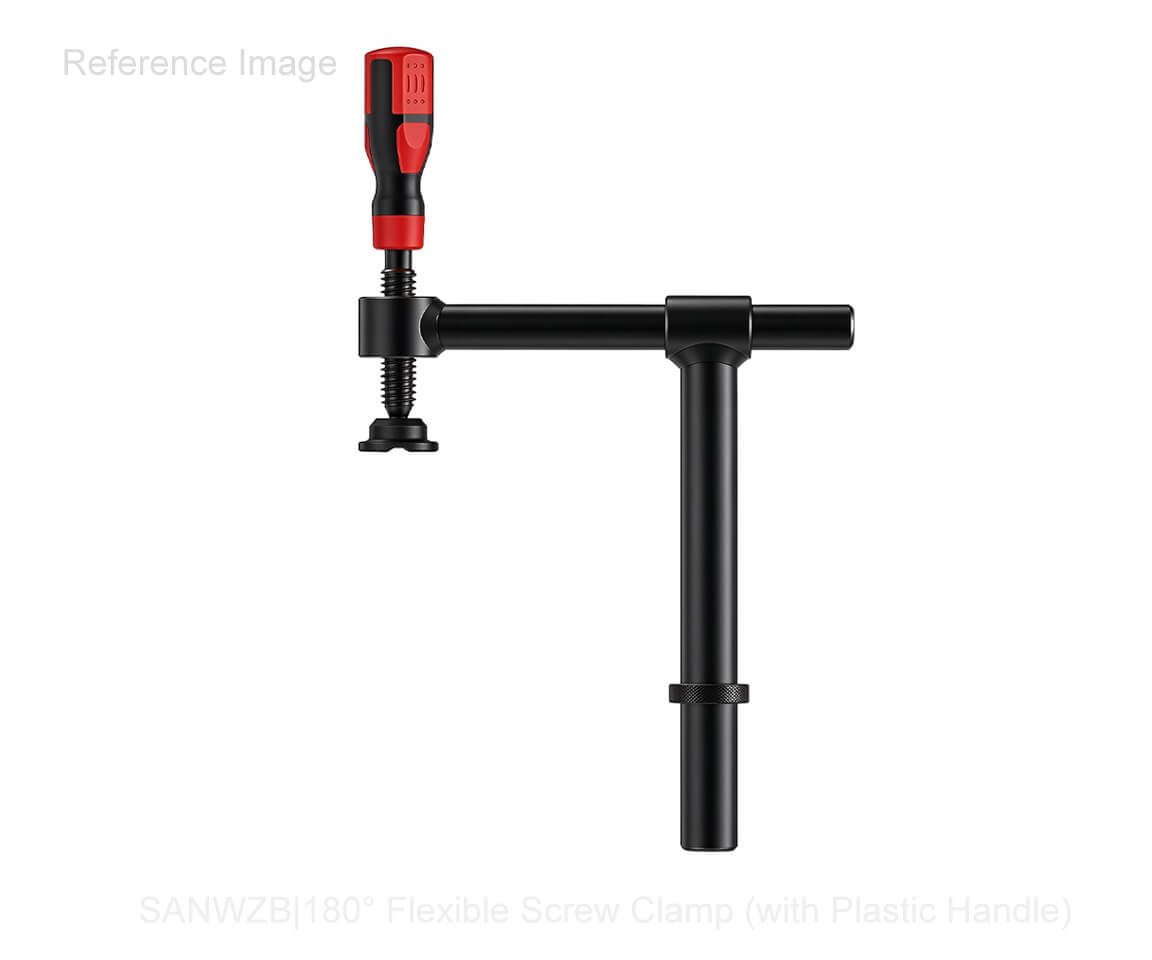

180° Flexible Screw Clamp With Plastic Handle Ref.1
Ref. 1

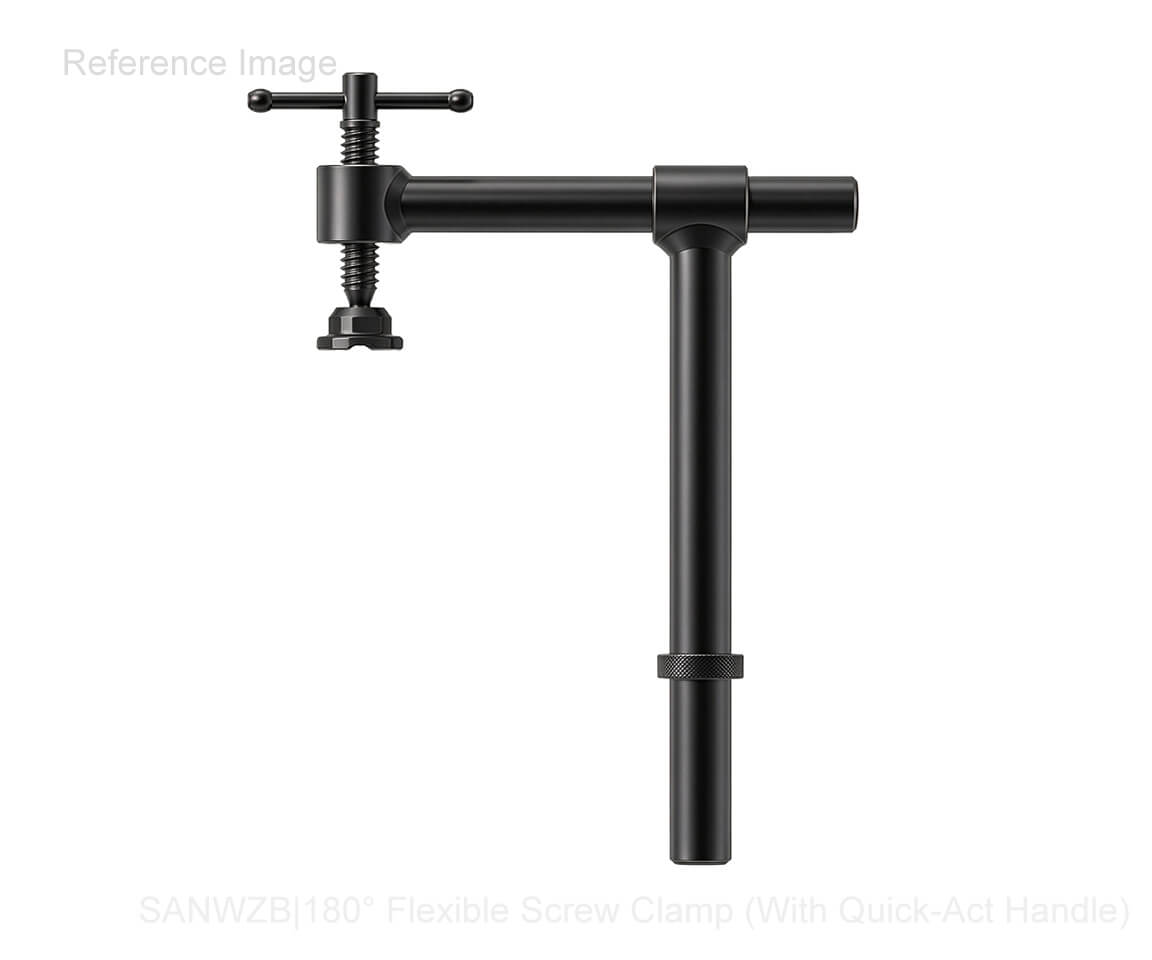

180° Flexible Screw Clamp With Quick-Act Handle Ref.2
Ref. 2

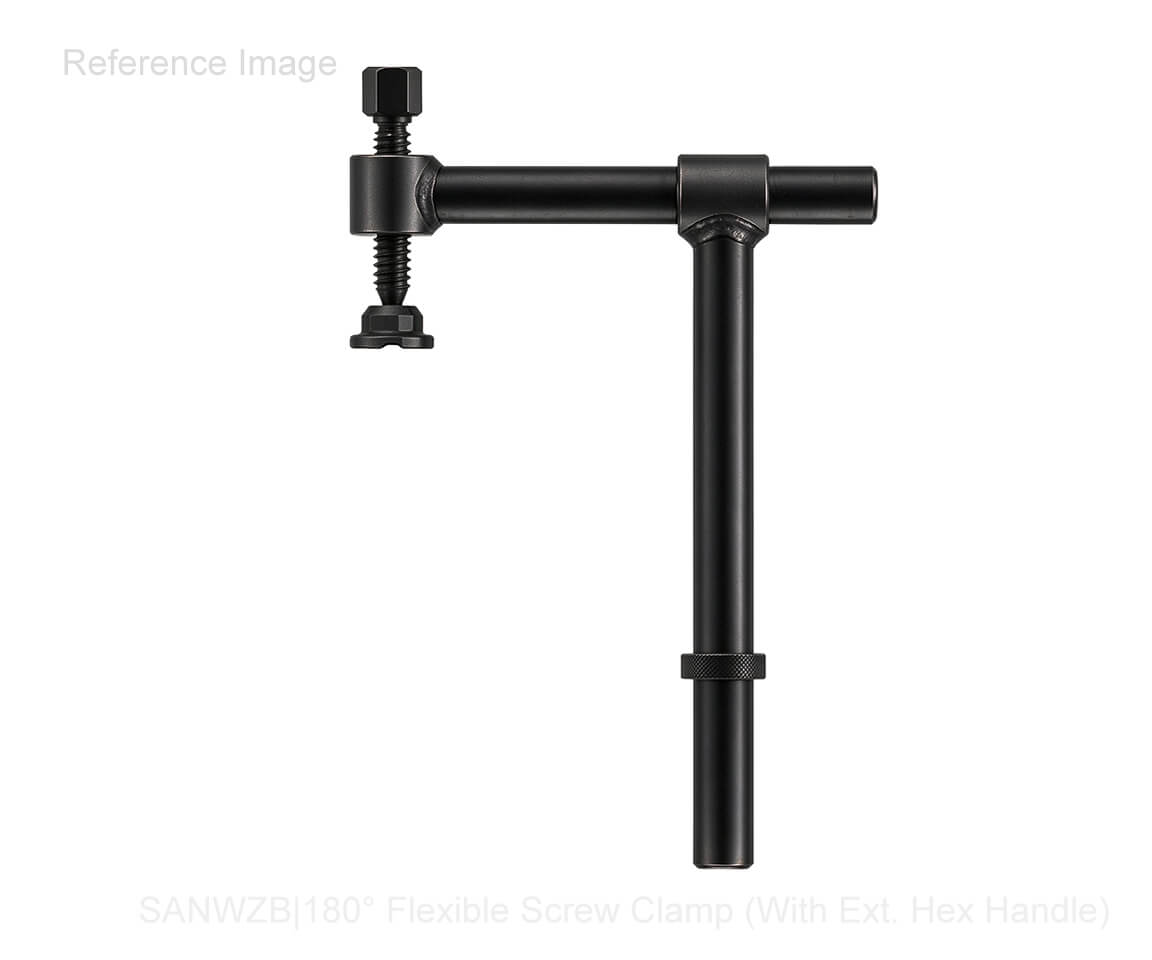

180° Flexible Screw Clamp With Ext. Hex Handle Ref.3
Ref. 3

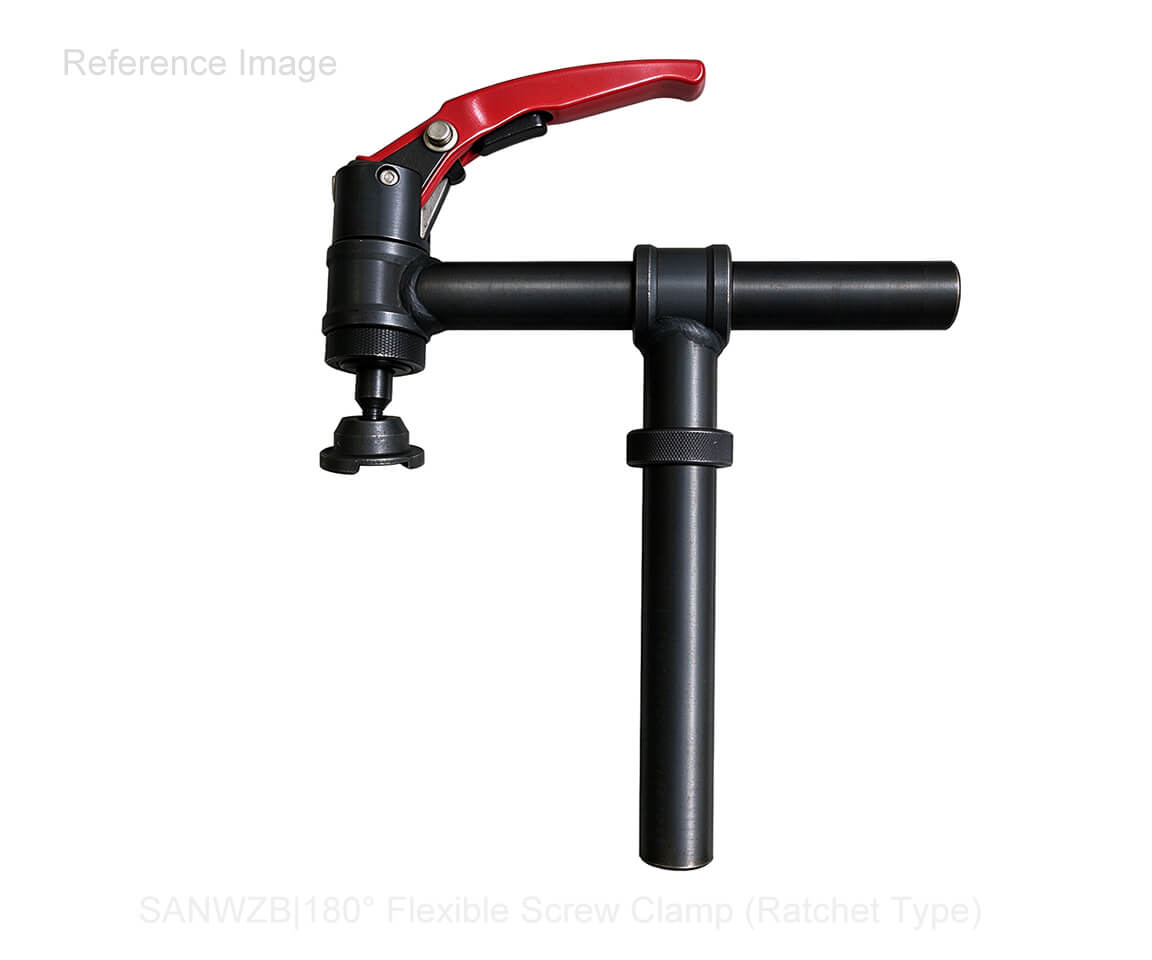

180° Flexible Screw Clamp Ratchet Type Ref.4
Ref. 4

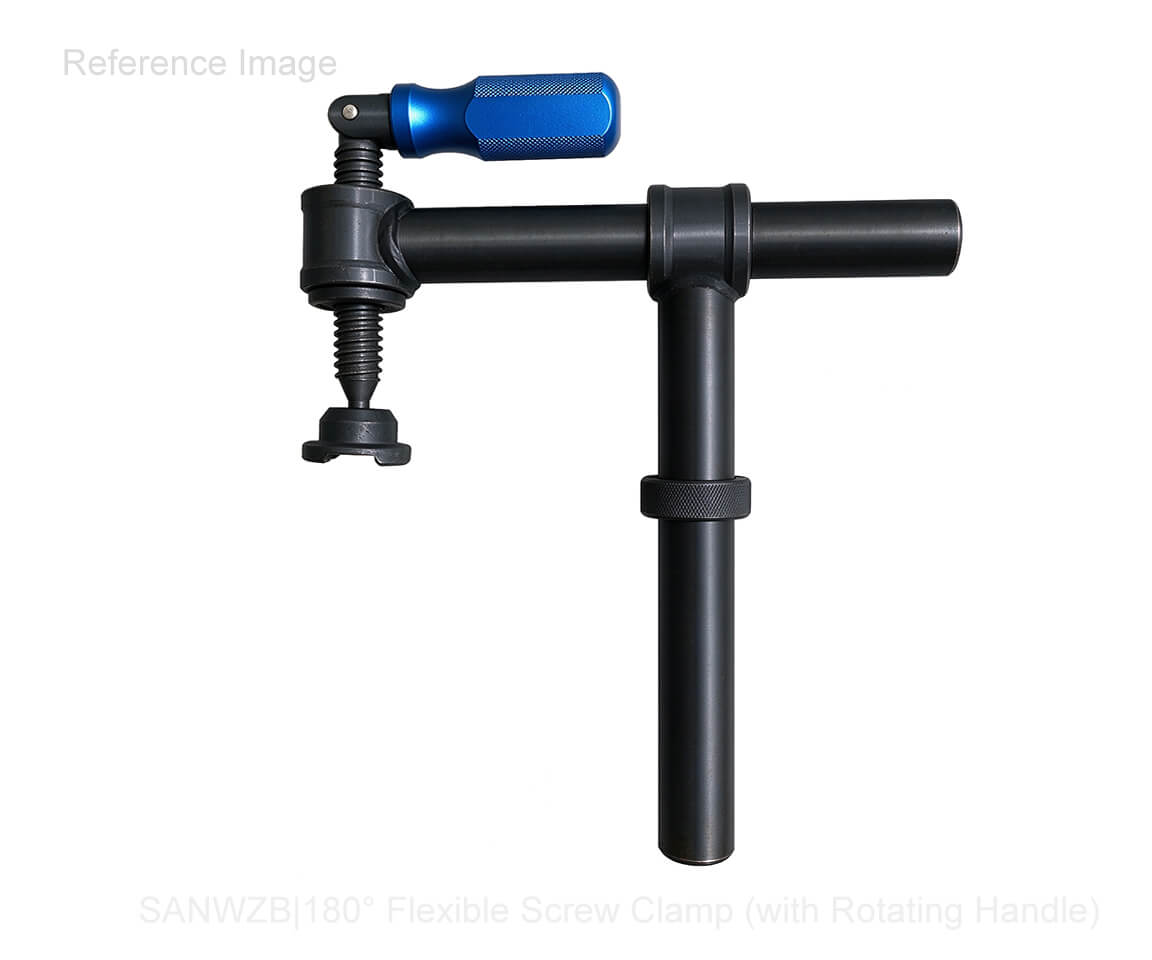

180° Flexible Screw Clamp With Rotating Handle Ref.5
Ref. 5
Ref. Product Name Specification (mm) Product Code Ref. Weight (kg) Description
Ref. 1180° Flexible Screw Clamp (with Plastic Handle)220x220SWK28-510012.3
220x320SWK28-510022.4
Ref. 2180° Flexible Screw Clamp (With Quick-Act Handle)220x220SWK28-511012.3
220x320SWK28-511022.4
Ref. 3180° Flexible Screw Clamp (With Ext. Hex Handle)220x220SWK28-512012.3
220x320SWK28-512022.4
Ref. 4180° Flexible Screw Clamp (Ratchet Type)220x220SWK28-513012.3
220x320SWK28-513022.3
Ref. 5180° Flexible Screw Clamp (With Rotating Handle)220x220SWK28-514012.3
220x320SWK28-514022.4
Ref. Product Name Specification (mm) Product Code Ref. Weight (kg) Description
Ref. 1180° Flexible Screw Clamp (with Plastic Handle)220x220SWK22-51001-
220x320SWK22-51002-
Ref. 2180° Flexible Screw Clamp (With Quick-Act Handle)220x220SWK22-51101-
220x320SWK22-51102-
Ref. 3180° Flexible Screw Clamp (With Ext. Hex Handle)220x220SWK22-51201-
220x320SWK22-51202-
Ref. 4180° Flexible Screw Clamp (Ratchet Type)220x220SWK22-51301-
220x320SWK22-51302-
Ref. 5180° Flexible Screw Clamp (With Rotating Handle)220x220SWK22-51401-
220x320SWK22-51402-
Ref. Product Name Specification (mm) Product Code Ref. Weight (kg) Description
Ref. 1180° Flexible Screw Clamp (with Plastic Handle)160x200SWK16-51001-
Ref. 2180° Flexible Screw Clamp (With Quick-Act Handle)160x200SWK16-51101-
Ref. 3180° Flexible Screw Clamp (With Ext. Hex Handle)160x200SWK16-51201-

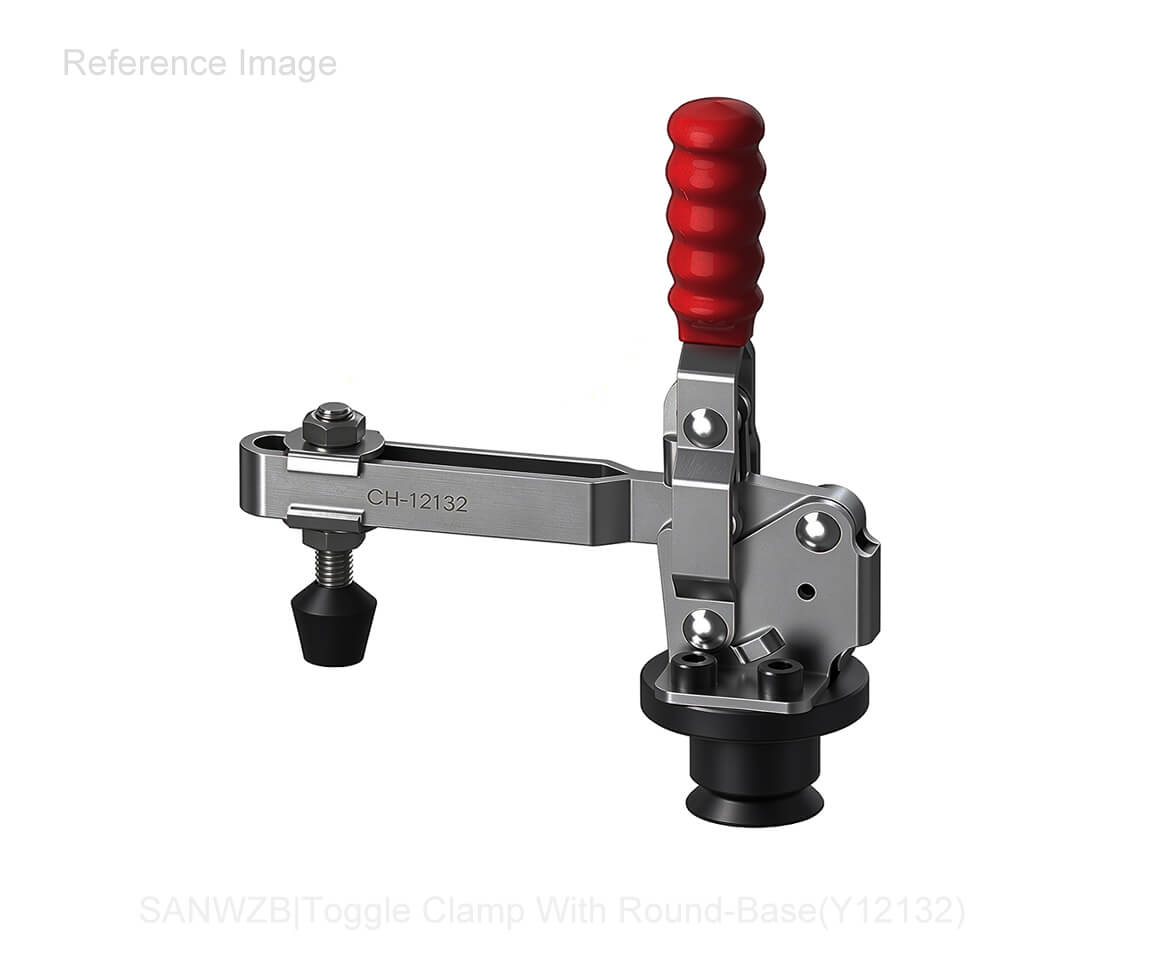

Toggle Clamp With Round-Base (Y12132)

D28 Toggle Clamp

Material: High-quality Steel | Surface Finish: See Description
Ideal for fixed-position workpiece clamping. Once set, the clamp stays firmly in place. Round-base clamps require other modules for mounting, while square-base clamps mount directly onto other modules.
Toggle Clamp With Round-Base Y12132 Ref.1
Ref. 1

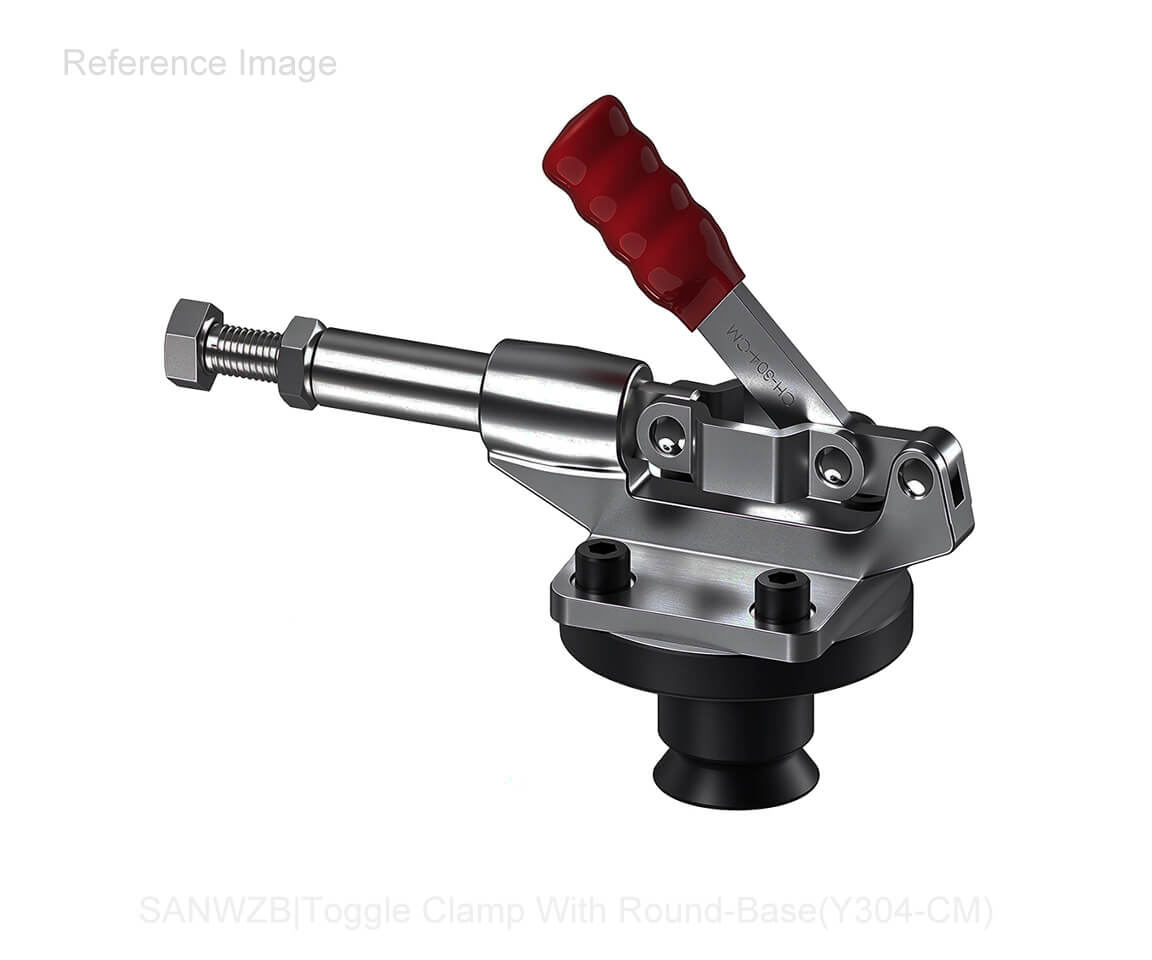

Toggle Clamp With Round-Base Y304-CM Ref.2
Ref. 2

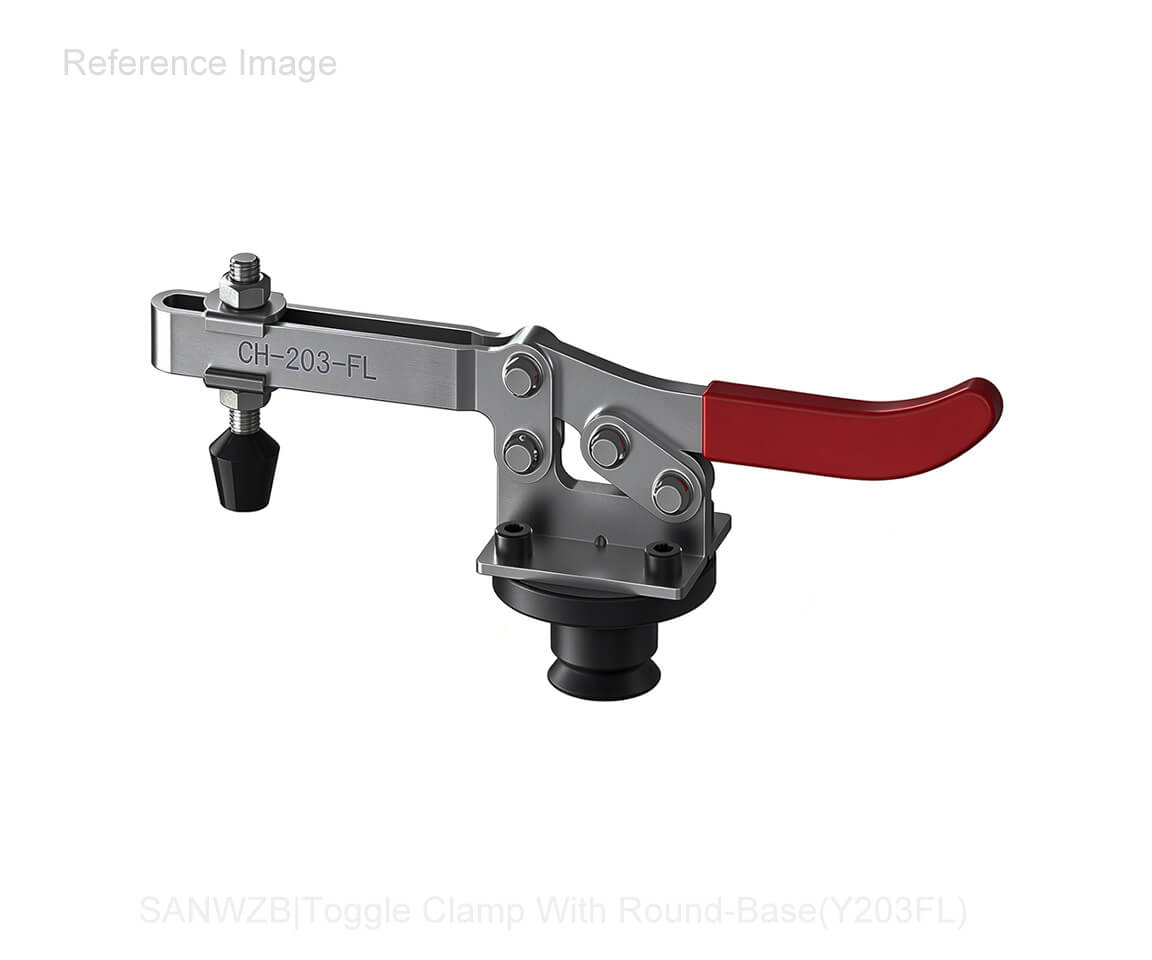

Toggle Clamp With Round-Base Y203FL Ref.3
Ref. 3

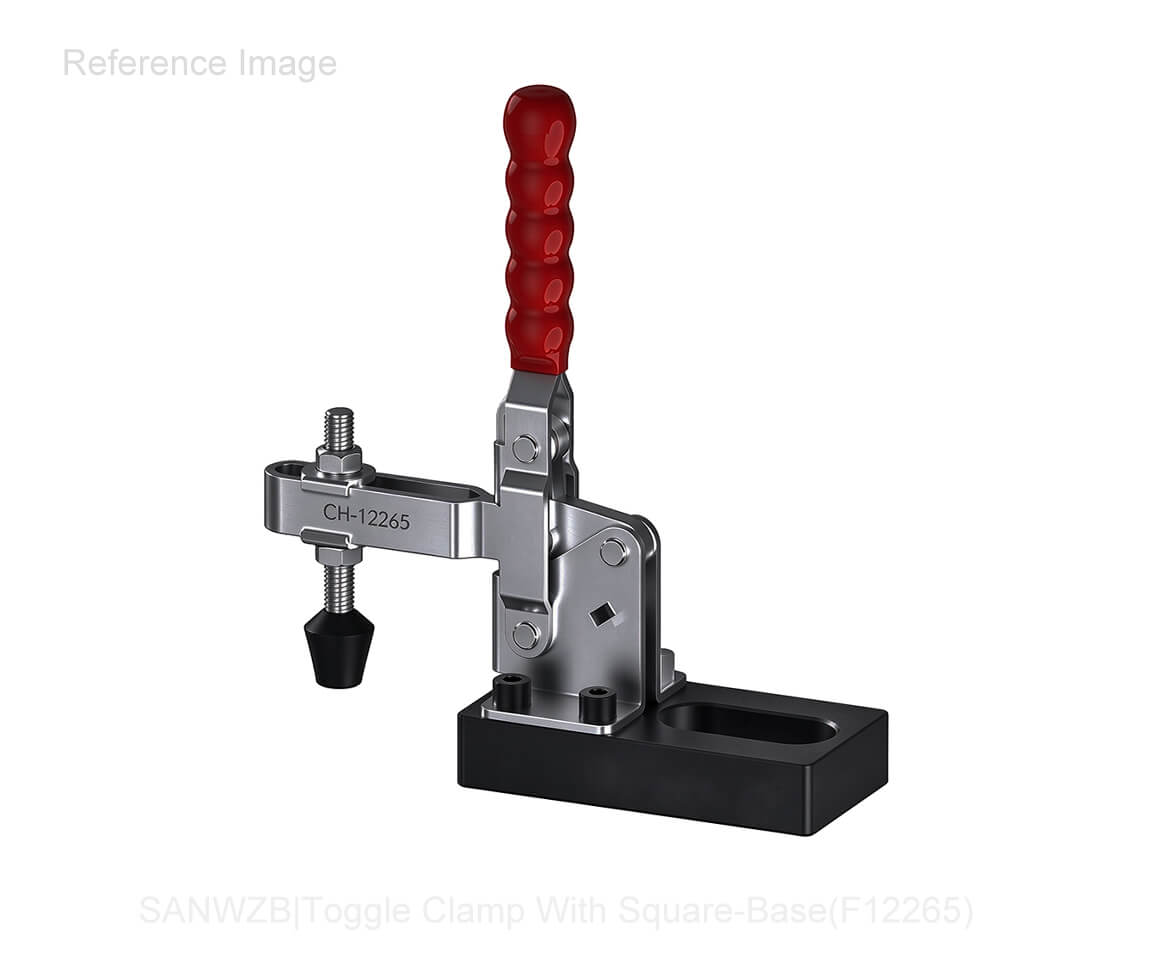

Toggle Clamp With Square-Base F12265 Ref.4
Ref. 4

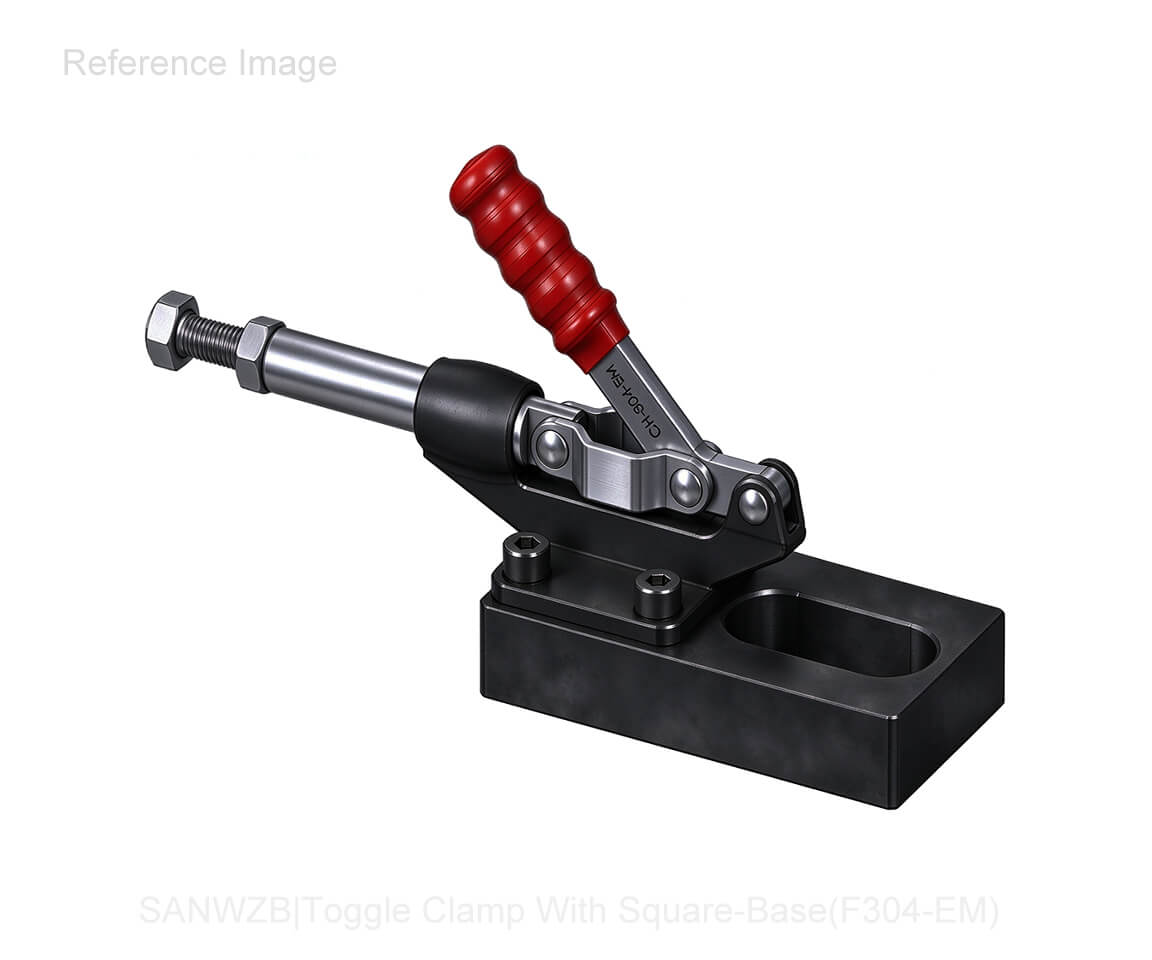

Toggle Clamp With Square-Base F304-EM Ref.5
Ref. 5

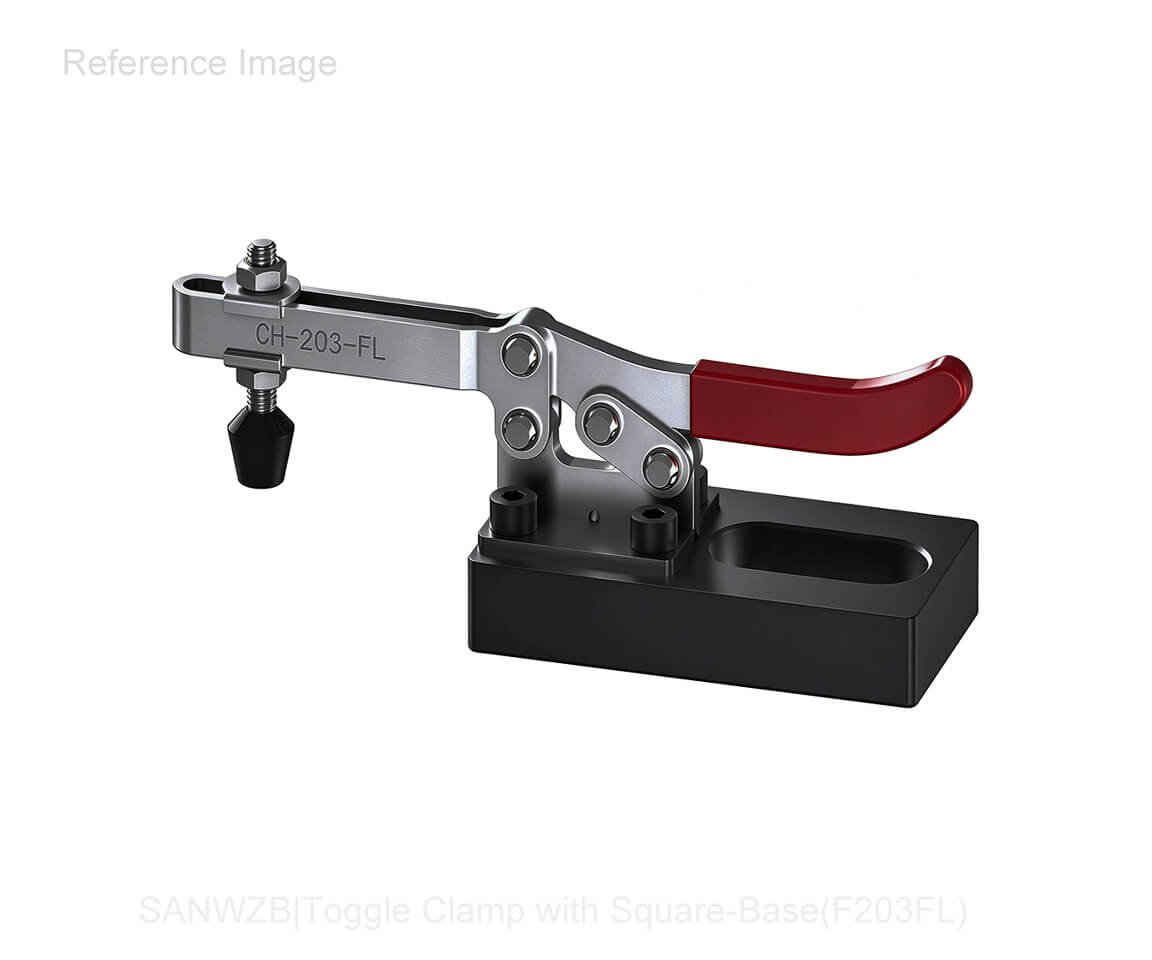

Toggle Clamp With Square-Base F203FL Ref.6
Ref. 6
Ref. Product Name Specification (mm) Product Code Ref. Weight (kg) Description
Ref. 1Toggle Clamp With Round-Base (Y12132)SW-Y12132SWK28-540012.3
Ref. 2Toggle Clamp With Round-Base (Y304-CM)SW-Y304-CMSWK28-540022.4
Ref. 3Toggle Clamp With Round-Base (Y203FL)SW-Y203FLSWK28-540032.3
Ref. 4Toggle Clamp With Square-Base (F12265)SW-F12265SWK28-541012.4
Ref. 5Toggle Clamp With Square-Base (F304-EM)SW-F304-EMSWK28-541022.3
Ref. 6Toggle Clamp With Square-Base (F203FL)SW-F203PLSWK28-541032.4
Ref. Product Name Specification (mm) Product Code Ref. Weight (kg) Description
Ref. 1Toggle Clamp With Round-Base (Y12132)SW-Y12132SWK22-54001-
Ref. 2Toggle Clamp With Round-Base (Y304-CM)SW-Y304-CMSWK22-54002-
Ref. 3Toggle Clamp With Round-Base (Y203FL)SW-Y203FLSWK22-54003-
Ref. 4Toggle Clamp With Square-Base (F12265)SW-F12265SWK22-54101-
Ref. 5Toggle Clamp With Square-Base (F304-EM)SW-F304-EMSWK22-54102-
Ref. 6Toggle Clamp With Square-Base (F203FL)SW-F203PLSWK22-54103-
Ref. Product Name Specification (mm) Product Code Ref. Weight (kg) Description
Ref. 1Toggle Clamp With Round-Base (Y12132)SW-Y12132SWK16-54001-
Ref. 2Toggle Clamp With Round-Base (Y304-CM)SW-Y304-CMSWK16-54002-
Ref. 3Toggle Clamp With Round-Base (Y203FL)SW-Y203FLSWK16-54003-
Ref. 4Toggle Clamp With Square-Base (Y12132)SW-Y12132SWK16-54101-
Ref. 5Toggle Clamp With Square-Base (F304-CM)SW-F304-CMSWK16-54102-
Ref. 6Toggle Clamp With Square-Base (F203FL)SW-F203PLSWK16-54103-
Clamp With Thread Bushing (With Plastic Handle)

Clamping with Thread Bushing

Material: High-quality Steel | Surface Finish: See Description
Recommended for confined spaces. The threaded bushing fits directly into D28 system holes for fast, high-force clamping with approximately 9 mm travel. Self-positioning support and pressure pads hold the workpiece securely.

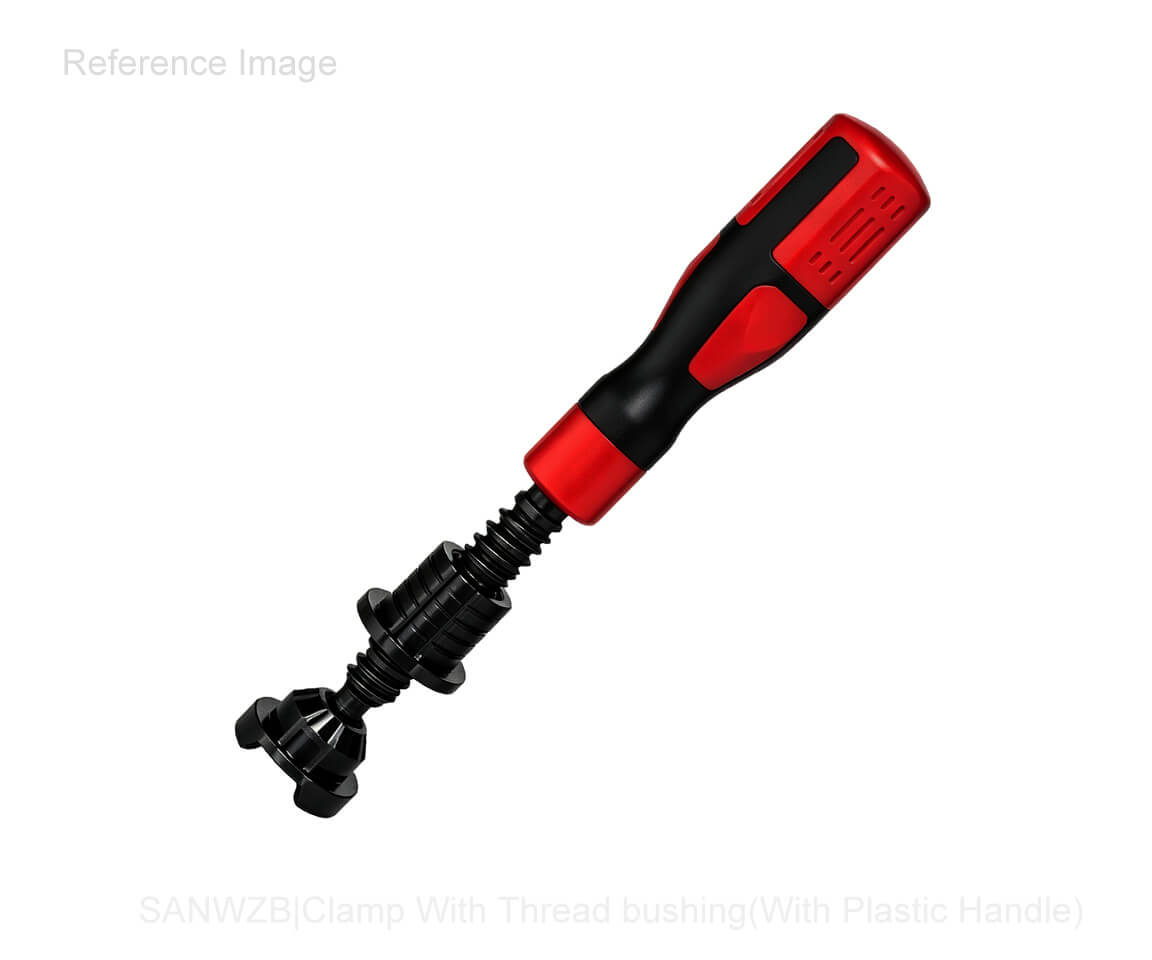

Clamp With Thread Bushing With Plastic Handle Ref.1
Ref. 1

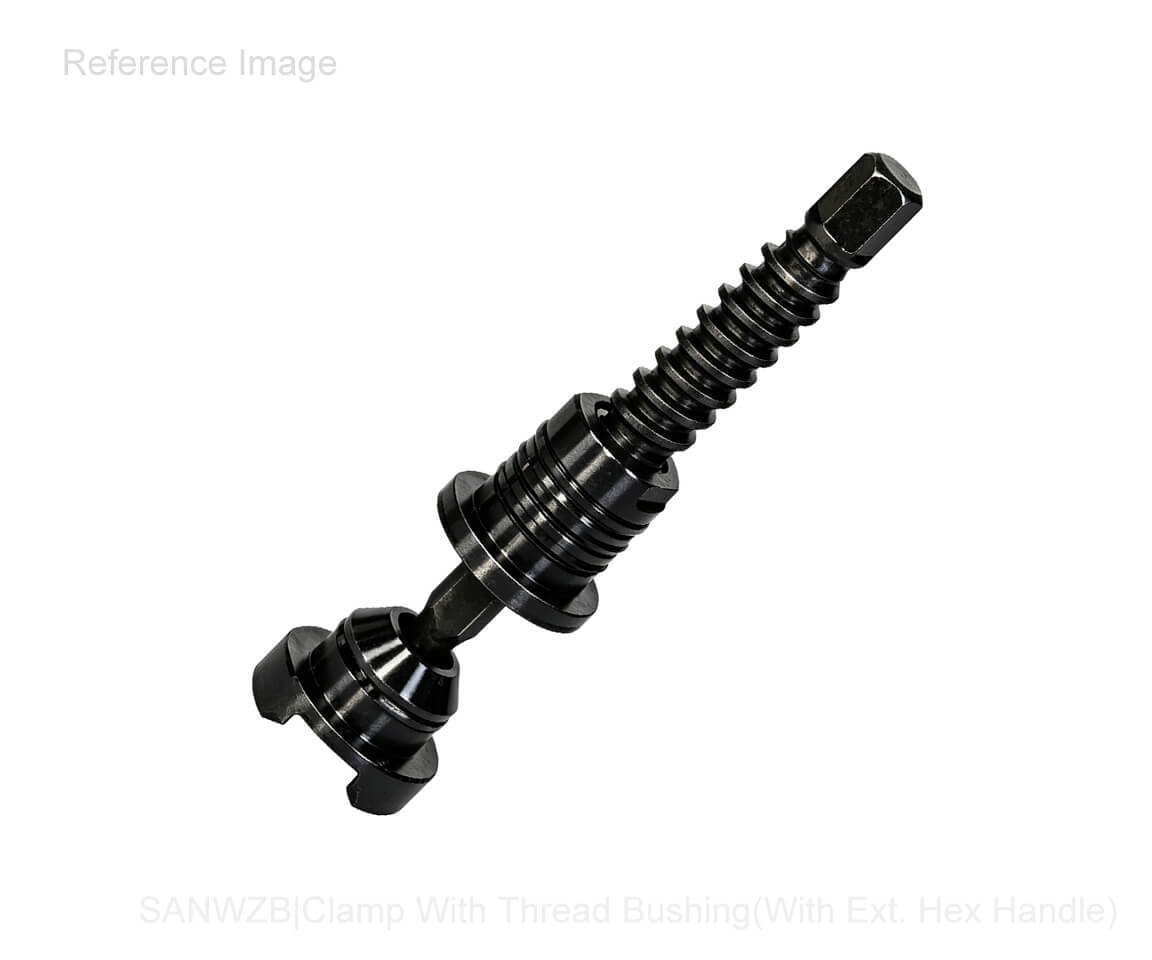

Clamp With Thread Bushing With Ext. Hex Handle Ref.2
Ref. 2

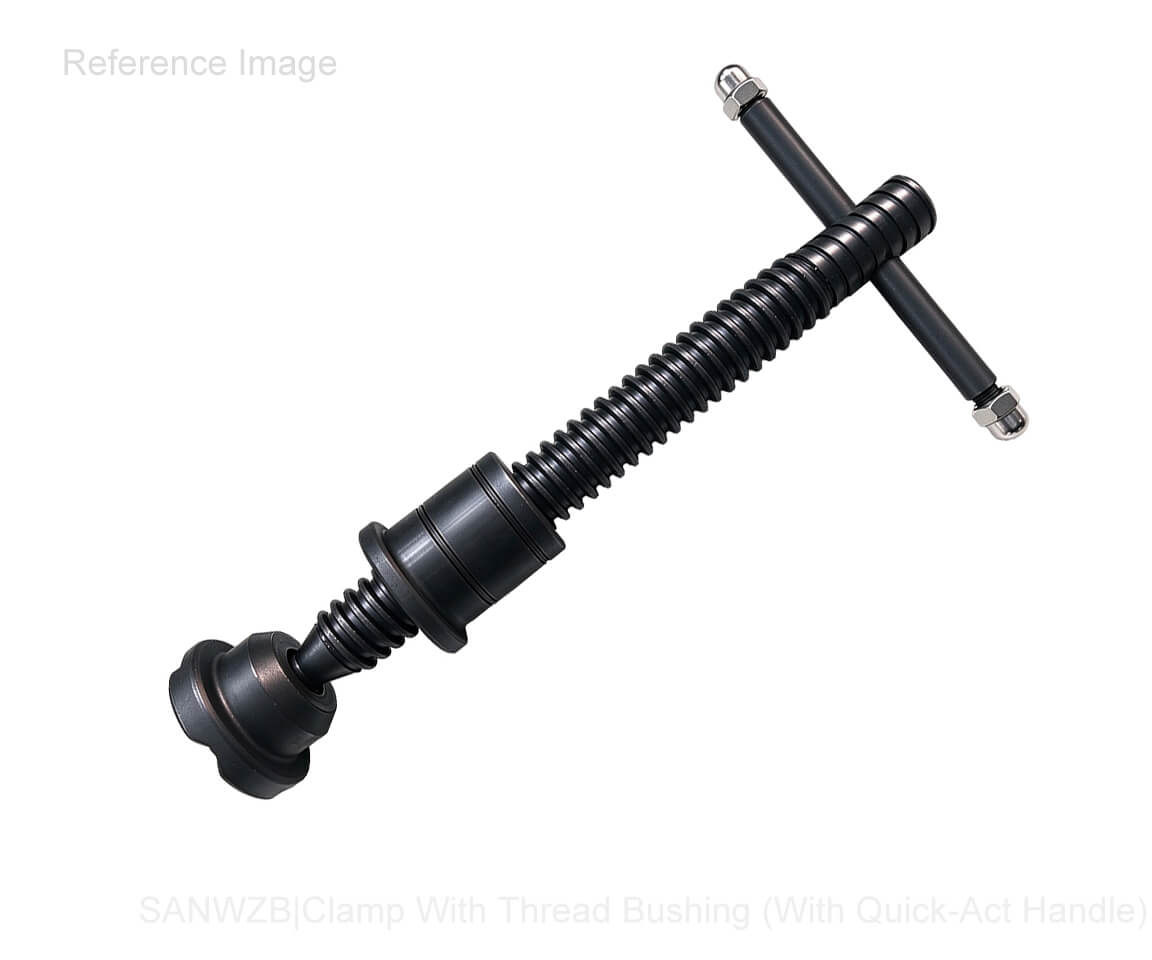

Clamp With Thread Bushing With Quick-Act Handle Ref.3
Ref. 3
Ref. Product Name Specification (mm) Product Code Ref. Weight (kg) Description
Ref. 1Clamp With Thread Bushing (With Plastic Handle)Φ40x250SWK28-550010.5
Ref. 2Clamp With Thread Bushing (With Ext. Hex Handle)Φ40x160SWK28-550020.36
Ref. 3Clamp With Thread Bushing (With Quick-Act Handle)Φ40x200SWK28-550030.45
Ref. 1Clamp With Thread Bushing (With Plastic Handle)Φ32x200SWK22-55001-
Ref. 2Clamp With Thread Bushing (With Ext. Hex Handle)Φ32x140SWK22-55002-
Ref. 3Clamp With Thread Bushing (With Quick-Act Handle)Φ32x170SWK22-55003-
Ref. 1Clamp With Thread Bushing (With Plastic Handle)Φ22x150SWK16-55001-
Ref. 2Clamp With Thread Bushing (With Ext. Hex Handle)Φ22x100SWK16-55002-
Ref. 3Clamp With Thread Bushing (With Quick-Act Handle)Φ22x120SWK16-55003-
2P Clamping Bridge

Clamping Bridge Extension Accessory · Not Standalone

Material: Aluminum Alloy | Surface Finish: See Description
An extension accessory for screw clamps, not for standalone use. Mounted on a screw clamp, it enables clamping at two or three points simultaneously. Contact pads are interchangeable (e.g. stainless steel).

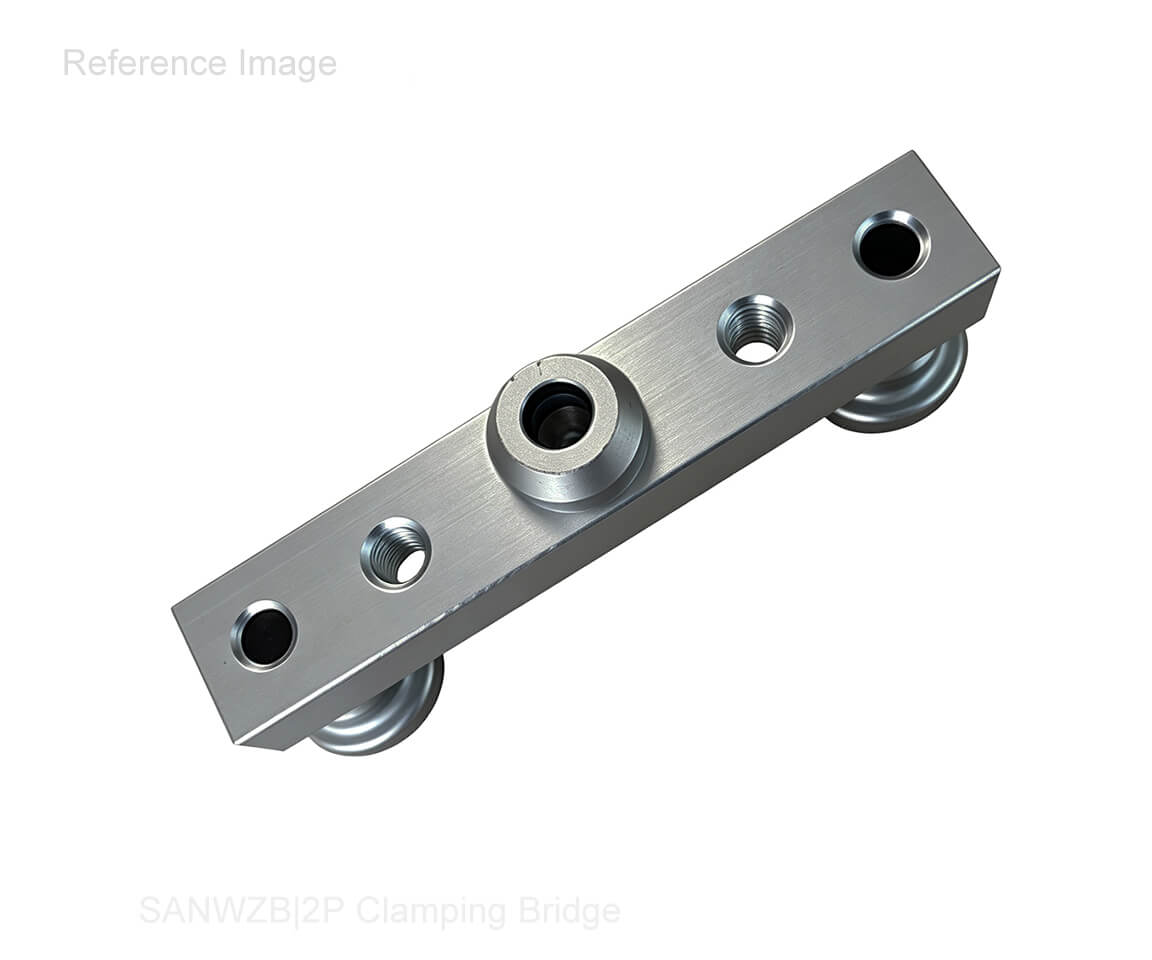

2P Clamping Bridge Ref.1
Ref. 1

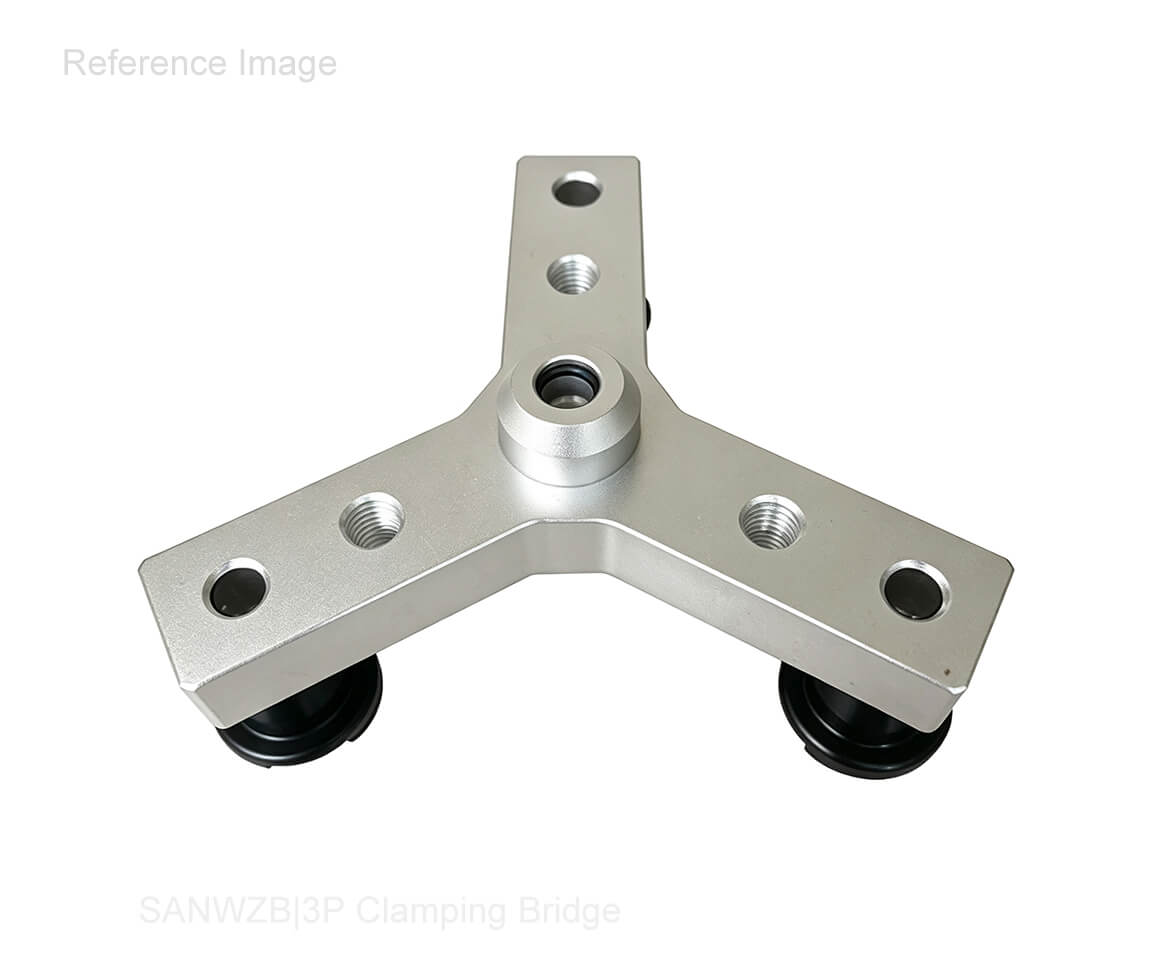

3P Clamping Bridge Ref.2
Ref. 2
Ref. Product Name Specification (mm) Product Code Ref. Weight (kg) Description
Ref. 12P Clamping Bridge170x35x20SWK28-610012.3
Ref. 23P Clamping Bridge170x35x20SWK28-611012.4
Ref. 12P Clamping Bridge170x35x20SWK22-61001-
Ref. 23P Clamping Bridge170x35x20SWK22-61101-
Ref. 12P Clamping Bridge110x20x12SWK16-61001-
Ref. 23P Clamping Bridge110x20x12SWK16-61101-
