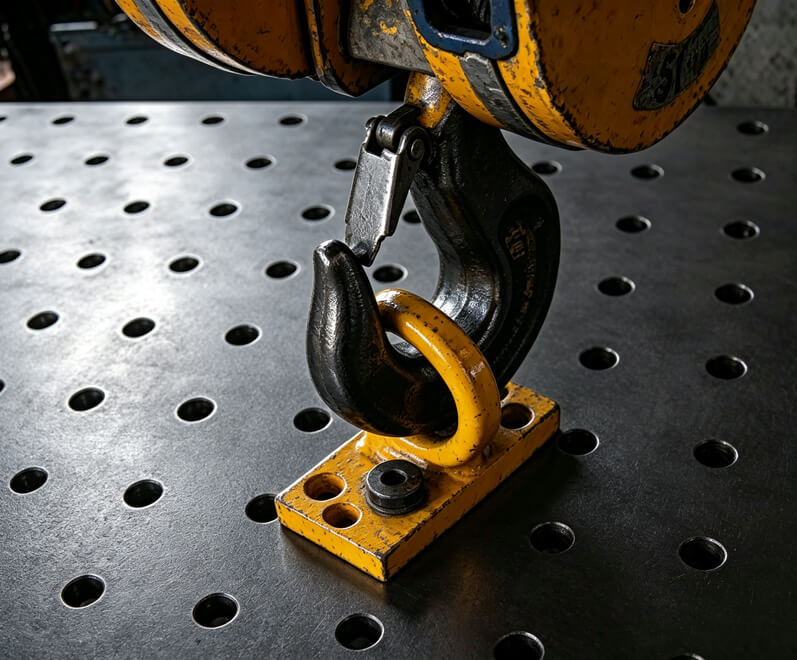

● For fast, easy and safe transportation of all heavy system components (e.g. worktable)
● Transport ring must be attached with at least 2x bolts!
● The transport ring must be fastened centrally on the worktop. When using two transport rings, these must be fastened centrally and symmetrically on the worktop. The maximum diagonal pull may not exceed 45° here (see warnings)
● Loads may only be applied to the transport ring in the ring plane! Do not exceed the load capacity!
● The general regulations for means of transport have to be observed when using the transport ring!
● Only undamaged Transport ring and PPC / PC-bolts may be used!
● Internal operating instructions must be observed!
● Observe the warnings on the transport ring!
● Countersunk head bolts may not be used!
● Do not allow personnel to stand underneath suspended lots.
|

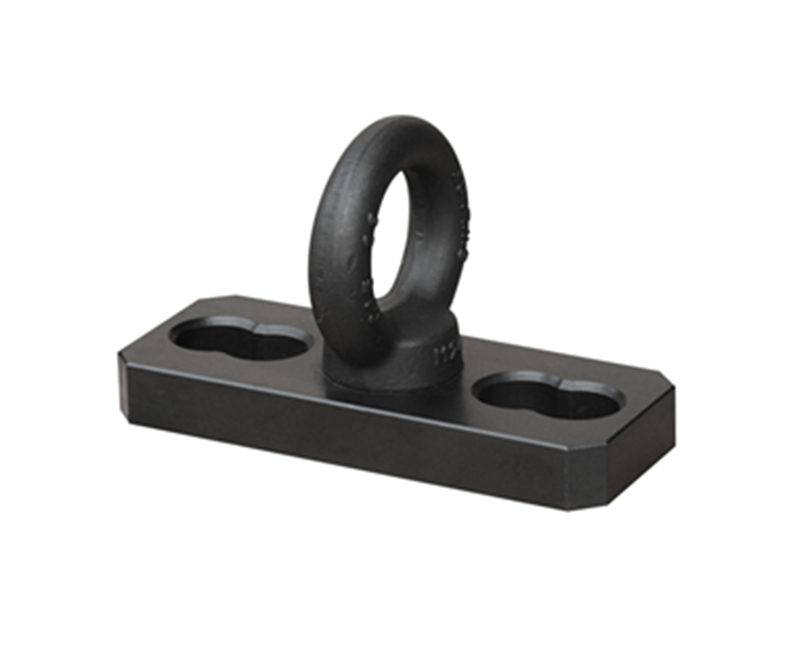

Description | Spec. | Products Code |
|
D28 Transport ring | 190x60x140 | SWK28-60001 |
|
D22 Transport ring | 190x60x140 | SWK22-60001 |
|
D16 Transport ring | 140x140x100 | SWK16-60001 |
