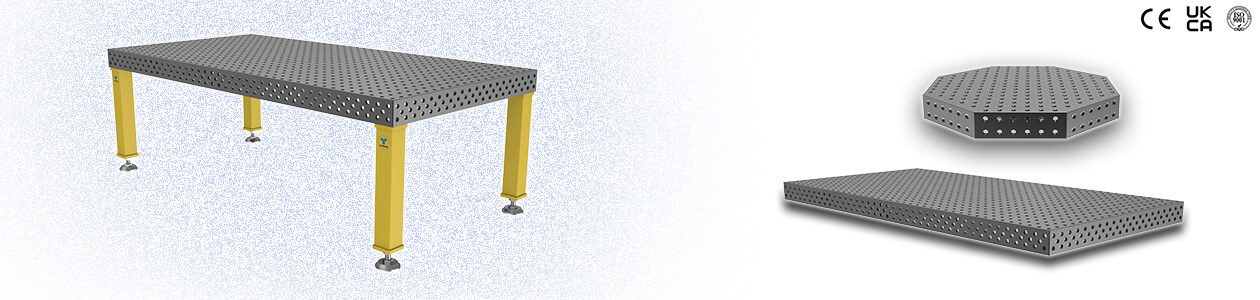

■ Tabletops Welding tables come in a variety of sizes to suit your unique fabrication needs. The five face design of the table using 12 mm thick plates and reinforcements underneath creates an extremely rigid table surface. A plasma nitride finish comes standard on all tables for a work surface extremely resistant to wear, deformation, corrosion, and weld spatter. ■ The hardness of the table We provide multiple supply status of our products,Adapt to the choices of the different users. General supply status (tables without nitriding treatment), comprehensive hardness HV280-320, The plasma nitriding tables has a comprehensive hardness of HV320-350, and the metallographic hardness of the hardened layer can reach up to HV760. Nitriding depth 0.25-0.35 mm, prevent welding splashing. |
  |
  |
||||

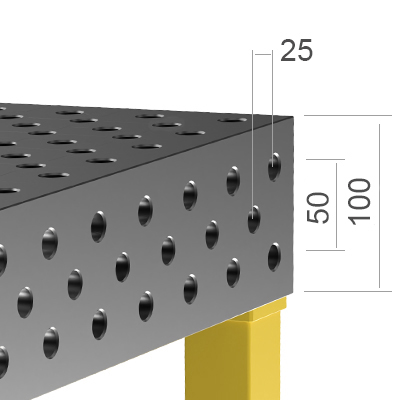

Standard grid 50 x 50 mm 3D Welding table(B) 3-row bore pattern on the table side plates, 50 mm grid in the top, middle and bottom row |

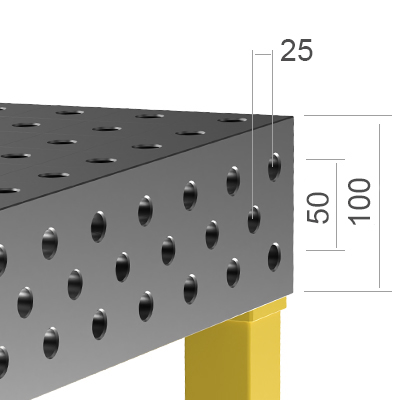

Diagonal grid 50 × 50 mm 3D Welding table(X) 3-row bore pattern on the table side plates, 50 mm grid in the top, middle and bottom row |
| Quadrilateral table Kindly reminder: 2D simple table is suitable for installing Round legs |
 |
 |
||||||
3D Welding table |
2D Welding table |
| Octagonal Table Positive octagon table Custom sized plates for applications such as positioner or turntable use can be manufactured on request. |
 |
 |
||||||
| 3D Octagonal Table |
2D Octagonal Table |
