D28-2D Octagonal Table (B)

>D22 >D16

< >

Product Parameters

Description:D28-2D Octagonal Welding Table,Standard grid 100x100mm

• Material:Q355B

• Surface and Hardness:

① Painting(Non-working surface) ② Blackening(Phosphating) ①②Overall Hardness HV 280-320③ Nitriding(Plasma):The comprehensive hardness HV280-320, Metallographic hardening layer hardness ＞HV450.Nitriding depth 0.25-0.35 mm,prevent welding splashing.

• Tolerance parameters

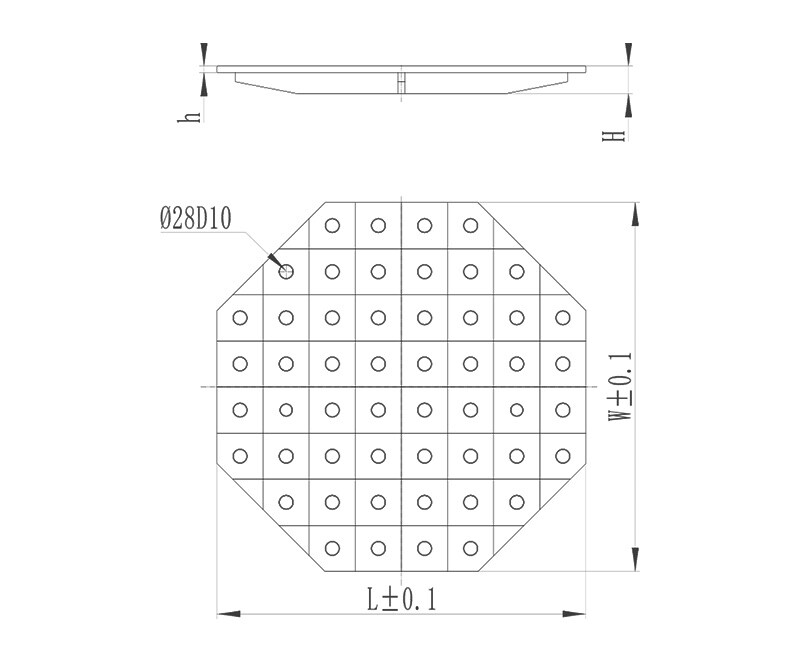

□ L^±0.1 x W^±0.1 x 200^±0.1(mm) ○ Hole: ∅28D10(+0.149/+0.065) □ Flatness: 0.1mm/m²

∥ Parallelism: 0.1/1000 (mm) ≒ Finished plate thickness:h=24-25 (mm)

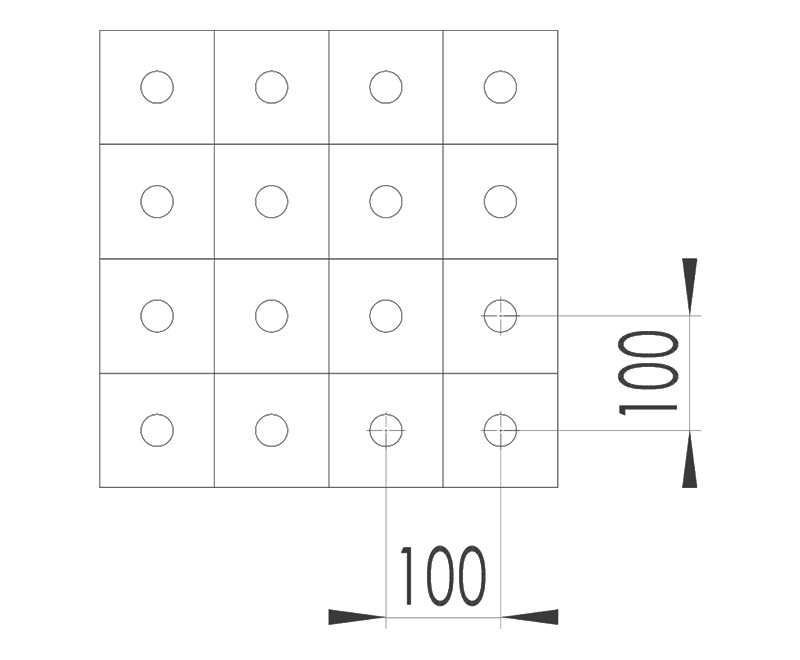

• Worktop with D28 system bores in a 100 x 100 mm grid.

• There are universal mounting holes on the back of the table,Through the conversion of the flange plate, you can adapt to the different installation mechanism.

• SANWZB logo recessed in the upper surface of the table.

※ The measurement unit is based on metric system, imperial system is available on request.

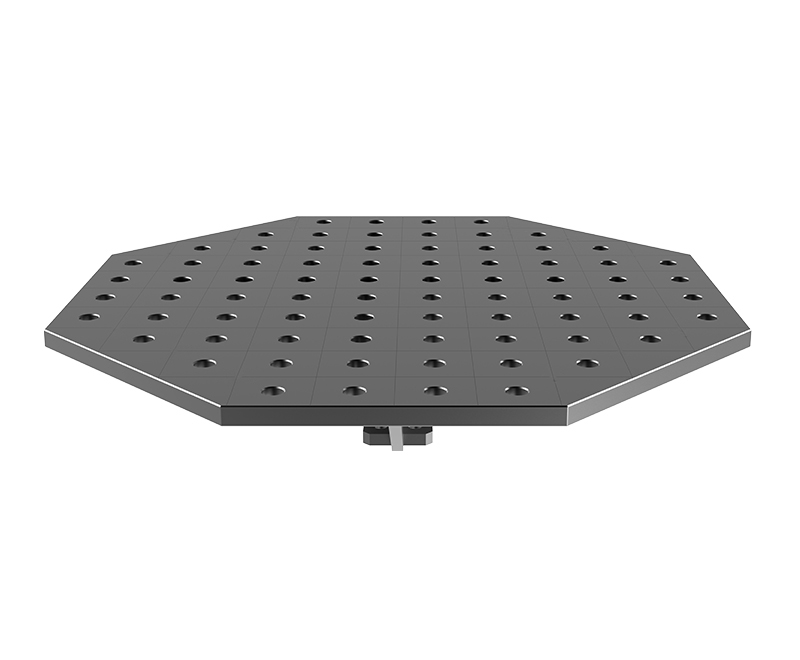

＞＞ 3D Table

● Commonly used Specifications and Sizes:

No.	Product Description	OD(LxWxH) mm	Order Code (Painting)	Order Code (Blackening)	Order Code (Nitriding)	Weight（kg）
1	D28-2D Octagonal Welding Table	800x800x150	SWK28-14001-B0	SWK28-14001-B1	SWK28-14001-B2	224.0
2	D28-2D Octagonal Welding Table	1100x1100x150	SWK28-14002-B0	SWK28-14002-B1	SWK28-14002-B2	310.0
3	D28-2D Octagonal Welding Table	1400x1400x160	SWK28-14003-B0	SWK28-14003-B1	SWK28-14003-B2	392.0
4	D28-2D Octagonal Welding Table	1700x1700x180	SWK28-14004-B0	SWK28-14004-B1	SWK28-14004-B2	622.0
5	D28-2D Octagonal Welding Table	2000x2000x200	SWK28-14005-B0	SWK28-14005-B1	SWK28-14005-B2	965.0
