D22-3D Octagonal Table（X）

>D28 >D16

< >

Product Parameters

Description:D22-3D Octagonal Welding Table, Diagonal grid 100x100mm

• Material:Q355B

• Surface and Hardness:

① Painting(Non-working surface) ② Blackening(Phosphating) ①②Overall Hardness HV 280-320③ Nitriding(Plasma):The comprehensive hardness HV280-320, Metallographic hardening layer hardness ＞HV450.Nitriding depth 0.25-0.35 mm,prevent welding splashing.

• Tolerance parameters

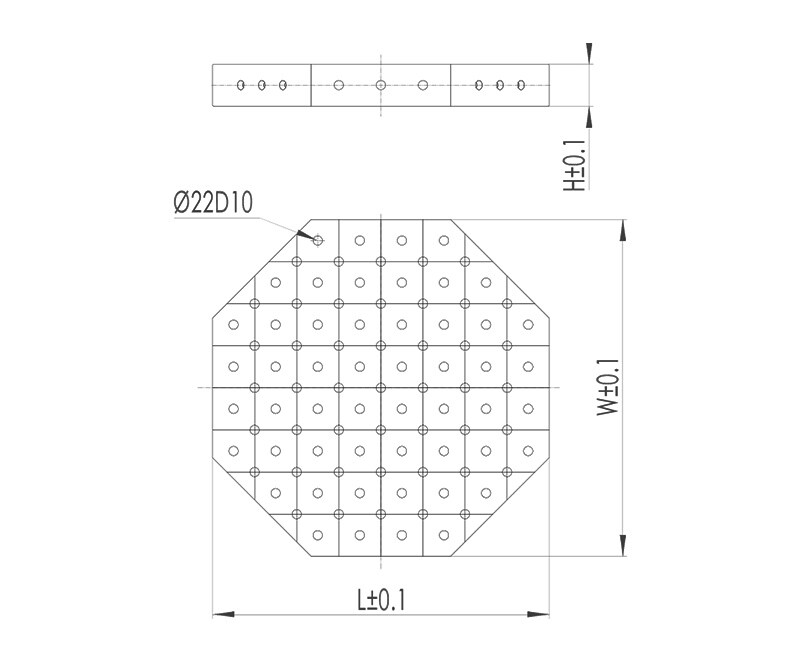

□ L^±0.1 x W^±0.1 x 100^±0.1(mm) ○ Hole: ∅22D10(+0.149/+0.065) □ Flatness: 0.1mm/m²

∥ Parallelism: 0.1/1000 (mm) ⊥ Verticality: 0.1/200 (mm) ≒ Finished plate thickness:18-18.5 (mm)

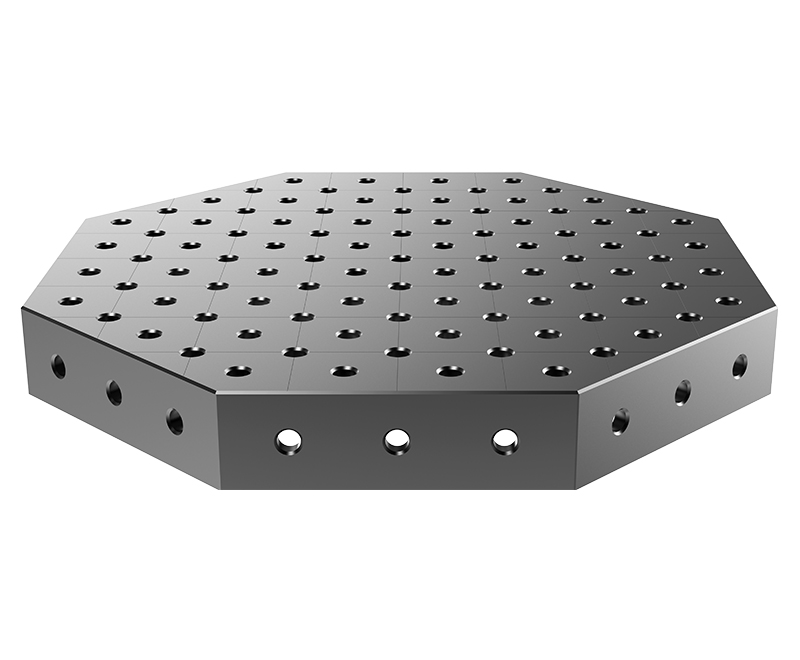

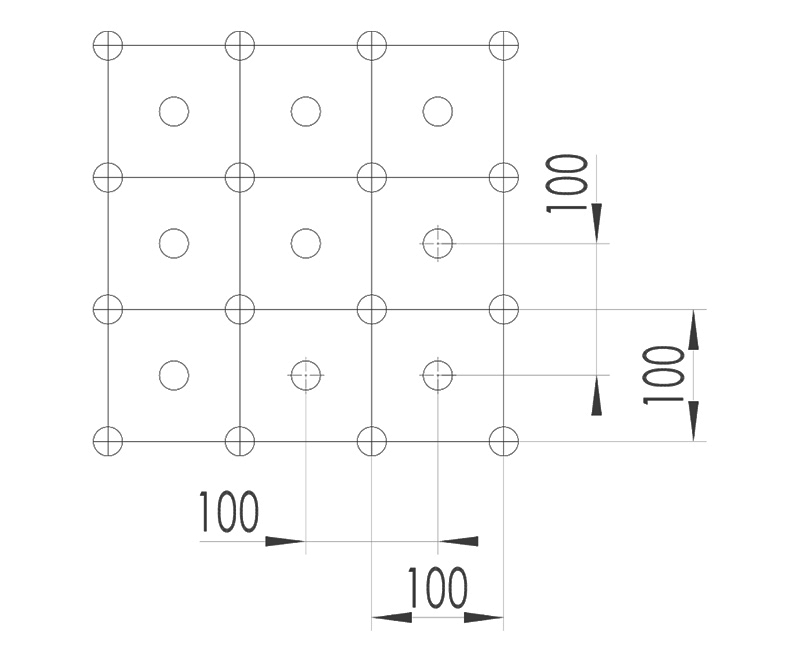

• Worktop with D22 system bores in a double 100 x 100 mm grid(Diagonal grid 100x100mm).

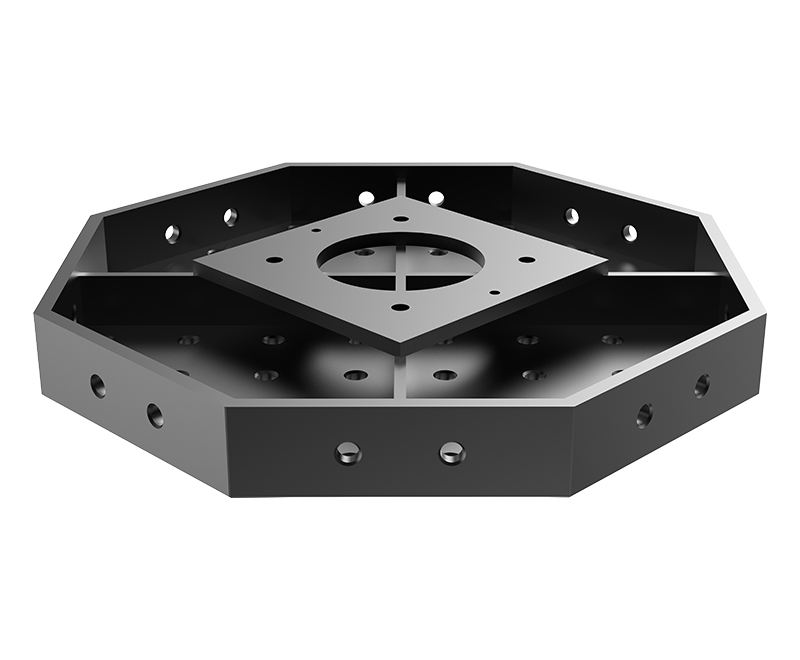

• There are universal mounting holes on the back of the table,Through the conversion of the flange plate, you can adapt to the different installation mechanism.

• SANWZB logo recessed in the upper surface of the table.

※ The measurement unit is based on metric system, imperial system is available on request.

＞＞ 2D Table

● Commonly used Specifications and Sizes:

No.	Product Description	OD(LxWxH) mm	Order Code (Anti-rust)	Order Code (Blackening)	Order Code (Nitriding)	Weight（kg）
1	D22-3D Octagonal Welding Table	600x600x100	SWK22-12001-B0	SWK22-12001-B1	SWK22-12001-B2	129.0
2	D22-3D Octagonal Welding Table	800x800x100	SWK22-12002-B0	SWK22-12002-B1	SWK22-12002-B2	155.0
3	D22-3D Octagonal Welding Table	1000x1000x100	SWK22-12003-B0	SWK22-12003-B1	SWK22-12003-B2	226.0
4	D22-3D Octagonal Welding Table	1200x1200x100	SWK22-12004-B0	SWK22-12004-B1	SWK22-12004-B2	324.0
