For Medium‑Duty & Light‑to‑Medium Fabrication
Our welding tables support multiple mounting configurations, paired with a full lineup of clamping fixtures and accessories. Features include hardened working surfaces, precision‑etched scales and smooth rounded‑edge finishing to boost performance and operational safety.
|

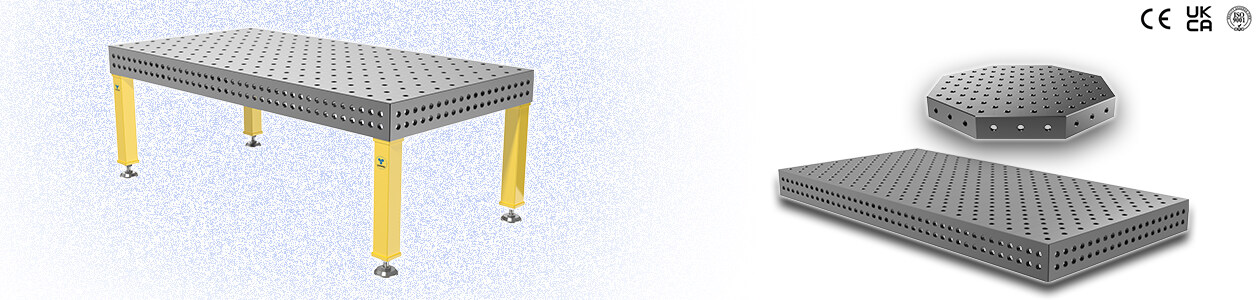

3D Welding Tables
> 3D Standard Grid Tables
> 3D Diagonal Grid Tables
> 2D Welding Tables
> Plate Table & Adapter Plate
> Octagonal Tables
> Installation & Maintenance
D22 Series Advantages
● 22‑mm hole system with lower purchase cost.
● Optimised for medium‑duty fabrications.
● Balanced clamping force for medium‑duty workpieces.
● Reinforced under‑structure, stable rigidity.
● Compatible with full set of D22‑series modular fixtures.
Need Help Selecting?
Our technical team can assist with table sizing, load capacity, custom multi‑table layouts, and fixturing recommendations. |

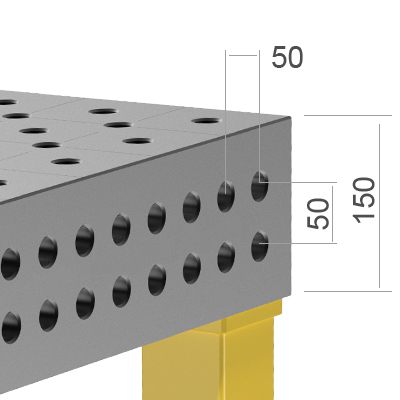

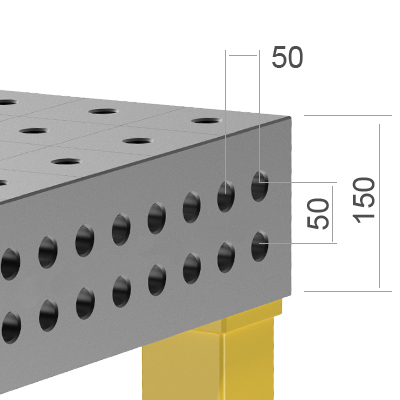

Our square welding tables come in widths of 500‑2000 mm and lengths of 500‑4500 mm. Octagonal welding tables feature an across‑flat dimension of 800‑2000 mm. Key Relevant DimensionsSystem Hole‑Grid & Table R‑Corner DetailsIllustrations of standard hole‑grid patterns and table R‑corner machining features.
◇ Default material: Q355B(S355JR). Hardened tool steel shall be adopted for extra‑high hardness requirements.
◇ The welding table surface is nitrided per technical specification, with maximum surface hardness HV760 (≈HRC62). ◇ Metric dimensions are standard. Custom specifications including imperial sizes are available upon request. |
