D16-3D Steel Welding Table (B2)

>D28>D22
  • D16-3D Steel Welding Table (B2)
  • D16-3D Steel Welding Table (B2)
  • D16-3D Steel Welding Table (B2)
Product Parameters

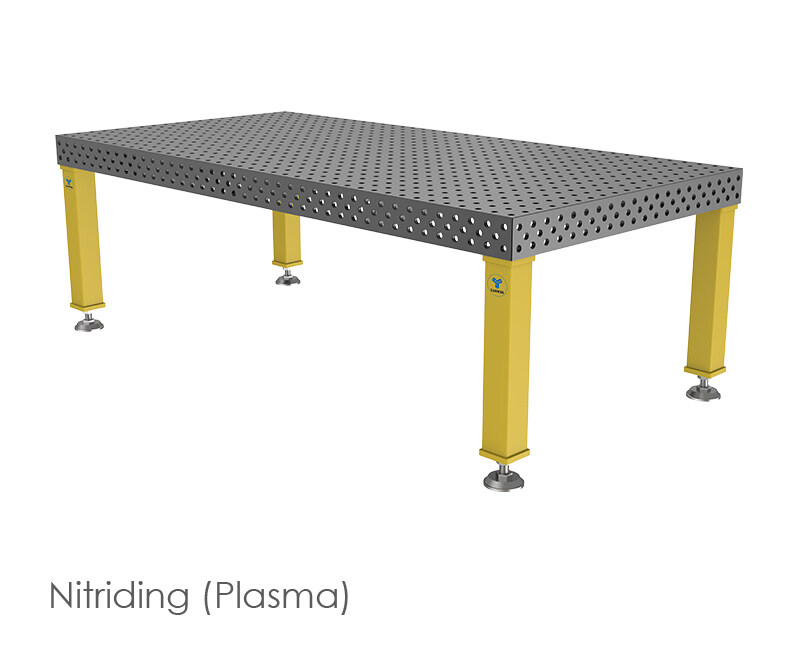

Description:D16-3Steel Welding Table with Nitriding, Standard grid  50x50mm

Material: Q355B

Surface: Nitriding (Dark grey or Black)

• Hardness: The comprehensive hardness HV280-320, Metallographic hardening layer hardness >HV450, Nitriding depth 0.25-0.35 mm, prevent welding splashing.

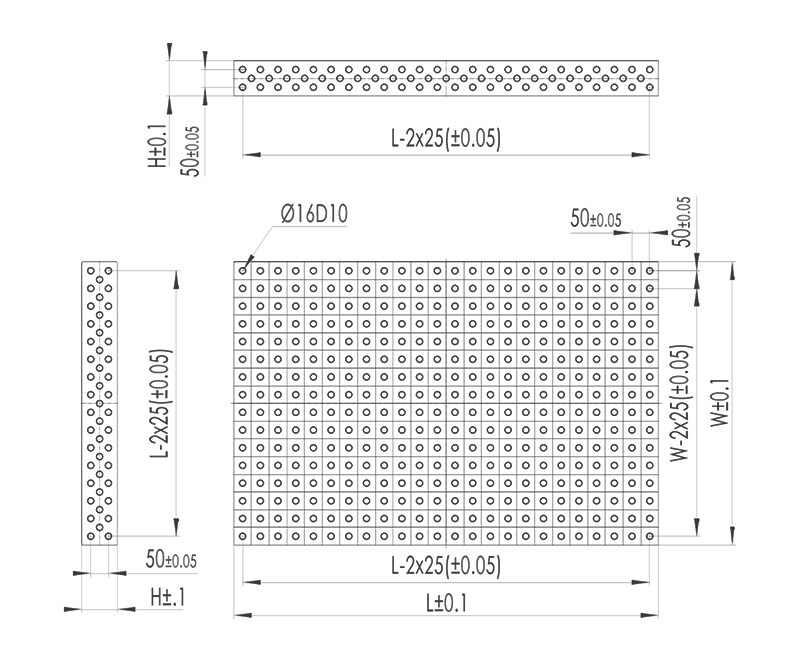

• Tolerance parameters

  □ L±0.1 x W±0.1 x H±0.1 (mm)            Hole: ∅16D10(+0.120/+0.050)         Flatness: 0.2mm/m2

  ∥ Parallelism:  0.1/1000 (mm)      ⊥ Verticality: 0.1/200 (mm)              Finished plate thickness:h=12-12.5 (mm)

• Worktop with D16 system bores in a 50 x 50 mm grid, The 4 sides of the table adopt a 3-row hole layout.

• All system bores with protective countersink, perfect design and ultimate functionality.

• Improved table reinforcement through additional cross-ribs.

• Coordinate marking of the bores in the X and Y-direction,2 side plates are labeled with SANWZB logo.

The measurement unit is based on Metric system, Imperial system is available on request.

>> 2D Table


 Diagonal Grid table

Painting

|

Blackening


Nitriding


Superhard Nitriding

|

Plating



 SUS304 table

|

Casting table

● Commonly used Specifications and Sizes:

No.

OD(LxWxH)

Order Code

Product Description

Weightkg

Leg QTY

1
