SANWZB Welding Tables come with a wide range of mounting options to suit every workspace.

Legs are orderedindividually and the quantity required will vary depending on table size.

SANWZB Table Legs

From the fine-Adjustable standard foot to the mobile Heavy-duty foot to the continuously variable Scissor lift for components weighing up to 6 tons,

A variety of table feet is available for the different table systems to meet the needs of every application. This ensures you have the greatest possible freedom in production.

● Support Leg Type

Table Support Leg Type

① Universal Support Leg

② Telescoping Support Legs

③ Holding Frame

④ Leg for spacer block

⑤ Scissor Lift

① Universal Support Leg: Efficient work is guaranteed! From the fine-adjustable standard foot to the mobile heavy-duty foot.

	Standard Square Leg	Standard Fixable Square Leg	Square Leg with brake caster	Standard Round Leg	Standard Fixable Round Leg	Round Leg with brake caster

② Telescoping Support Legs: According to different application scenarios, adjust different heights and choose different foot pad

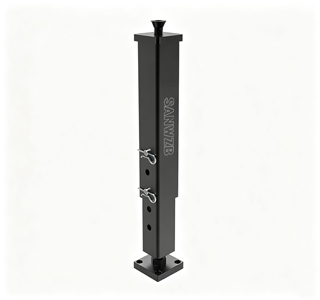

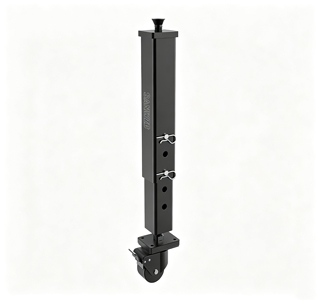

	Standard Telescoping Square Leg	Fixable Telescoping Square Leg	Telescoping Square Leg with brake caster

③ Holding Frame: Incombination with pivoting leg or in lengthwise and crosswise direction on the support and foundation track.		④ Leg for spacer block: Connecting elements between spacer block U-form or 3D worktable and support and base rail.

	Standard pad and fixable pad are selected according to the user's usage scenario

⑤ Scissor Lift: Continuously variable height adjustment, ith safety shutdown board, including hand control		Opoptional pad for supporting legs (or frame support)
		Adjustable foot pad Fixed foot pad Brake universal wheel
	(Pictures for reference only) Scissor Lift welding table

● Support Leg Height

Product specification and size labeling：□ □ □ x □ □ □ + □ □

（For example: □ 80 x 400 + 50 means 80x80 square tube 400mm long support legs）

◆ Foot pad height for standard and fixable support legs: 50 (mm)

◆ Caster height with brake universal caster support leg: 150 (mm)

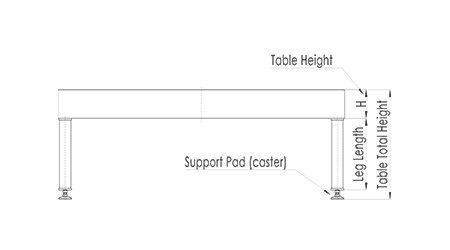

To calculate the support leg height, it is first important to know the total height after the table has installed the support leg:

① Standard and fixable support legs: support leg height = Total table height - Table height - Foot pad height

② Universal wheel support leg with brake: support leg height = Total table height - Table height - Universal wheel height with brake
For instance:

① Standard and fixable support legs: If the total height of the D28 3D table is 750 mm, then the support leg height = 750 - 200 - 50 = 500 (mm)

Product Selection: Name: Standard Square Leg Products Code: SWK28-71004-B0 Specification: □ 80×500+50

② Support leg with brakes: If the total height of the D28 3D table is 750 mm, then the support leg height = 750 - 200 -150 = 400 (mm)

Product details

Universal Square Legs

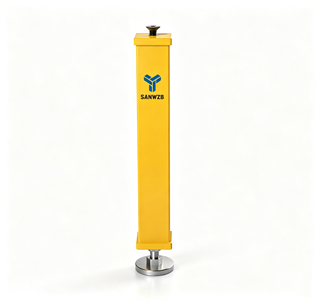

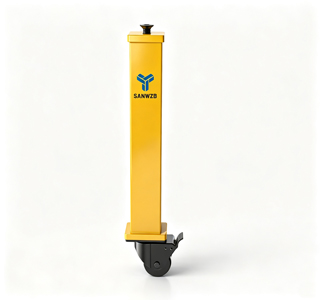

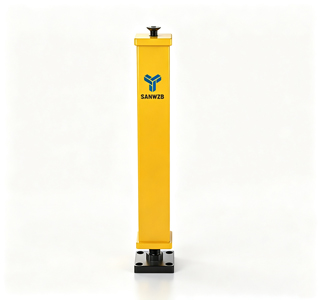

Standard Square Leg	Fixable Standard Square Leg	Square Leg with brake caster	Foot pad for replacement reference figure
Pivoting feet ± 30 mm fine adjustable, foot sleeve protects threaded spindle against dirt Suitable for full series (D28/D22/D16)	For firm attachment to the hall floor against tension, pressure and shifting (e.g. robot use) Suitable for full series (D28/D22/D16)	Robust version, with 360° caster, max. load capacity 600 kg, wheel with and without brake Suitable for full series (D28/D22/D16)

Square Telescoping Legs

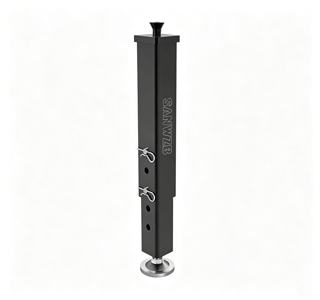

Standard Square Telescoping Leg	Fixable Standard Square Telescoping Leg	Square Telescoping Leg with brake caster	Foot pad for replacement reference figure
Pivoting feet ± 30 mm fine adjustable, foot sleeve protects threaded spindle against dirt Suitable for full series (D28/D22/D16)	For firm attachment to the hall floor against tension, pressure and shifting (e.g. robot use) Suitable for full series (D28/D22/D16)	Robust version, with 360° caster, max. load capacity 600 kg, wheel with and without brake Suitable for full series (D28/D22/D16)

Round Legs


Standard Round Leg	Fixable Standard Round Leg	Round Leg with brake caster	Foot pad for replacement reference figure
Pivoting feet ± 30 mm fine adjustable, foot sleeve protects threaded spindle against dirt. (Mainly used for 2D simple table)	For firm attachment to the hall floor against tension, pressure and shifting (e.g. robot use) (Mainly used for 2D simple table)	Robust version, with 360° caster, max. load capacity 600 kg, wheel with and without brake. (Mainly used for 2D simple table)

Holding Frame

Mainly used for D28 welding table,Large desktop size D16 welding table can also be selected.

More welding tables splicing, and, the desktop height is relatively low splicing is more suitable for selection.

● Exact positioning of 3D worktables in lengthwise and crosswise direction on the support and base rail is possible

● Very stable version for extremely high loads

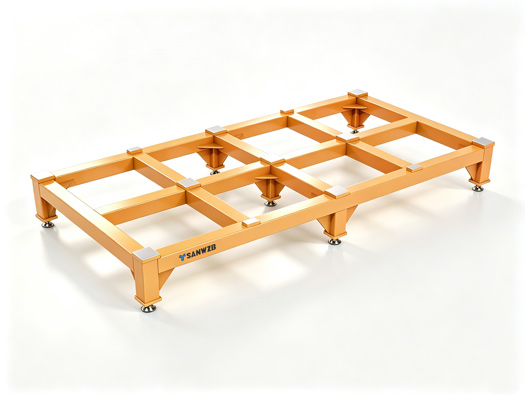

	Holding Frame		Reference style (double layer)
	In combination with pivoting leg or in lengthwise and crosswise direction on the support and foundation track		Personalized design and manufacturing according to the height requirements of the table

Scissor Lift

Mainly used for D28 welding table,Large desktop size D16 welding table can also be selected.

More welding tables splicing, and, the desktop height is relatively low splicing is more suitable for selection.

● Continuously variable height adjustment

● With safety shutdown board

● Fully adapted to 3D worktable

● Including hand control

● Power unit internal / external (depending on size)

● Mounting kit is not included in the scope of delivery


	Scissor Lift		Scissor Lift(for reference)
	Continuously variable height adjustment, ith safety shutdown board, including hand control；Not purchased separately, provided with welding workbench.		No welding table configuration,As required for other workstations,Can be purchased separately.
